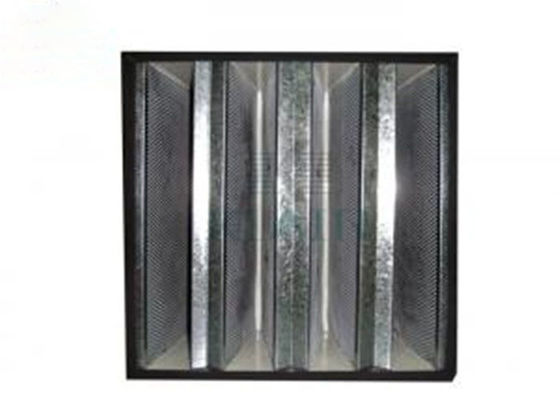

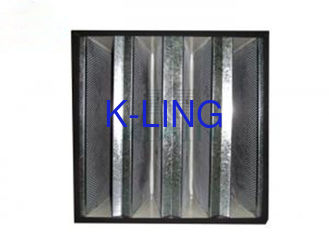

V Bank Activated Carbon Filter High Capacity Carbon Odor Filter Class 2

V Bank Activated Carbon Filter , High Capacity Carbon Odor Filter Class 2

Description:

The Carbon activated carbon filter is use to remove airborne gaseous contaminant specific to medical, pharmaceutical molecular contaminant must be controlled to an acceptable thershold level.

The charcoal filter may be installed in any HVAC application where the use of outside air for contaminant dilution is prohibitive or for the removal or reduction of occupancy odors and volatile organic compounds.

The charcoal filter offers an excellent opportunity to minimize outdoor air and thereby reduce energy costs.

Detail:

Media: Activated carbon granules imbedded between two perforated grids.
Construction: Galvanized steel or Plastic
Average arrestance: 90% on 5 microns
Recommended final pressure drop:400 Pa
Humidity resistance: 100%
Max Temperature: 100 ℃
DIN 53438 Flammability: F1
UL 900 Standard : Class 2
Max.air flow rate: 125% of rated air flow
Media color available: black
Filter standard depth available 12 inch
Pull handle is availale upon request.

Performance:

Collection of solvent before recycling or evacuation to outside.
Purification of new air before introduction into the air circuit.
Economical, long-lasting, solution to many odor problems.

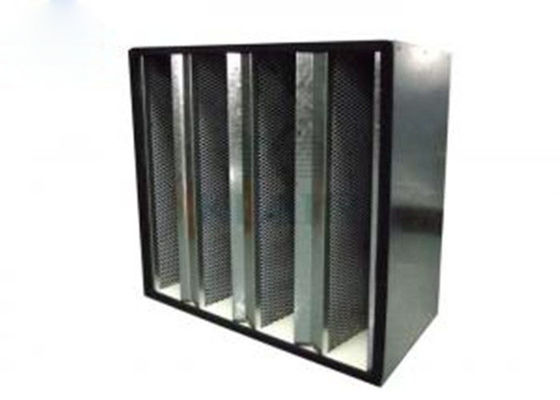

V-cells construction for high capacity filter of 292mm depth.
Easy to install.
Deodorization.
Panel filter contain a prefilter track.
Ideal solution for clean room recirculation and mini environment.

Parameter
