Product Details:
Payment & Shipping Terms:
|
| Material: | Stainless Steel | Efficiency: | H13 |
|---|---|---|---|
| Application: | Pharmaceutical Industry | Standard: | GMP |
| Air Speed: | 25m/s | Original: | China |
| High Light: | SS Air Shower Pass Box H13,SS Cleanroom Air Shower Booth,Pharmaceutical Industry Air Shower Booth |
||
Stainless Steel Material Air Shower Tunnel High Quality Clean Room Air Shower
Feature
1. HEPA filter/blower modules (rated 99.99% efficient @ 0.3 micron particles);
2. Solid-state microprocessor panel: programmable control over access door operation;
3. Electronic magnetic interlocking doors:
4. Energy-efficient LED light ;
5. White powder-coated or stainless steel finishes;
6. Variety of sizes and door configurations;
7. Economical to operate and easy to maintain;
8. Custom sizes and configurations: available;
Principle
The air inside of air shower is firstly filtered under the action of fan and enters into static pressure tank. After filtered with high-efficiency air filter, clean air is jet out at high speed from the nozzle of air shower. The nozzle angel is adjustable. It can effectively blow out dust attached on people and goods’surface. The blown dust enters into primary-efficiency air filter again, circulating so and reaching to the aim of air shower.
Air shower tunnel Parameter
| Quantity and specification | unit | remarks | ||
| Cabient | SUS304 stainless steel | |||
| Nozzles | 48-96 | pcs | ||
| Outlet air speed | ≥20 | m | ||
| Working time | 0—99 | S |
Adjustable
|
|
| Rated Voltage | 380 | V | 3 phase 4 wire | |
| Power | 2.25-10 KW | KW | 50Hz | |
| Hygienic standard | High efficiency | |||
| Noise | ≤65 | DB | ||
| External dimension | W*H 1700*2300 | Mm | ||
| Net size | W*H 800*1900 | Mm | ||
| Channel type | Seal type Tunnel type | |||
| Remarks |
Please inform us before the contract comes into effect.
|
|||

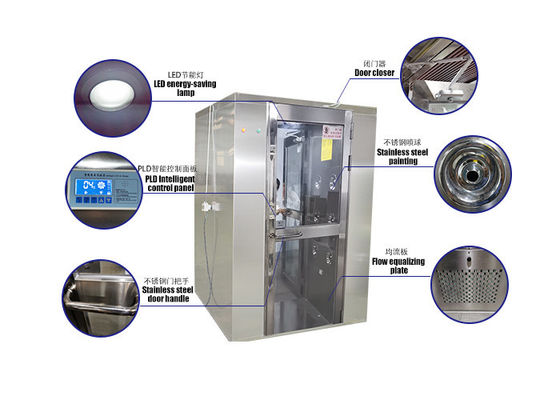

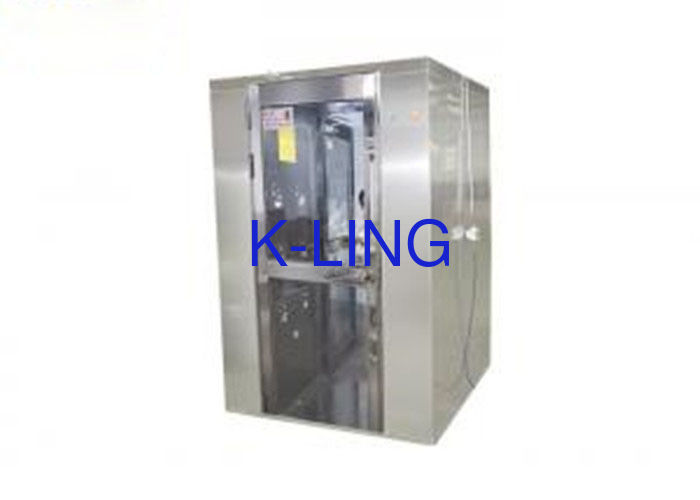

Air shower details photos
