| Color: | White | Feature: | Low Energy Cost |
|---|---|---|---|
| Type: | Bag Air Filter | Other Name: | Pocket Air Filter |
| Application: | HVAC System | Original: | China |
| High Light: | Plastic Frame White Pocket Air Filter,Non Woven Fabrics Pocket Air Filter,White Bag Clean Room Hepa Filter Box |
||

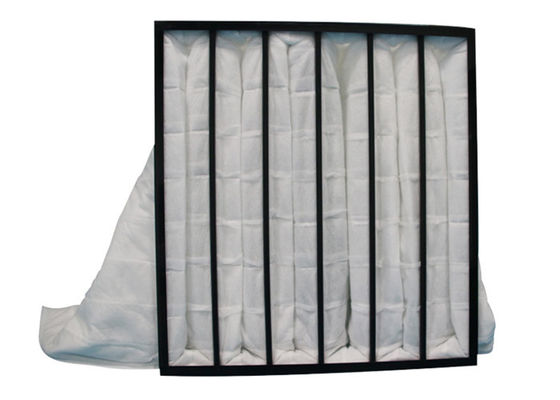

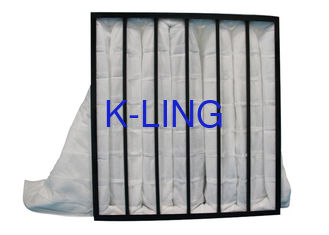

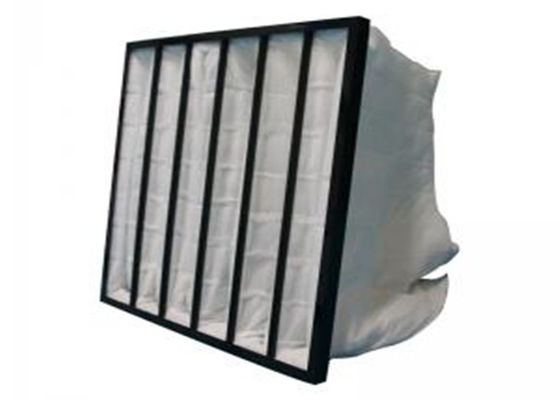

White Bag Pre Air Filter/ Pocket Air Filter Plastic Frame With Non Woven Fabrics Pockets
Description
The bag type pre filter adopts synthetic fiber with increasing density and toughness, adopts seamless sintering technology, has good air tightness and bonding strength, and does not cause air leakage or cracking when the wind pressure is high, and the inside of the bag. The unique support design ensures stable and optimal filtration; the filter itself is silicone-free and is especially suitable for use in paint shops.
| Media | non-woven fabrics / SALthetic fiber |
| Pocket-type | Sewing bag,Ultrasonic bag |
| Frame | Aluminum/Galvanized steel/Stainless steel/Plastic |
| Filter Efficiency(EN779) |
G4 F5:45%@0.5μm; F6:65%@0.5μm; F7:85%@0.5μm;F8:90%@0.5μm;F9:95%@0.5um |
| Max. Temperature | 80℃ |
| Max. Humidity | 100% |
Features:
1. Large amount of dust, high efficiency, small pressure drop can effectively remove fine dust (filtration efficiency of ≥5.0μm particles is 40%~60%) and microorganisms;
2, can be cleaned, long service life;
3, multi-bag type to meet the needs of different air volume;
4, with galvanized frame or aluminum frame.
3. Bag pre filter Standard Model Technology Parameter
- Large airflow
- High Dust Holding Capacity
- Can be washed repeatedly,long Operating life
- Sturdy construction
- Max. operating temperature: 150°c
| size(mm) | Media area | Effieicnecy | Air Flow | Resistance | |
| 592x592x600 | 8 | 6 | F6 | 3400 | 110pa |
| 490x592x600 | 6 | 4.5 | F6 | 2800 | 110pa |
| 287x592x600 | 4 | 3.1 | F6 | 1700 | 110pa |
| 490x490x600 | 6 | 3.8 | F6 | 2380 | 110pa |
| 592x592x600 | 8 | 6 | F7 | 3400 | 138pa |
| 490x592x600 | 6 | 4.5 | F7 | 2800 | 138pa |
| 287x592x600 | 4 | 3.1 | F7 | 1700 | 138pa |
| 490x490x600 | 6 | 3.8 | F7 | 2380 | 138pa |
| 592x592x600 | 8 | 6 | F8 | 3400 | 169pa |
| 490x592x600 | 6 | 4.5 | F8 | 2800 | 169pa |
| 287x592x600 | 4 | 3.1 | F8 | 1700 | 169pa |
| 490x490x600 | 6 | 3.8 | F8 | 2380 | 169pa |
