Stainless Steel Electric Lock Air Shower Cleanroom For Bio Pharmaceutical Plant
Features:
| Product type |
Stainless Steel Electric Lock Air Shower Cleanroom For Bio Pharmaceutical Plant
|
| Material for casing | 1.2mm cold rolled steel with powder coated /stainless steel (SUS#201 or SUS#304) |
| Material for doors | Stainless steel / aluminum alloy / powder coated steel |
| Nozzles | SUS#304 |
| Door leaf | Single leaf / double-leaf |
| Door type | Manual swing door/ Auto sliding door/ High speed shutter door |
| Blowing way | Top-side blowing, single-side blowing, two-side blowing or three-side blowing |
| Control system | English intelligent control panel with human voice (If client requrie control by PLC, it is also ok) |
| Locks | Electric mortise lock or Electric magnetic lock |
| HEPA filter efficinecy: | H13 / H14 |
| Pre filter | G3 / G4 |
| Light | Philipines brand |
| Photoelectric sensor | OMRON brand |
| Shower time | 0-99s adustable |
| Spurt wind speed | 22-25m/s above |
| Power supply | 380V/50HZ/3PH or 220V/50HZ/1PH |
| Safeguard | Leakage switch and thermal overload relay (Protect people from electric leakage) |
Air shower tunnel Parameter
| External dimensions (mm) | W2910xD2550xH2650mm |
| Internal dimensions mm | W2050xD2550xH2400mm |
| Doors | 4-leaf auto sliding doors |
| Door closer | NONE |
| Lock | NONE |
| Suitable | People and Materials |
| Nozzles | 18+18+24=60PCS(3-side blowing) |
| Blower fan | 6 pcs |
| Blow power(W) | 6200W |
| Weight(kg) | Appro.1200 |
| HEPA filter size | 610x610x90mm |
| HEPA filter qty | 6PCS |
| HEPA filter efficiency | H13 |
| Photolectric sensor | ORMON 3 PCS |
| Fluorescent Lamp | Philips 7x 18W |
| Nozzle diameter | 27mm |
| Air shower time | 0-99 s Adjustable |
| Spurt wind speed | 22-25m/s |
| Power Supply | AC380V/50Hz/3Ph |
| Control system | IC control panel, electric interlock, automatical blowing by photoelectric sensor |

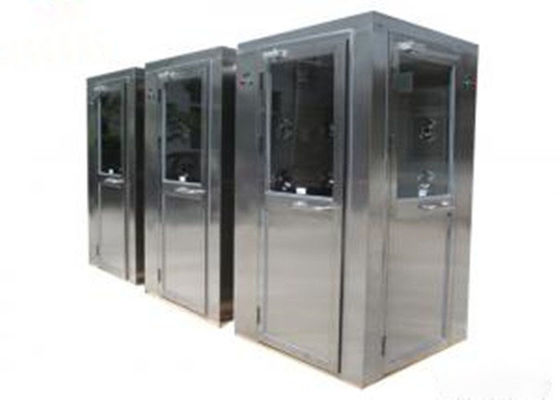

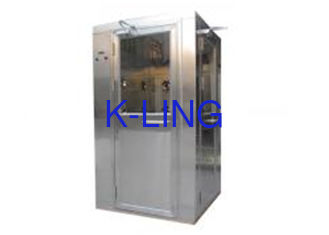

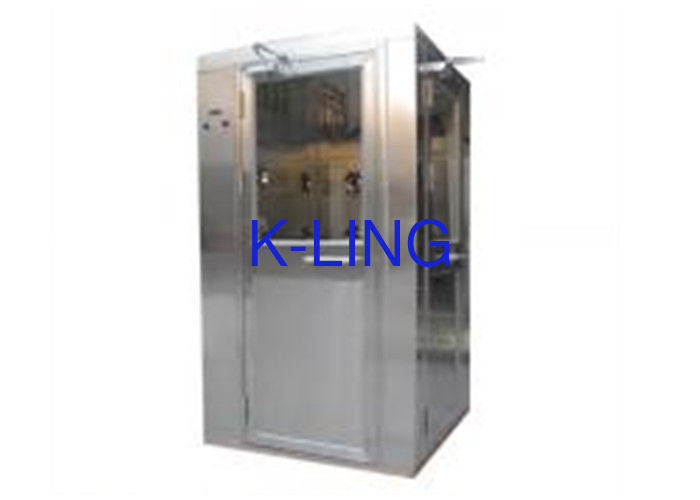

Air shower details photos
