Product Details:
Payment & Shipping Terms:
|
| Blowing: | Three Side Blowing | Efficiency: | H13 |
|---|---|---|---|
| Application: | Pharmaceutical Industry | Door: | Auto Sliding Door |
| Air Speed: | 25m/s | Original: | China |
| High Light: | 4 Leaf Cargo Air Shower Tunnel,Three Side Blowing Air Shower Tunnel,25m/s Speed Air Shower Tunnel |
||
Cargo Air Shower Tunnel With 4 Leaf Auto Sliding Doors Auto Blowing Air
Description:
Air Shower Tunnel have become an integral component of the modern cleanroom because their benefits more than pay for the small amount of space they occupy. With their interlocking doors and automatic cycling, air showers act as traffic guards, controlling passage into and out of the cleanroom.
After using it, the dust could effectively be reduced to enter the clean area and maintain the normal working status. This air shower tunnel of which automatic sliding door is convenient for people entering air shower room, as well to reduce the enter time.
Air Showers clean micro particles off personnel and equipment as they enter or exit a cleanroom.
Upon exit, cleanrooms are envelope sealed when the unit automatically switches into an airlock. They can also be used to remove hazardous contaminate from personnel when exiting facilities Not to be ignored is the psychological impact an air shower creates: Personnel are reminded with every passage that they are entering a controlled environment, while prospective clients are assured of your quality control standards when they enter your facility.
Air shower tunnel Parameter
| External dimensions (mm) | W2910xD2550xH2650mm |
| Internal dimensions mm | W2050xD2550xH2400mm |
| Doors | 4-leaf auto sliding doors |
| Door closer | NONE |
| Lock | NONE |
| Suitable | People and Materials |
| Nozzles | 18+18+24=60PCS(3-side blowing) |
| Blower fan | 6 pcs |
| Blow power(W) | 6200W |
| Weight(kg) | Appro.1200 |
| HEPA filter size | 610x610x90mm |
| HEPA filter qty | 6PCS |
| HEPA filter efficiency | H13 |
| Photolectric sensor | ORMON 3 PCS |
| Fluorescent Lamp | Philips 7x 18W |
| Nozzle diameter | 27mm |
| Air shower time | 0-99 s Adjustable |
| Spurt wind speed | 22-25m/s |
| Power Supply | AC380V/50Hz/3Ph |
| Control system | IC control panel, electric interlock, automatical blowing by photoelectric sensor |

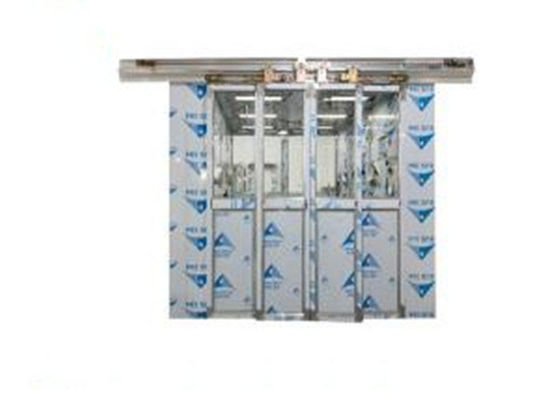

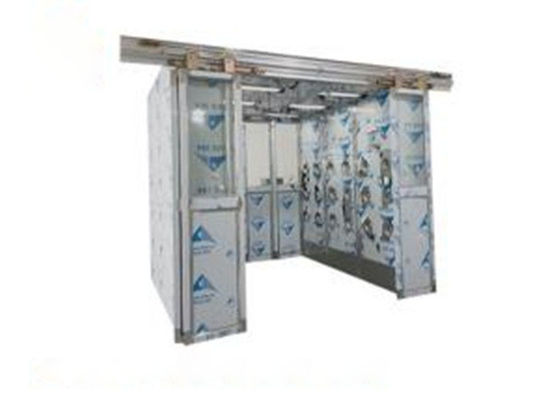

Air shower details photos
