| Door: | PVC Rollers Door | Speed: | 27m/s |
|---|---|---|---|
| Control: | Auto Remote Control | Certification: | CE |
| Original: | China | Warranty: | 1 Year |
| High Light: | Remote Control Air Shower Tunnel,27m/s speed Air Shower Tunnel,PVC rollers door Air Shower Tunnel |
||
Remote Control Clean Room Air Shower Tunnel With Fast Speed PVC Rollers Door
Air Shower Tunnel description
1. People walk from the non-clean area to the outdoor door of the air shower room
2. When reaching the induction zone, the door opens automatically.
3. When a person enters the air shower room, the door is closed automatically in a preset period.
4. At this time, the person passes through the infrared sensor and the fan in the air shower room starts to blow.
5. After blowing at the set time,
The inner door opens and the man walks out.
6. When a person walks out, the automatic door is closed according to the predetermined time.
and return to standby status
Roller door cargo shower room open mode optional:
1. Wireless remote control
2. Microwave Automatic Induction Switch
3. Non-contact induction switch
Air Shower Tunnel Parameter
| Quantity and specification | unit | remarks | ||
| Cabient | SUS304 stainless steel | |||
| Nozzles | 48-96 | pcs | ||
| Outlet air speed | ≥20 | m | ||
| Working time | 0—99 | S |
Adjustable
|
|
| Rated Voltage | 380 | V | 3 phase 4 wire | |
| Power | 2.25-10 KW | KW | 50Hz | |
| Hygienic standard | High efficiency | |||
| Noise | ≤65 | DB | ||
| External dimension | W*H 1700*2300 | Mm | ||
| Net size | W*H 800*1900 | Mm | ||
| Channel type | Seal type Tunnel type | |||
| Remarks |
Please inform us before the contract comes into effect.
|
|||

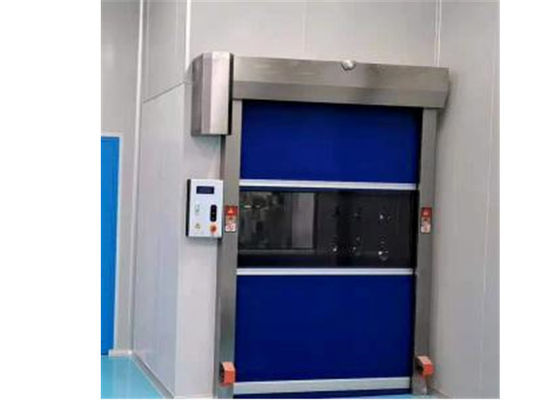

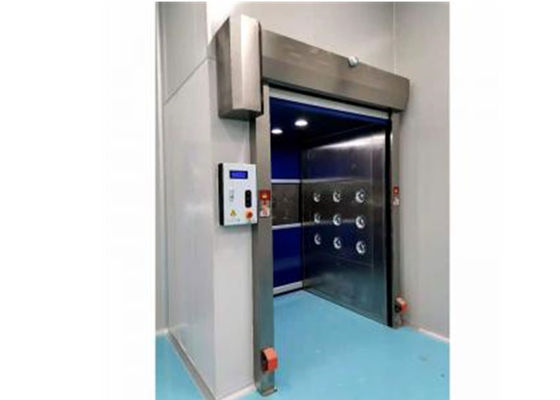

Air Shower Tunnel details photos
