| Blowing: | Two Side Blowing | Efficiency: | H13 |
|---|---|---|---|
| Application: | Pharmaceutical Industry | Certification: | CE |
| Warranty: | 1 Year | Original: | China |
| High Light: | 220V Air Shower Tunnel,SUS304 Air Shower Tunnel,Pharmaceutical Industry Air Shower Tunnel |
||
Single Person SUS304 220V Air Shower Tunnel For Pharmaceutical Industry
Air shower tunnel features:
Material: Stainless Steel SUS304/201/Q195;
Electronic Interlock. When A door opens, B door is locking. A, B doors can not open when blowing;
Emergency off button is installed according to customers' needs in case of emergency happens. Once press, two doors open;
Color LCD screen, touch-point switch to control blowing time and lamp time.
Infrared sensor automatic blowing, automatic stop;
Two-side blowing, left and right, stainless steel nozzles. Three-side blowing can be provided according to customers' needs;
Germany Dorma door closer, stable. more door closers for choose;
360-degree rotatable nozzles are installed according to customers' needs to keep high efficiency for blowing off particles from personnel;
System: infrared Automatic reaction system,
Interlock: electric/ mechanical
Showering time: The 0-99 seconds adjustable (99s factory defaults)
Structure : open side by side or right-angle to open the door
External frame: Stainless steel or coated cold-roll steel
Door, floor, nozzle and panel: stainless steel
Filter : primary and hepa filter
Fan: low vibration, low noise, imported or domestic fan
Winds: 20~28 m/s
Power: 220v/110v/380v
Optional: Alternative frame materials and size available on request.
Air shower tunnel Parameter
| Quantity and specification | unit | remarks | ||
| Cabient | SUS304 stainless steel | |||
| Nozzles | 48-96 | pcs | ||
| Outlet air speed | ≥20 | m | ||
| Working time | 0—99 | S |
Adjustable
|
|
| Rated Voltage | 380 | V | 3 phase 4 wire | |
| Power | 2.25-10 KW | KW | 50Hz | |
| Hygienic standard | High efficiency | |||
| Noise | ≤65 | DB | ||
| External dimension | W*H 1700*2300 | Mm | ||
| Net size | W*H 800*1900 | Mm | ||
| Channel type | Seal type Tunnel type | |||
| Remarks |
Please inform us before the contract comes into effect.
|
|||

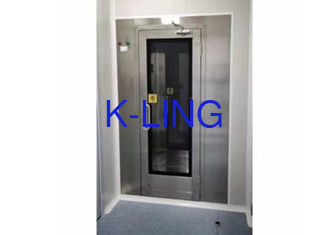

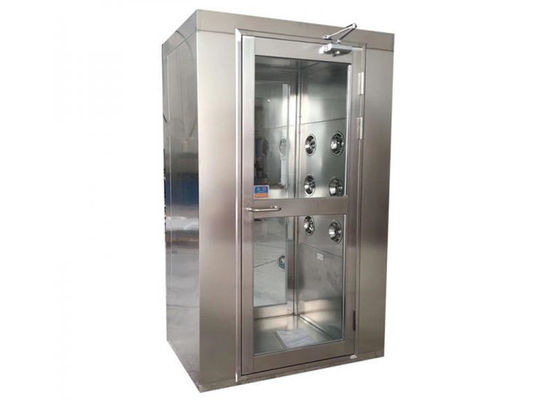

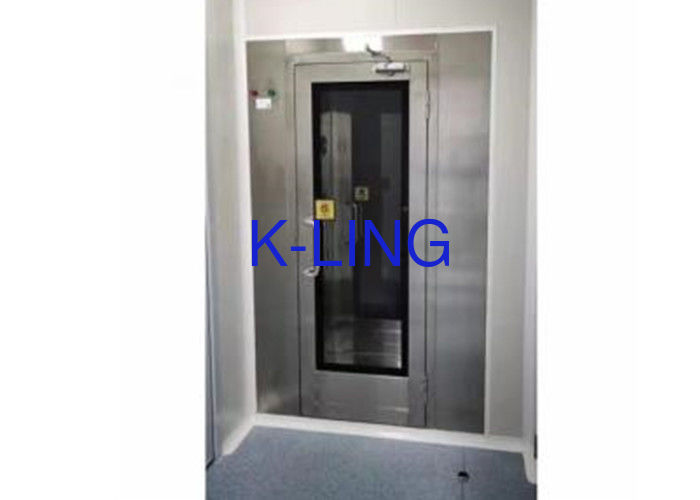

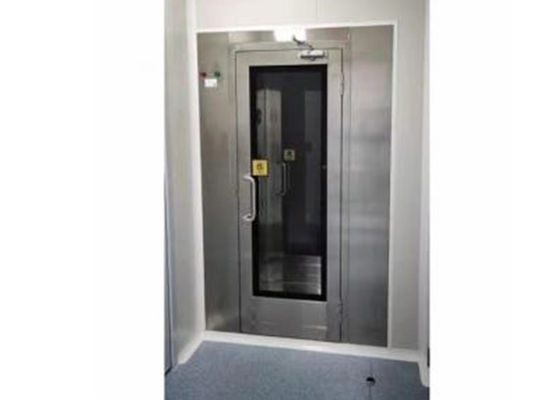

Air shower details photos
