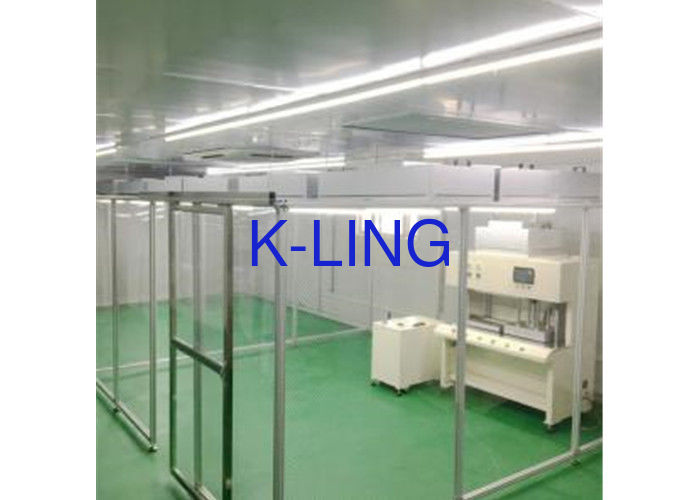

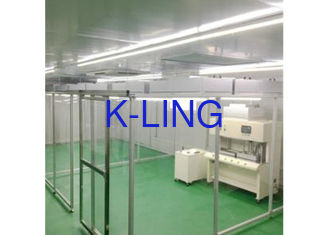

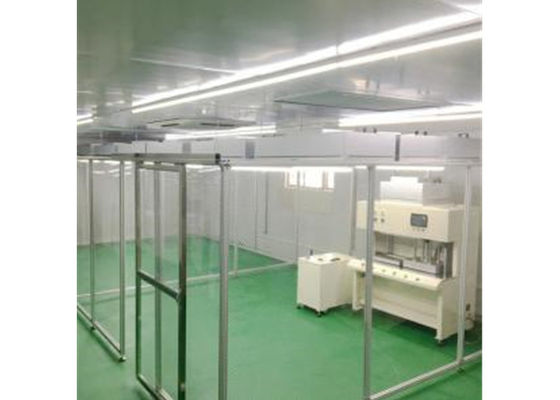

Aluminum Profile Mobile FFU Soft Wall Cleanroom PVC Anti Static Curtain

Aluminum Profile Mobile FFU Soft Wall Cleanroom PVC Anti Static Curtain

Introduction

Though clear division is not available, "Clean room" term is used in case of building or room. A space enclosed by PVC curtain or resin panel is considered as "Clean booth" in case of willingness to increase the cleanliness factor in a clean room or air-conditioned room. Size is 1.5m to 5m and clean air is introduced in the booth with a provision of FFU (Fan Filter Unit) in the ceiling.
Have become popular in recent years, not on the basis of its size, but considering it as a simple, cheap, movable structure with cleanliness factor and not violating the construction code or Fire services act.

Size and specification:

We specialize in Class 10 to Class 100,000 (ISO 4 – ISO 8) GMP directional Wheels ISO6 PVC Wall Dehumidifier Modular Cleanbooth

Cleanrooms that are used for some of the following activities: Pharmaceutical Production Cleanrooms, Medical Production Cleanroom, pharmaceutical storage rooms, temperature controlled rooms, bio-safety laboratories, pharmaceutical research laboratories, stem cell research laboratories, server control rooms, organic chemistry laboratories, laser rooms, microbiology laboratories, dry rooms and more.

The fans of Clean Booth press the air in HEPA Air Filters with regular wind pressure, after passing through HEPA Air Filters, vertical and unidirectional airflow is well distributed to the work area, which ensures the high cleanlines.

Features

1. Frame structure, easy for mounting and can be dismounted again.
2. Move easily(rotary wheel available)

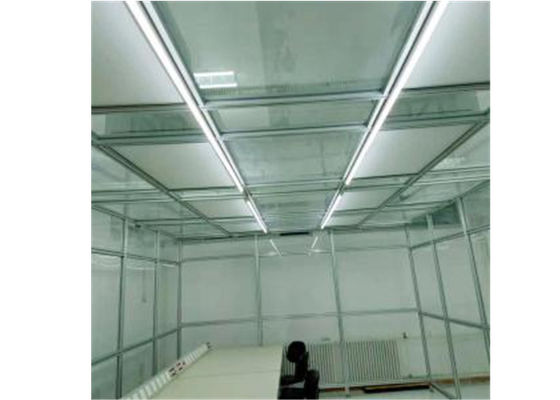

3. Modular structure at the top, FFU quantity can be adjustable to improve inside cleanness of the clean booth, and also can be recycled.
4. It is large useful and effective area,while compared with traditional clean room,low investment,high return and stable

5. quick production time and installation in short period
