| Door: | Pvc Door | Color: | Yellow |
|---|---|---|---|
| Cabinet: | Sus 304 | Application: | Medical Factory Clean Room |
| Name: | Air Shower Tunnel | Warranty: | 1 Year |
| High Light: | PVC Door Air Shower Tunnel,sus 304 clean room air shower,CE standard Air Shower Tunnel |
||

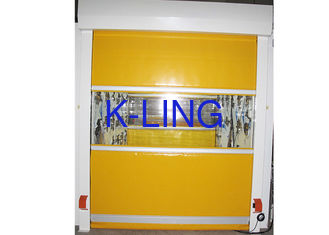

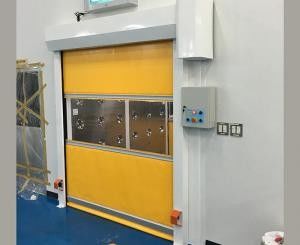

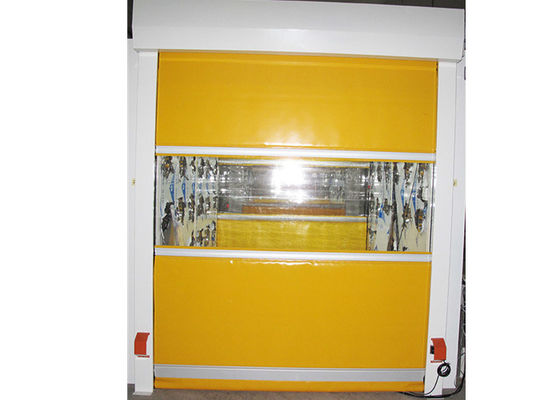

Fast PVC Door Air Shower Tunnel For Goods Enter The Medical Factory Clean Room
Doors: Soft PVC Fast Speed Scrolled Doors
Door Net Width: 1800mm
Description:
Air Shower Tunnel for clean room is a kind of partial clean equipment with rather strong universality and
is installed at the partition between the clean and non-clean rooms. Its used for the personnel or matters
to shower before entering the clean area. After using it, the dust could effectively be reduced to enter the
clean area and maintain the normal working status.
Blowing type: single-side blowing, double-side blowing, three-side blowing.
Features:
1. The control system run automatically by photoelectric sensor, the two door are electric interlocked.
(One door in open state, the other door must in close state. When people enter air shower, the system will
shower automatically by photoelectric sensor)
2. Air shower time from 1 to 99 seconds which can be adjustable
3. Adopt Pre filter and HEPA filter
4. The door, bottom-board, nozzles are used of stainless steel, good appearance.
5. When air shower is used to pass cargo, it is without bottom-board.
Standard Features:
1. Large Airflow and Low Noise Blower fan
2. Neoprene vibration isolator for blower
3. 99.99% 0.3 micron HEPA filter
4. Stainless Steel adjustable air nozzles
5. MEVR 7 pre-filters located at the botton of the wall for easy access
6. Electric door interlock 12DV with 50kg holding force.
7. Emergency stop station (Shutts off blower and turns off locks)
8. Commercial duty door closers.
9. LED light fixture.
10. Pre-wire control panel with non-fused disconnect switch, tranfermers, motor starter with short circuit and overload protection and fused and circuit breaker.
Optional Features:
1. 99.999% @ .12 micron ULPA filter
2. MERV 8-10 Pre-filters
3.Numeric display
4. Touchscreen display
5. Vertical laminar flow ceiling
6. Hazardous location electrical
7. Automatic door systems
8. Magnehelic gauge for HEPA filter
9. Ionization
10. Audible alarms
11. Safety glass
12. Additional emergency stop stations
13. Light switch for interior LED light
Parameter:
| Model | KEL-ASC2300 |
| External dimensions (mm) | W2300*D2600*H2300 |
| Internal dimensions WxHxD(mm) | 1800*D2600*H2000 |
| Doors | 2 sets of High speed shutter doors |
| Door closer | NONE |
| Lock | electric interlocked |
| Suitable | Both People and Goods |
| Nozzles | 18+18+12=48 PCS(3-side blowing) |
| Blower fan | 4 sets |
| Blow power(W) | 4000W |
| Weight(kg) | Appro.780 |
| HEPA filter size | 610x610x90mm |
| HEPA filter qty | 4 PCS |
| HEPA filter efficiency | H13 |
| Photolectric sensor | ORMON 2 PCS |
| Fluorescent Lamp | Philips 2x 20W |
| Nozzle diameter | 32mm |
| Air shower time | 0-99 s Adjustable |
| Spurt wind speed | 22-25m/s |
| Power Supply | AC380V/50Hz/3Ph |
| Control system | Microcomputer control panel with human invoice prompt, electric interlock, automatical blowing by photoelectric sensor |
