| Type: | Hepa Filter | Temperature: | 200-350℃ |
|---|---|---|---|
| Application: | Food And Medical Factory | Size: | Customized |
| Warranty: | 1 Year | Original: | China |
| High Light: | 304SS HEPA Air Filter,CE hepa room air filters |
||

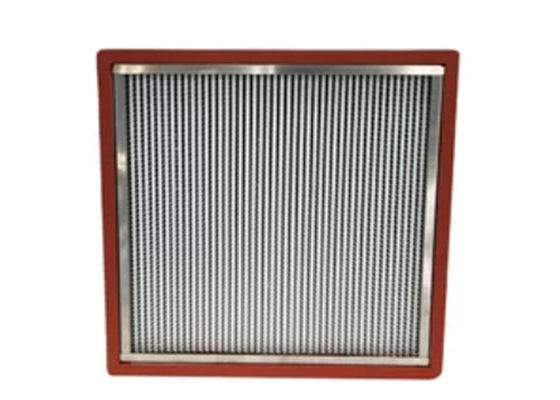

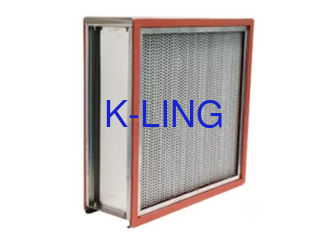

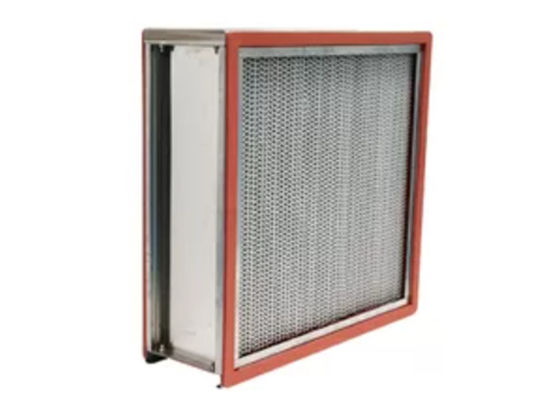

High Temperature HEPA Air Filter Large Filter Area For Food Or Medical Factory
Specifications:
· High efficiency(capturing 0.5 or above 0.5μm Particles)
· Low resistance
· Large dust holding capacity
· Fine uniformity of air velocity
Features:
It can be used as final air filter in some more high efficiency place.. Good permeability, let dust amount is large, stable performance, etc.
Application:
Cleaning room in air conditioner system.
It is applied to dead-end filtration of thecleanroom and many kinds of cleaning equipments
Type: high efficiency box filter
Final resistance:(suggested)450Pa
Max. air flow: 125% of the rated air flow
Temp resistance: 80ºC
Humidity:≤100%RH
Specifications:
Frame: 304 stainless steel
Media: glass fiber
Efficiency: 99.95%-99.99%
Sealant: high temperature silicon
Separators: aluminum foil
Humidity resistance: ≤95%RH
Working temperature: ≤250℃
Parameter
| Model | Size(mm)(W*H*D) | Rate air flow(m/h) | Initial pressure drop (Pa) | efficiency % 0.3u(DEHS) |
| KEL-AF-320 | 320*320*220 | 400 | ≤220 | ≥99.99% |
| KEL-AF-484 | 484*484*220 | 1000 | ||
| KEL-AF-610A | 610*610*150 | 1000 | ||
| KEL-AF-630 | 630*630*220 | 1500 | ||
| KEL-AF-915 | 915*610*150 | 1500 | ||
| KEL-AF-610B | 610*610*290 | 1800 | ||
| KEL-AF-1220 | 1220*610*150 | 2000 | ||
| KEL-AF-1260 | 1260*630*220 | 3000 | ||
| Note | Deep pleat hepa filter can be customized according to the site. | |||
