| Name: | Fan Filter Unit | Short Name: | FFU |
|---|---|---|---|
| Filter: | H14 And G4 Filter | Material: | Galvanized Sheet |
| Warranty: | 1 Year | Original: | China |
| High Light: | Hepa Fan Filter Unit,G4 fan filter unit for clean room,H14 hepa fan unit |
||

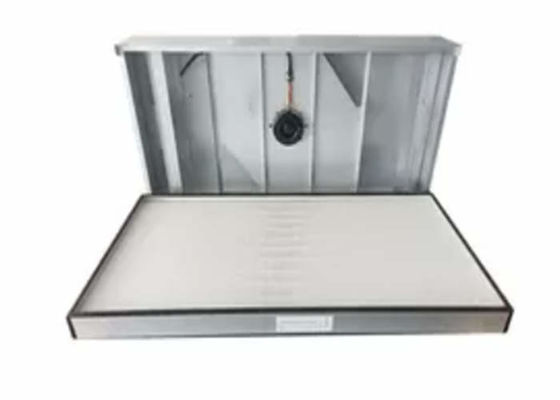

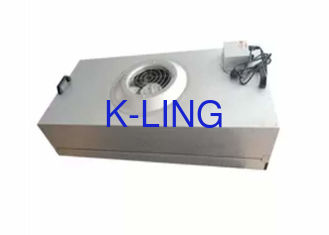

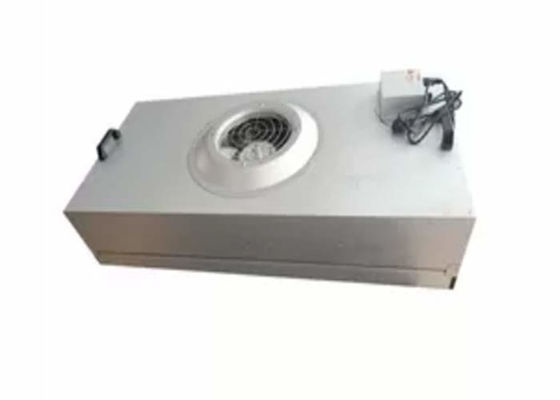

Clean Room Hepa Fan Filter Unit Coil Filtered Exhaust Fan Galvanized Plate
Introduction:
FFU, short for Fan Filter Unit, is a kind of air supply device that has motive power and filtering function. Air is brought in top of FFU as passing through HEPA Filters, filtered air comes out of outlet evenly; Modules connection running.
FFU provides clean air and particle controlling. FFU is installed on ceiling of clean room (25% to100% cover rate), general dimension is 2'*4' or 4'*4'.
Application
Applying in class 10000 to class 10 of clean room, even forming ultra clean line, clean closet and etc.
1. Nice appearance, human centered design
Add Stainless handle, easy installation and delivery, perpendicular design;
2. High performance and low noise fans
Adopting Energy-saving Multi-blade turbine fan, lower noise, Pressure spread evenly, outlet air velocity evenly and stable, low consumption, low running cost, service life can reach to longer than 80 thousand hours;
3. Light, thin shape
Without filter net, thickness of shape is 23cm, 25KG weight, application in low ceiling are also available;
4. Flexible, diversified design
Except for standard items, custom made is available, such as choosing kinds of filter net and materials of shell;
5. Concerning, convenient design
Pedals are designed in the body, which makes it convenient to install and repair;
6. Premium Current-averaging design of the inside
Ensures deviation of the blowing side lower than ± 10%.
Features
1.FFU consists of high performance AC fan, professionally designed box and HEPA/ULPA filter.
2.Outer casing is made of galvalume sheet, stainless steel or aviation aluminum.
3.Apply powerful fan, makes the whole equipment keep long-term operation under high static pressure and maintain a low noise (≤50 dB (A)) at the same time.
4.Low noise, low power consumption, small vibration, strong intensity, maintenance free.
5.Uniform air speed, stable operation. In addition, continuously variability of air speed is available.
6.Structure is compact and firm; Installation is easy and convenient.
7.Three-speed control or continuously viable.
Parameter
| Model | KEL-FFU-575 | KEL-FFU-1175 | KEL-FFU-1225 | KEL-FFU-1175×2 | |
| Cabinet Size | 575×875×230 | 575×1175×230 | 615×1225×230 | 1175×1175×230 | |
| Cabinet Material | Epoxy powder coated steel/Galvanized steel with aluminum painted/Stainless steel | ||||
| Air Flow(m3/h) | 800 | 1100 | 1200 | 2000 | |
| Noise(dB) | 56 | 56 | 58 | 58 | |
| Air Velocity | 0.3~0.5m/s | 0.3~0.5m/s | 0.3~0.5m/s | 0.3~0.5m/s | |
| HEPA Filter | Size | 570×870×69 | 570×1170×69 | 610×1220×69 | 1170×1170×230 |
| Efficiency | 99.995%0.3µm | 99.995%0.3µm | 99.995%0.3µm | 99.995%0.3µm | |
| Frame | Aluminum | ||||
| Initial pressure loss | 220pa/0.45m/s | 220pa/0.45m/s | 220pa/0.45m/s | 220pa/0.45m/s | |
| Fan | Power Supply | 220V/50hz | 220V/50hz | 220V/50hz | 220V/50hz |
| Type | Aluminum turbofan | ||||
| Vibration | 0.2~0.5mm/s | 0.2~0.5mm/s | 0.2~0.5mm/s | 0.2~0.5mm/s | |
| Total Power | 170W | 170W | 210W | 275W | |
| Weight | 24kg | 28kg | 31kg | 47kg | |
