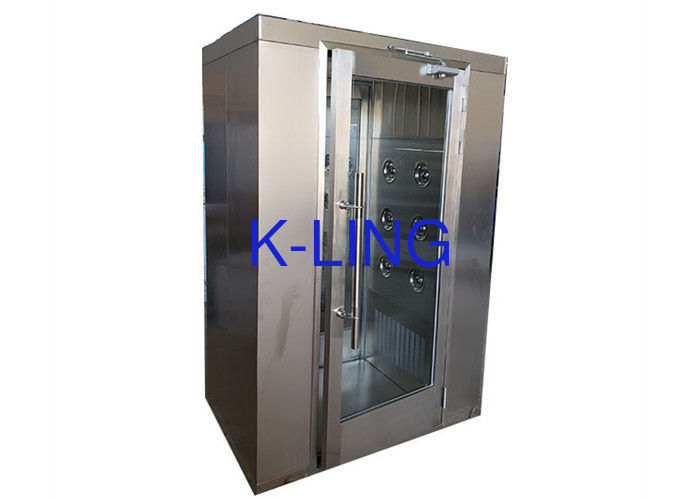

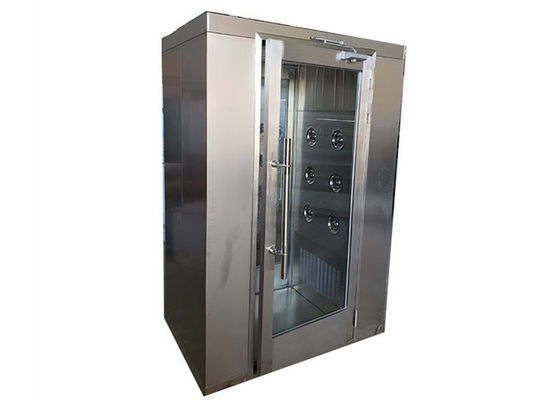

Stainless Steel Nozzle Customized Air Shower Tunnel/ Air Shower With CE Standard
What is the air shower?

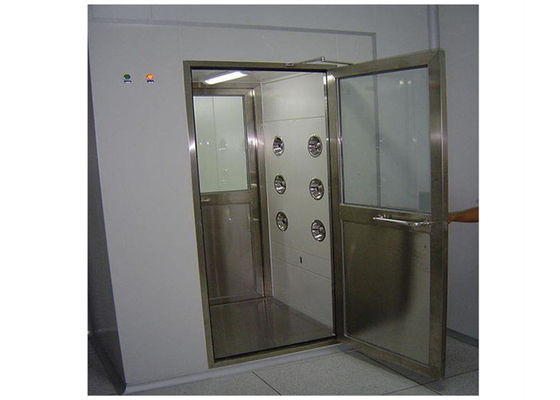

The air shower is a highly versatile local purification equipment installed between the clean room and the non-clean room. When people and goods enter the clean area, they need to be blown through the air shower. The clean air blown out can remove the dust carried by people and goods, and can effectively block or reduce the dust source from entering the clean area. The front and rear doors of the air shower/cargo shower room are electronically interlocked, which can also act as an air lock to prevent unpurified air from entering the clean area.
What kind of air shower you can buy from our company?
According to the blowing method, the air shower room can be divided into:
1. Top blow air shower room
2. Single person single blow air shower room
3. Single person double blow air shower room
4. Single person triple blow air shower room
5. Double person double blow air shower room
6. Double person triple blow air shower room
7. Multiple persons double blow air shower room
8.multiple people triple blow air shower room;
The air shower room can be divided into:
1. Stainless steel air shower room
2. Steel air shower room
3. Outer steel plate inner stainless steel air shower room
4. Color steel air shower room
5. Outer color board inner stainless steel air shower room ;
The air shower room can be divided into:
1. Intelligent voice air shower room
2. Automatic door air shower room
3. Explosion-proof air shower room
4. Fast rolling door air shower room;
The air shower room can be divided into different objects according to the use:
1. Human shower room
2. Cargo shower room
3. Air shower channel
4.Cargo shower channel.
What is the composition of the air shower?
The air shower room consists of a box, a stainless steel door (steel painted door or color steel door with window), low efficienct filter, high-efficiency filter, fan, static pressure box, nozzle interlocking controller, operation panel, induction device, etc. Consists of large parts.
Parameter
| Model | Single Person | Double Person |
| HEPA | H13,H14 | |
| Air Velocity(m/s) | ≥25 | |
| Number of Nozzle | 16 | 32 |
| Power Supply | AC380V/3P/50Hz | |
| Power | 1.8KW | 3.6KW |
| Box Material | High-grade steel with stoving varnish;SUS304 | |
| Floor Material | High-grade steel with stoving varnish,SUS304 on the passageway | |
| Door | Interlock Door,Adjustable Time | |
|
External Dimension W*H*D(mm) |
1200*1000*2100 | 1200*2000*2100 |
| Internal Dimension(mm) | 800*900*1960 | 800*1900*1960 |
| Products Standard | CE | |
