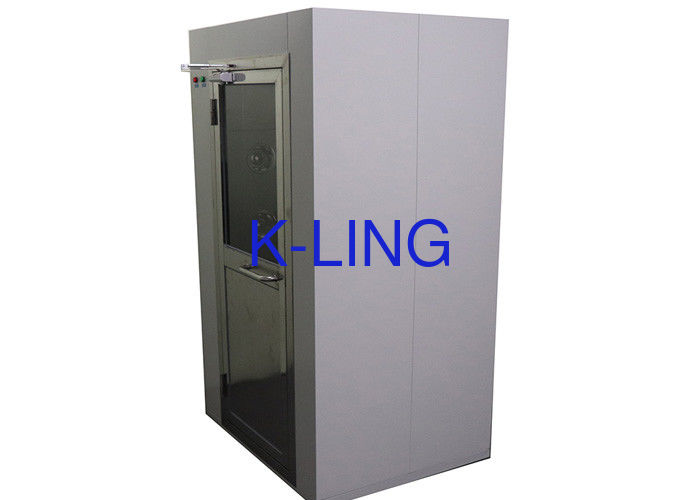

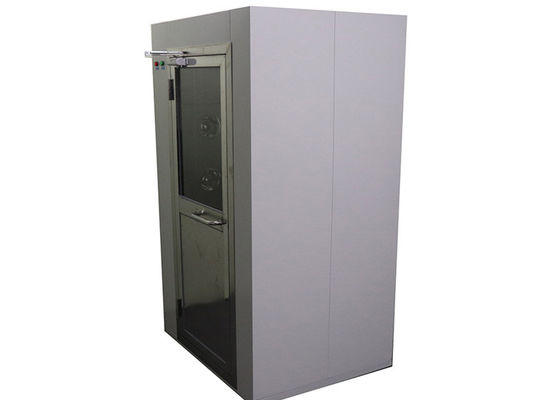

SUS 304 Nozzle Dust Free Room Air Shower Tunnel For Passageway Cleanroom
Introduction
The air shower room adopts fully automatic control operation, double door electronic interlocking, and infrared sensor automatic blowing. The air shower chamber is all made of high quality A3 cold rolled steel plate with multi-layer pickling spray or all stainless steel. Compared with uncoated cold-rolled steel sheets, multi-layer pickling sprayed A3 cold-rolled steel sheets provide a good protective barrier against external corrosion and rust.
Feature

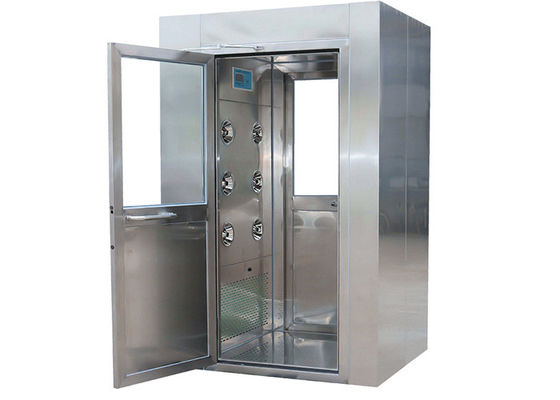

1. Multi-angle adjustable stainless steel nozzles are durable; durable and beautiful stainless steel doors with transparent windows; the floor is made of stainless steel plates that are resistant to wear and easy to clean.
2. The industrial grade electromagnetic lock ensures that it will not shift. The Korean AUTODise infrared sensor automatically induces blowing, Chint's intermediate relay.
3. The emergency stop switch is installed inside the work area and can quickly cut off the power supply so that all the doors are open.
Design drawing
Parameter
| Model | KEL-AS01 | HKEL-AS02 | KEL-AS03 | KEL-AS04 |
| External size(mm) | 1160*1000*2050 | 1290*1500*2050 | 1390*2000*2050 | 1390*2500*2050 |
| Internal size(mm) | 790*1000*1950 | 790*1000*1950 | 790*2000*1950 | 800*2500*1950 |
| Power supply | AC,1PH,220V 50/60HZ or AC, 3PH, 380V, 50/60HZ | |||
| Consumed power | 1100w | 1500w | 2200w | 2500W |
| No of nozzles | 12pcs | 18pcs | 24pcs | 48pcs |
| Air speed | 20-25m/s | |||
| Air shower time | 0-99s adjustable, standard is 10s | |||
| HEPA FILTER | H13 or H14, 99.99%@0.3um or 99.995%@0.3um | |||
| Material | SUS304, SUS201, baking finished optional | |||
|
NO. of person capacity |
1-2 | 2-3 | 3-4 | 4-6 |
| Remark | specification can be customized according to customer's requirement | |||
