| Certification: | CE/ISO | Application: | Worker Entrance |
|---|---|---|---|
| Material: | SUS 304/ Powder Coated Steel | Cleaning Style: | Recycling Wind Cleaning |
| Power: | 50HZ | Original: | China |
| High Light: | 25m/s modular clean room,99s Showering air shower room,CE 50HZ modular clean room |
||

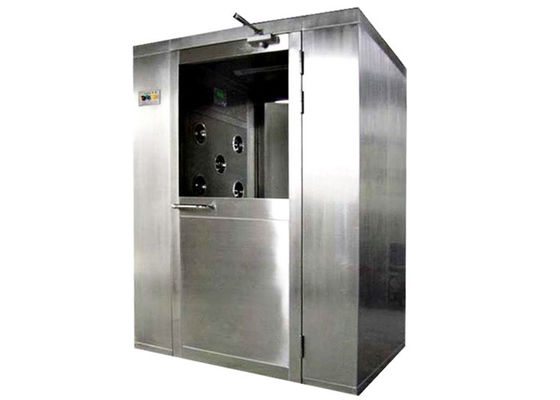

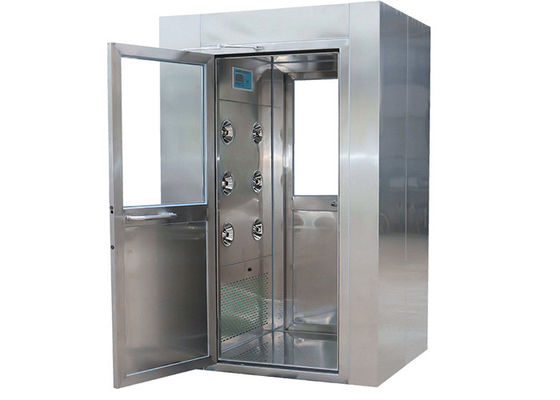

Modular Cleanroom Air Shower Personal Air Shower Room With CE Certification
Introduction
KEL Modular clean room air shower personal air shower room Double Doors Interlock Air Shower for Cleanroom for sale is used for purifying equipment of pharmaceutical,health,raw and cooked food processing ,precision instruments,meters,aviation and other industries.Before the operators enter the workshop,the hair ,dust,and other debris attached on the operator's garment surface can be removed when they pass through air shower.It is more beneficial to meet the hygienic standard,and improve the quality of products
Structure
Alternative configuration:
a. Stainless steel construction
b. Intercom
c. Ultraviolet sterilizing lamp/yellow light
d. Buzzer
e. Non-flooring-plate design (easy for light- weight vehicle in and out)
f. Automatic door
g. Non-standard air shower cleanroom is available
Parameter
| Model | KEL-AS-1300-P1 | KEL-1300-PQ1 | KEL-1300-P2 | KEL-1300-P3 |
|
Outer Dimensions W×D×H(mm) |
1300×1000×2100 | 1300×1500×2100 | 1300×2000×2100 | 1300×3000×2100 |
|
Inner Dimensions W1×D1×H1(mm) |
800×930×1960 | 800×1430×1960 | 800×930×1960 | 800×930×1960 |
| Speed (m/s) | 25~27 | |||
| Nozzle No. | 12 | 18 | 24 | 36 |
| Structure | Cabin: Pre-painted cold work steel sheet.Stainless steel | |||
| Door: 5mm glass and built-in automatic door closer | ||||
| Lighting | LED, built-in type | |||
| Dust Collection Efficiency | Over 99.99% 0.3μm D.O.P TEST | |||
| HEPA Dimension ×Quantity | 595×595×80×2pcs | 595×595×80×2pcs | 595×595×80×4pcs | 595×595×80×4pcs |
| Showering Time | 0-99s adjustable(FACTORY SETTING 10S) | |||
| Power Supply | 380V 50Hz, 3Phase/220V 60Hz 1Phase | |||
