| Box Material: | Powder Coated Steel | Filter: | HEPA Filter |
|---|---|---|---|
| Efficiency: | H14 | Size: | Customizable |
| Warranty: | 1 Year | Color: | White |
| High Light: | HEPA Filter Terminal Box,H14 HEPA Filter Terminal Box |
||

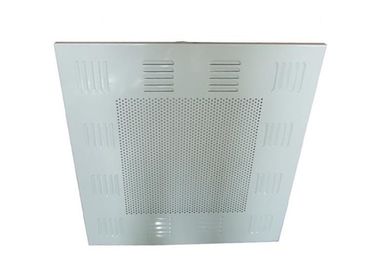

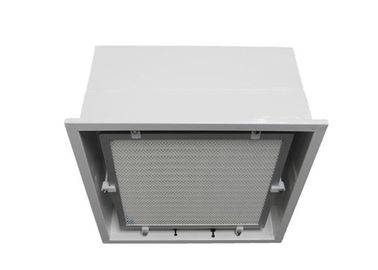

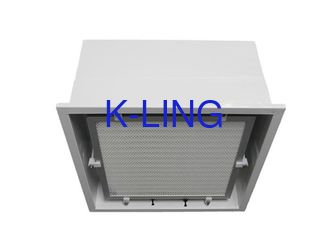

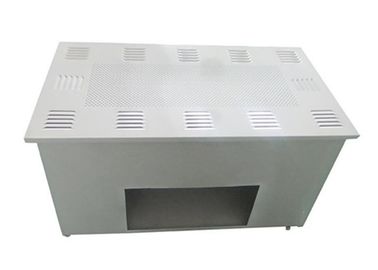

Powder Coated Steel HEPA Filter Terminal Box With Smooth Diffuser
Introduction
As the end air supply device of the clean air conditioning system, the HEPA filter terminal box is a kind of application in the field of ventilation and air conditioning. Clean air into the room through dilution action, reduce indoor air pollution concentration.The air will also be expelled from the tuyere or exhaust outlet. uniform diffusion of indoor airflow
HEPA terminal filter box with smooth diffuser plate used in air condition system and large air flow system. Diffuser plate have plays a role to ensure The effective flow rate of air flow and the area of dispersion. The HEPA unit has a good air flow structure which ensure the purifying effect.
Parameter
Model |
Shape size (mm) | Filter size(mm) | Air flow (m3/h) | Inlet pipe size A*B |
KEL-HB-370 |
370*370*530 | 320*320*220 | 500 | 200*200 |
KEL-HB-534 |
534*534*530 | 484*484*220 | 1000 | 200*200 |
KEL-HB-660 |
660*660*460 | 610*610*150 | 1000 | 320*250 |
KEL HB-680 |
680*680*530 | 630*630*220 | 1600 | 320*250 |
Features :
with smooth diffuser plate
out frame is made of high quality cold-rolled steel plate.
with electrostatic spraying with diffused flow board,
Static pressure box design,Uniform air distribution
Flange-round and square types, compact structure
Applications:
Widely used in medicine, sanitation, electronics, chemical industries and other industries to purify air conditioning systems
