| Name: | Softwall Clean Room/ Clean Room Booth Station | Other Name: | Clean Booth/ Modular Clean Room |
|---|---|---|---|
| Purification Rank: | Class 1000 (ISO 6) | Feature: | Portable |
| Design Drawing: | Free Design Drawing | Original: | GuangDong China |
| High Light: | Portable Clean Room Booth Station,Softwall Clean Room Booth Station,H14 Clean Room Booth Station |
||

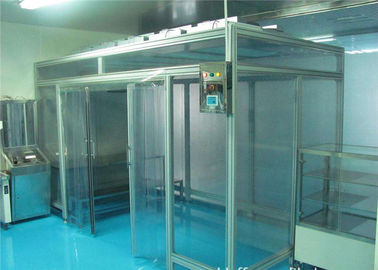

Portable Clean Room Booth Station/ Softwall Clean Room Free Design Drawing
Introduction
The clean workshop is also called the dust free workshop, the clean room (Clean Room) and the dust free room. It refers to the removal of pollutants such as particles, harmful air and bacteria in the air within a certain space, and the indoor temperature, cleanliness, indoor pressure, air velocity and air distribution, noise and vibration, lighting and static control. A specially designed room for a particular requirement. That is to say, no matter how the external air conditions change, the room can maintain the characteristics of cleanliness, temperature and humidity and pressure.
The development of clean room is closely related to modern industry and advanced technology. As a result of medical, food industry, precision machinery industry (such as gyroscopes, micro bearings processing), semiconductor industry (such as large-scale integrated circuit production), such as the requirements of the environment, promote the development of clean room technology.
Configuration:
| Parameter | Softwall Clean Booth | Hardwall Clean Booth | |
| Cleanliness | From Class 100 to Class 1000,000 | ||
| External Dimension | As per requirement | ||
| FFU | Dimension | 2'X4' | |
| Cabinet Material | Stainless Steel | ||
| Power source | 110V/60hz/av/dc, 220V/60HZ/AV/DC | ||
| HEPA Filter | H14 Hepa filter | ||
| Frame Material | Stainless Steel | ||
| Wall Material | Anti-static soft PVC wall 106~109Ω | Anti-static acrylic 106~109Ω | |
| Lighting | Lamps | Available in LED and T5 | |
| Air condition | As per requirement | Available in constant temperature air conditioner/constant temperature and humidity conditioner | |
Besides above configuration, we can customized as required.
Parameter
|
Model |
KEL-SCB-1200 |
KEL-SCB-1500 |
KEL-SCB-1800 |
|
External Dimension (W×D×H)mm |
1200×1500×2300 |
1500×1500×2300 |
1800×1500×2300 |
|
Internal Work Zone (W×D×H)mm |
1100×1200×1900 |
1400×1200×1900 |
1700×1200×1900 |
|
Clean Class Level |
100class(U.S.Federal 209E Standard) |
||
|
Air Velocity |
0.3-0.5m/s |
0.3-0.5m/s |
0.3-0.5m/s |
|
Noise |
≤65dB |
≤65dB |
≤65dB |
|
Vibration Half Peak |
≤5um |
≤5um |
≤5um |
|
Light |
40W×2 |
40W×2 |
40W×2 |
|
Power Supply |
220V/50Hz |
220V/50Hz |
220V/50Hz |
|
Material |
Epoxy powder coated steel/full stainless steel |
||

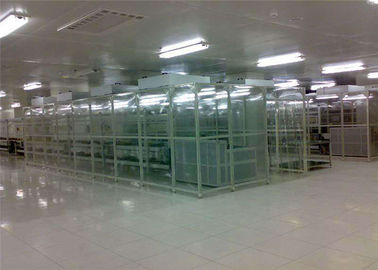

Case display
