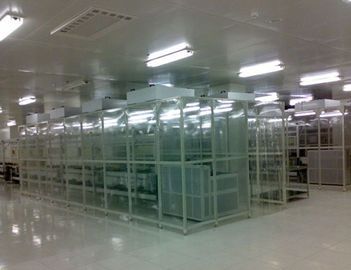

ISO 5-9 Design Softwall Clean Room Customized Size For Electronic Products

China ISO 5-9  Design Softwall Clean Room Customized Size For Electronic Products supplier
ISO 5-9  Design Softwall Clean Room Customized Size For Electronic Products supplier ISO 5-9  Design Softwall Clean Room Customized Size For Electronic Products supplier

Large Image :  ISO 5-9 Design Softwall Clean Room Customized Size For Electronic Products

Product Details:

Place of Origin: China
Brand Name: K-LING
Certification: CE
Model Number: KEL-KLF4500

Payment & Shipping Terms:

Minimum Order Quantity: 1SQM
Price: NEGOATION
Packaging Details: PLOWOOD PACKING
Delivery Time: 8 WORKING DAYS
Payment Terms: Ex works/FOB/CIF/ CNF
Supply Ability: 2000sqm/month
Contact Now
Detailed Product Description
Product Name: Dust Free Modular Cleanroom Frame: Stainless Steel 304 Frame
Fan Filter Unit: 1175x575x350mm HEPA Filter: 99.99%@0.3um
Perfilter: 450x450x17mm Purification Rank: ISO6
Wall: Plastic Curtain(T=0.3mm) Ceiling: Stainless Steel Board
Purification Light: 300Lux Size: 4500x4500x3000mm



ISO5-9 Design Stainless Steel Turnkey Project Dust Free Modular Cleanroom







Main Component:



Name: Pass Box

Brand: K-Ling

Original: China

Pass box is auxiliary equipment mainly used for passing small objects between2 clean areasorbetween clean areas and unclean areas. Pass box reduces the closing and opening times of the cleanrooms which helps to maintain a reasonable air pressure in the clean room. Pass box keeps thecontamination condition to the lowest



Name: Air shower

Brand: K-Ling

Original: China

Air shower is a frequently used equipment in clean room .It removes dust particles on the surface of the goods effectively to so that dust will not be brought in to the clean room by goods.Meanwhile,air shower works as an air lock which separates clean area and unclean area to keep the pressure in the clean room steady.



Name: Fan Filter Unit
Brand: K-Ling
Original: China
FFU is a type of unit used for filtering laminar air and supplying clean air.
FFU can be standalone or installed modularly.
FFU is the core when making clean room of different classes or manufacturing purification equipments for a given space including clean booth, clean bench and clean room assembly.



Name: Hepa filter
Brand: k-ling
Original: China
HEPA filter or ULPA can be used in all types of clean rooms manufacturing electronic products or biological products or spaces within which air quality needs to be strictly controlled. Size (including length, width and height) can be customized.









 ISO 5-9  Design Softwall Clean Room Customized Size For Electronic Products






Specifications:
Parameter
Softwall Clean Booth
Hardwall Clean Booth
Cleanliness
From Class 100 to Class 10,000
External Dimension
As per requirement


FFU
Cabinet Material
Stainless Steel

Dimension
2'X4' 6'X8',8'X12',12'X16' and so on or Customized
Power source
110V/60hz/av/dc, 220V/60HZ/AV/DC
HEPA Filter
H14 Hepa filter
Frame Material
Stainless Steel
Wall Material
Anti-static soft PVC wall 106~109Ω
Anti-static acrylic 106~109Ω
Lighting
Lamps
Available in LED and T5
Air condition
As per requirement
Available in constant temperature air conditioner/constant temperature and humidity conditioner



Technical Paremeters:

Class Level
Model
Inner dimension
W * D * H (mm)
Number of
FFU
Air volume(m3/h)



Class100
KELCS6 * 8
2000 * 3000 * 2400
6
6600
KELCS 8 * 12
2440 * 3660 * 2400
12
13200
KELCS 8 * 16
2450 * 4880 * 2400
16
17600
KELCS 8 * 20
2440 * 6100 * 2400
20
22000


Class 1000
KELCS6 * 8
2000 * 3000 * 2400
2
2200
KELCS 8 * 16
2440 * 4880 * 2400
4
4400
KELCS 12 * 16
3660 * 4880 * 2400
6
6600
KELCS 20 * 24
6100 * 7300 * 2400
12
13200


Class 10000
KELCS6 * 8
2000 * 3000 * 2400
1
1100
KELCS 8 * 16
2440 * 4880 * 2400
2
2200
KELCS 12 * 16
3660 * 4880 * 2400
4
4400
KELCS 20 * 24
6100 * 7300 * 2400
8
8800

Features

1. Economy: Lower cost compared with the traditional clean room, larger working area compared with laminar flow cabinet/Clean bench.
2. Efficiency: supply clean vertical airflow, easy to improve the cleanliness indoor
3. Convenience: Easy installation/ assembling.
4. Flexibility: Movable with wheel for small clean shed.
5. Customized design is available.


For more, please do not hesitate and feel free to contact us
