Product Details:
Payment & Shipping Terms:
|
| Name: | Dispensing DownFlow Booth | Material: | SS316 |
|---|---|---|---|
| Airflow Velocity: | 0.45m/S | Filters: | G4,F8.H13,H14 And PLF Screens |
| Noise: | <65dB | Cleanliness: | Class 100 |
| Start Port: | Guangzhou, Shenzhen, Shanghai | Hepa Filter: | 99.9955%@0.3um |
| After-sales Service Provided: | Engineers Available To Serivce Machinery Overseas | ||
| High Light: | pharmaceutical sampling booth,pharmaceutical weighing booth |
||
CUSTOMIZED DESIGN IS AVAILABLE
Introduction:

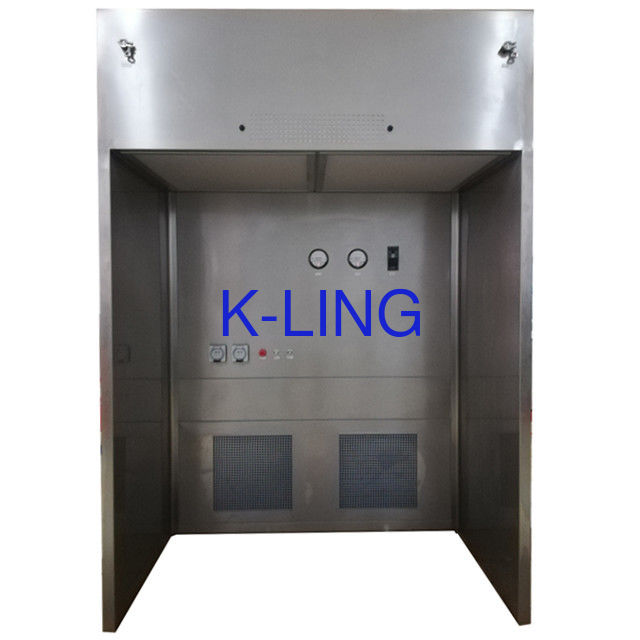

When you need to provide a clean, contained environment for the safe handling of pharmaceutical powders in dispensing, weighing, sampling, or subdivision operations, the PharmAir booths are a highly effective option.
By our fully trained engineers to ensure the system fully conforms to your requirements.
To complete the package, our dedicated Aftersales department will supply total support.
Available in epoxy coated zintec steel, 201/304/316L stainless steel or a combination of both.
Various heights and widths (up to 6m) are available Custom filtration designs with a minimum of fine dust and then Hepa filters in either the technical stack or the ceiling plenum.
Single pass/once through airflow systems used in applications where solvent vapors are present.
Product Features:
Stainless steel or epoxy- coated mild steel construction
High efficiency EC fan system
Safe change the HEPA filter
Overhead lighting with supply plenum
Mobile work benches
Hazardous area electric option
Flush mounted computer integration
From/side access doors
PLC Controlled audible and visual alarm package
High level exhaust grilles
Material and personnel airlocks systems
Basic Info:
| Product Name | Dispensing DownFlow Booth |
| Brand | OEM/ODM |
| Material | SUS304,SUS201,SS304, Cold rolled plate |
| Size | Customized |
| MOQ | 1 SET |
| Delivery Time | 7-15 working days |
| Shipping Port | Guangzhou, Shenzhen, Shanghai |
| Warranty | 2 years |
| Packing |
Polywood packing |
| Payment | T/T,L/C, West Union, D/P, Cash |
Products Specifications:
| MODEL | KEL-DB1000 | KEL-DB1500 | KEL-DB2000 |
|
External size (mm) (W*D*H) |
1200x1500x2400mm | 1500x1700x2400mm | 2000x1800x2400mm |
|
Work zone (mm) (W*D*H) |
1100x1200x2000mm | 1400x1200x2000mm | 1900x1300x2000mm |
| Purification rank | Class 100(ISO5) | ||
| Air speed | 0.45m/s +_20% | ||
|
Material (Option) |
1: Entirety Stainless Steel 201/304/316.(T=1.2/1.5mm) 2: External and internal side is steel with power coated. (T=1.2/1.5mm) |
||
| Control system |
1: Air Speed according to frequency converter control . 2: Gel Sealant High Efficiency HEPA air filter for high purification rank 3: Wind speed detection, Constant temperature and constant humidity Detector according to client request install 4: DOP/PAO Port and differential Pressure Guage for HEPA /secondary filter so that remind of you change the air filter in time 5: 5 different filter configuration available utilizing combination of G4,F8.H13,H14 and PLF Screens . 6; GMP Modular design with minimized joints and seams. 7: PVC strip curtains available 8; Energy Efficient high air volume fan to minimize operating cost, |
||
| Noise level(dB) | <65dB | ||
| Filter step | 3 Step | ||
| HEPA filter | 99.995% @ 0.3um Gel sealant mini--pleats HEPA Air Filter | ||
| Secondary filter | F8 pocket air filter | ||
| Pre-filter Efficiency | G4 Z-Line panel air filter | ||
| Power supply | 380V/50HZ OR 220V/50HZ | ||
| Packing material | Standard Export Poly wood Packing(Fumigant free material) | ||
