| Product Name: | Softwall Clean Room | Cleanlines: | From Class 100-10000 |
|---|---|---|---|
| Warranty: | 2 Years | Size: | Customized |
| Floor: | PVC/ Expoxy Floor For Cleanroom | Usage: | Pharmaceutical/ Lab/hospitcal |
| Wind Speed: | 0.45m/s For Cleanroom | HEPA Filter: | H11-H14 HEPA Filter |
| High Light: | Laboratory clean room,portable clean room |
||
It is for solution when clean air areas need to be created on a small to mid scale, flexible and economical, they may be easily relocated when application requirements change, dimensional and cleanliness class requirement.
Clean Booth provides a very wide variety of standard sizes and cleanliness levels and almost any custom configurations or applications you request.

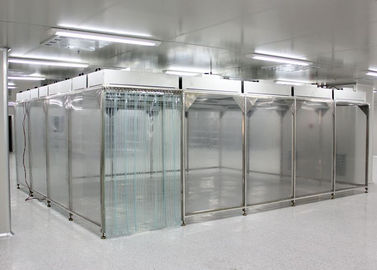

A soft wall clean booth, made of removable anti-static vinyl strip curtains, is the most cost-effective equipments available for any zone, needing a special filtration.
Clean Booths, which are of a modular build format, allows ease of installation and as a result to provide less downtime.
Clean booths are usually used in dispensing, sampling, and off-loading areas within pharmaceutical, chemical and bio-chemical industries.
The advantages of soft wall clean booth include ease of access and ensuring the clean zone staying within specific cleanliness level need.
| MODEL | KEL-LFB2000 | KEL-LFB3000 | KEL-LFB4000 | KEL-LFB5000 |
|
Ex size (mm) (W*D*H) |
2000X2000X2596 | 3000X3000X2596 | 4000X4000X2596 | 5000X5000X2596 |
| In size (mm) | 1900x1900x2205 | 2900x2900x2205 | 3900x3900x2205 | 4900x4900x2205 |
| Purification rank | Class10-300,000(FS209E USA) | |||
| HEPA filter | Efficiency : 99.99% @ 0.3um - 99.999% @ 0.12um (MPPS) | |||
| Pre-filter | Efficiency : 85% @ 5um | |||
| Control system | PC control system / promised speed by control box | |||
| Pressure Gauge | American Dywer pressure | |||
| Noise | <50-55 dB (test point distance is 1m) | |||
|
Air velocity (m3/h) |
0.2-0.5m/s Adjustable (test point distance is 30cm) | |||
| Frame material | stainless steel/steel with power coated/Cast aluminum profile | |||
| Wall frame | Tempered glass / PVC anti-static curtain (option) | |||
| Fan | EBM Fan /Taiwan fan/ Domestic fan (option) | |||
| Power suppler | AC110/220v 50HZ/60HZ |
|||
It is used to the workshop area which requires a higher level of internal purification, such as the pipeline work area, high-precision product assembly area, semiconductor industry, biochemistry, medicine and food industry, etc.
OEM
Customized design is available.
Detail:
Modular Cleanroom Frame Material Have Two Choose:
A: Stainless steel 304 : it can resist corrosion and have strong support
B: Aluminum alloy : easy assembly , standard accessories .
Ceiling: Aluminium-plastic material is light at weight, easy to install,
Sandwich board ceiling in ivory white color have excellent thermal insulation property,
More high requirement for large are temperature and humidity so it is best choice for cleanroom
Fan Filter Unit: Adopted excellent energy –saving Centrifugal fan with lower noise and less energy consumption.
Wall: The anti-static acrylic sheet can may lead the surface static electricity to the underground to keep the surface from absorbing dust or fiber.
Control System: We can adopted the PLC control system for control the fan filter unit .this can catch the wind speed, differential pressure, temperature and humidity of laminar flow booth
Application:
E-Cigarette , LCM, CMOS Camera Module , Touch play , Optical module ,Film ,Biological Pharmacy, Packing Food .
Our Service:
1: Document
A: Document for custom clear: 1 sets
B: Assemble draw: 1 pcs
C: Circuit diagram draw: 1 pcs
D: Test report : 1sets
E: Additional IQ/OQ/PQ document is available upon request.
