KeLing Purification Technology Company Limited
-------------------------------------------------------------
Advanced. High-Qulity. Reasonable.
Sales & Support:
|
Product Details:
Payment & Shipping Terms:
|
| Name: | Dispensing Booth | Purification Rank: | Class100 |
|---|---|---|---|
| Size: | Non-standard Customization | Noise:: | Less Than 65dB(A) |
| Warranty:: | 1 Year | Place Of Origin:: | GuangZhou China |
| High Light: | pharmaceutical sampling booth,downflow booth |
||

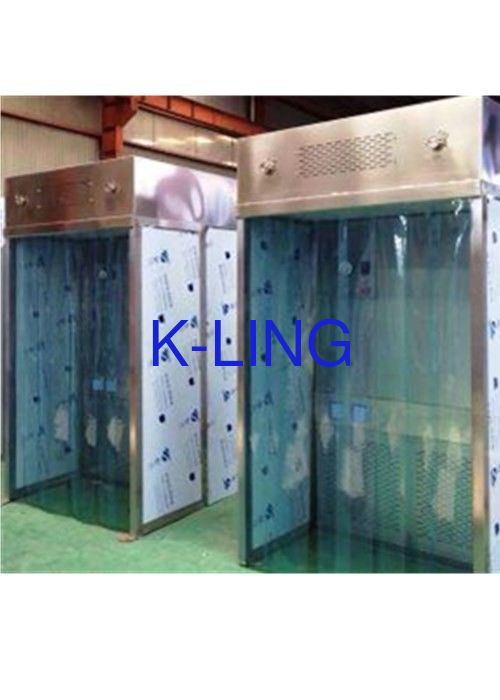

Class 100 Non-standard Customization Dispensing Booth With DOP port
Dispensing Booth Working Principle
Downward Forced air of sampling booth extracts at low level into the booths cleanliness filtration system where contaminated particles recirculated into the booth Air Flow. In standard Working condition of Pharmaceutical dispensing booth air pulled through the main chamber to steel exhaust grills used to fasten the HEPA & PRE-filters fitted in the rear side of the booths, It suppresses airborne dust particles away from the uses breathing area.
Dispensing Booth Feature
Dispensing Booth Parameter
Customer's design is available.
| MODEL | KEL-DB1000 | KEL-DB1500 | KEL-DB1900 |
|
External size (mm) (W*D*H) |
1200x1500x2400mm | 1500x1700x2400mm | 2000×2200×2650mm |
|
Work zone (mm) (W*D*H) |
1100x1200x2000mm | 1400x1200x2000mm | 1900×1900×2150mm |
| Purification rank | Class 100(ISO5) | ||
| Air speed | 0.2-0.7m/s | ||
|
Material (Option) |
1: Entirety Stainless Steel 201/304/316.(T=1.2/1.5mm) 2: External and internal side is steel with power coated. (T=1.2/1.5mm) |
||
| Intensity of illumination | ≥300 Lux | ||
| Noise level(dB) | <65dB | ||
| Filter step | 3 Step | ||
| HEPA filter | 99.995% @ 0.3um Gel sealant mini--pleats HEPA Air Filter | ||
| Secondary filter | F8 pocket air filter | ||
| Pre-filter Efficiency | 75%@5um | ||
| Power supply | 380V/50HZ OR 220V/50HZ | ||
| Packing material | Standard Export Poly wood Packing(Fumigant free material) | ||
Other type dispensing booth
All the types of the follow dispenisng booth is available.
Our company
KeLing Purification Technology Co., Ltd engaged in air purification filed for many years.It ia s Professional team for research and development clean room products whose sale air purification clean room equipments and clean room HVAC air filters.
Contact Person: carol LI
Fax: 86-20-31213735
