High Efficiency F6 - F9 V Bank Filter With Gig Air Volume / Rigid Air Filter

High Efficiency F6 - F9 V Bank Filter With Gig Air Volume / Rigid Air Filter
High Efficiency F6 - F9 V Bank Filter With Gig Air Volume / Rigid Air Filter High Efficiency F6 - F9 V Bank Filter With Gig Air Volume / Rigid Air Filter

Large Image :  High Efficiency F6 - F9 V Bank Filter With Gig Air Volume / Rigid Air Filter

Product Details:
Place of Origin: China
Brand Name: KELING
Certification: SGS
Model Number: KEL-VA005
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Price: Negotiable
Packaging Details: Standard carton and Polywood packing
Delivery Time: 7-15 working days for sample order
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 2000 pcs per month
Detailed Product Description
Name: V Bank Compact Filter Size: 592X592X292mm
Pack: 4 Air Flow: 3800m³/h
Media Area: 18 Sq.m Dust Holding: 1200g
High Light:

industrial air filters

,

home air filters

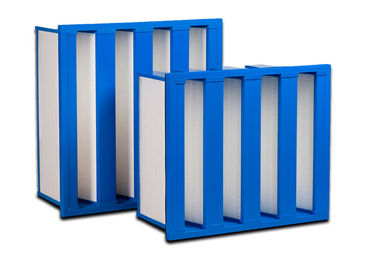

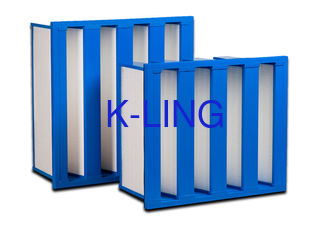

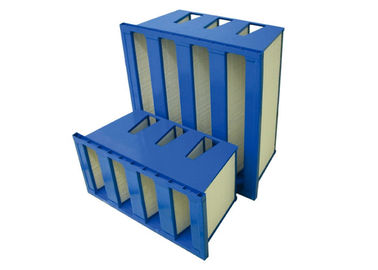

F6-F9 V Bank Compact Filter With Gig Air Volume For Air Conditioning System



V-type air filter is mainly used for filtration of more than 0.5μm dust particles, multi- V Mini-pleat design with large filtration area, low resistance, long service life, the use of waterproof ultra-fine glass fiber media, polypropylene plastic frame can be completely incinerated, and mounting flange frame is interchangeable with bag filter.





V Bank Compact Filter Features:

1. High efficiency;

2. Large filter area;

3. Large air flow,

4. Wind speed uniformity is good,

5. Low pressure drop,

6. Long service life.



V Bank Compact Filter Material:
1. Frame:Black plastic frame
2. Seal:AB glue
3. Divider:Hot melt adhesive
4. Filter medium:Glass fiber/PP
5. Protecting wire net:Paint.
Structure:Filter material is superfine glass fiber,divider is hot melt adhesive,with plastic frame assembly.



V Bank Compact Filter Application:
1. Optical electronic
2. LCD
3. Biological medicine
4. Precision instruments film and optical fiber devices
5. PCB Printing industry such as dust-free purification



V Bank Compact Filter Specification:



Customer Size is Available.



Dimension

(W*H*D)

(mm)

Pack

Air flow

(M3/h)

Media area

(m2)

Holding dust(g)

Primary resistance

(by0.5m/s)

Final

resistance

Efficiency

(0.3um)

287X287X292 2 900 4.63 280 〈60 250-300 F6
〈80 300-400 F7
〈100 300-400 F8
〈120 400-450 F9
592X592X292 3 2850 15 900 〈60 250-300 F6
〈80 300-400 F7
〈100 300-400 F8
〈120 400-450 F9
592X592X292 4 3800 20 1200 〈60 250-300 F6
〈80 300-400 F7
〈100 300-400 F8
〈120 400-450 F9
592X490X292 4 3100 16.44 1000 〈60 250-300 F6
〈80 300-400 F7
〈100 300-400 F8
〈120 400-450 F9
592X287X292 4 1750 9.26 550 〈60 250-300 F6
〈80 300-400 F7
〈100 300-400 F8
〈120 400-450 F9



High Efficiency F6 - F9 V Bank Filter With Gig Air Volume / Rigid Air Filter 0



High Efficiency F6 - F9 V Bank Filter With Gig Air Volume / Rigid Air Filter 1
