|Name:||Downflow Containment Booths||Material:||Cold-rolled Plate, Sus304|
|Airflow Velocity:||0.2-0.6 M/S||Filters:||G4,F8.H13,H14 And PLF Screens|
|Start Port:||Guangzhou, Shenzhen, Shanghai||Warranty:||2 Years|

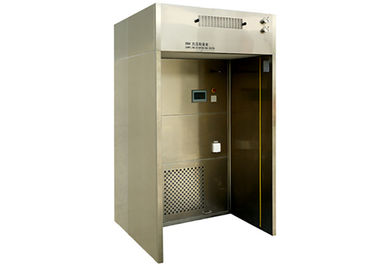

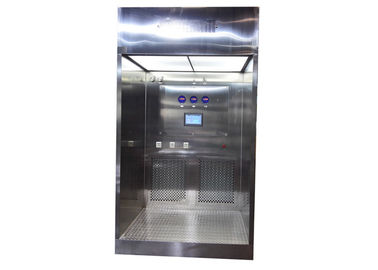

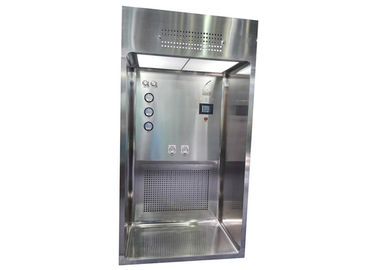

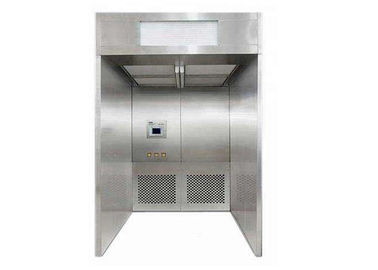

SUS304 Negative Pressure Laminar flow Downflow Containment Booths For Pharmaceutical GMP Workshop
CUSTOMIZED DESIGN IS AVAILABLE
The center weight room is one kind of professional working room which specially used in sampling,
weighting and analysis industry, it can control the working area powder to prohibit them off the working room,
and it is special equipment to control the powder floating, protect operators not breathe the operated powder.
Dispensing booth provide operator, process and product protection by utilizing HEPA filtered unidirectional laminar air flow booth to maintain an ISO5 environment at rest within the work zone and capture particulates during open handling processes .
Negative Pressure Laminar Flow
GMP Modular design with minimized joints and seams
Purification rank:class 100
Three step filtration system
Fluid seal mini-pleats system
GMP standatd with DOP port testing
Hazardous area electrics option
Flush mounted computer integration
Front/side access doors
PLC controlled audible and visual alarm packages
WHEN YOU NEED TO PROVIDE...
a clean, contained environment for the safe handling of powders in dispensing, weighing, sampling, or subdivision operations,
our PharmAir booths are a highly effective option. Complete containment solutions based around an innovative range of Downflow Containment Booths that bring different features and benefits to your application.
But all have one thing in common: they give a Guaranteed Working Environment.
External size (mm)
Work zone (mm)
|Purification rank||Class 100(ISO5)|
|Air speed||0.45m/s +_20%|
1: Entirety Stainless Steel 201/304/316.(T=1.2/1.5mm)
2: External and internal side is steel with power coated. (T=1.2/1.5mm)
1: Air Speed according to frequency converter control .
2: Gel Sealant High Efficiency HEPA air filter for high purification rank
3: Wind speed detection, Constant temperature and constant humidity
Detector according to client request install

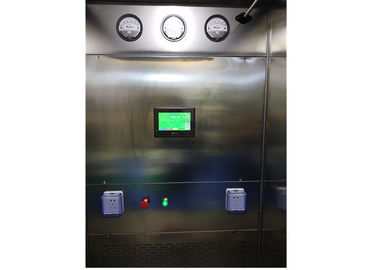

4: DOP/PAO Port and differential Pressure Guage for HEPA /secondary filter so that remind of you change the air filter in time
5: 5 different filter configuration available utilizing combination of G4,F8.H13,H14 and PLF Screens .
6; GMP Modular design with minimized joints and seams.
7: PVC strip curtains available
8; Energy Efficient high air volume fan to minimize operating cost,
|Filter step||3 Step|
|HEPA filter||99.995% @ 0.3um Gel sealant mini--pleats HEPA Air Filter|
|Secondary filter||F8 pocket air filter|
|Pre-filter Efficiency||G4 Z-Line panel air filter|
|Power supply||380V/50HZ OR 220V/50HZ|
|Packing material||Standard Export Poly wood Packing(Fumigant free material)|
