|Name:||Weighing Booth||Material:||Cold-rolled Plate, Ss304|
|Airflow Velocity:||0.2-0.6 M/S||Filters:||G4,F8.H13,H14 And PLF Screens|
|Start Port:||Guangzhou, Shenzhen, Shanghai||Warranty:||2 Years|

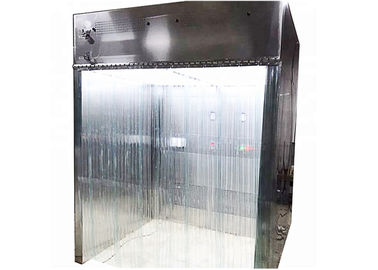

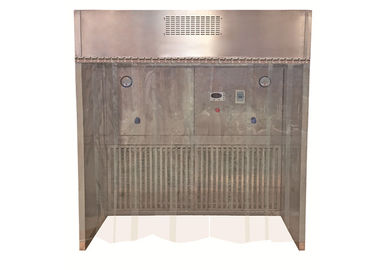

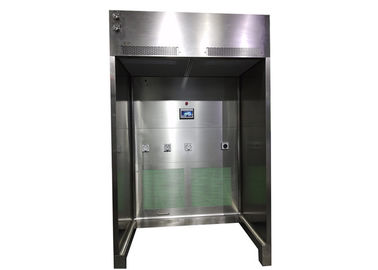

SUS304 Negative Pressure Laminar flow Weighing Booth For Pharmaceutical GMP Workshop
CUSTOMIZED DESIGN IS AVAILABLE
Clean booth is a kind of air purifying equipment providing partial high clean environment,
it’s the easiest and fastest way to build a simple clean room. Equipped with a lot of clean level and space collocation,
it can be designed as request. Main characteristics: simple use, good flexibility, easy installation, short construction time, and movable.
It can be installed in part of clean room of general level which requires high cleanliness to save cost.
1. It can be used singly or combined.
2. Compared with civil type and fabricated type clean room of hundred clean level, it has low running cost and fast effect and can be easily installed.
3.Unique designed air duct effectively controls the noise.
4.Uniform flow design of main working area can protects the operators and prevent environmental pollution and cross contamination of products.
5.Intelligent control mode and alarm system ensure the reliability of running.
Our factory with competitive price
Automatic production line.
Nearly 20 years experience in cleanroom industry.
We are an expert in providing customized solutions.
Timely delivery with perfect quality.
Fortune 500 companies’ choice.
Have passed ISO9001.2008 certification.
External size (mm)
Work zone (mm)
|Purification rank||Class 100(ISO5)|
|Air speed||0.45m/s +_20%|
1: Entirety Stainless Steel 201/304/316.(T=1.2/1.5mm)
2: External and internal side is steel with power coated. (T=1.2/1.5mm)
1: Air Speed according to frequency converter control .
2: Gel Sealant High Efficiency HEPA air filter for high purification rank
3: Wind speed detection, Constant temperature and constant humidity
Detector according to client request install
4: DOP/PAO Port and differential Pressure Guage for HEPA /secondary filter so that remind of you change the air filter in time
5: 5 different filter configuration available utilizing combination of G4,F8.H13,H14 and PLF Screens .
6; GMP Modular design with minimized joints and seams.
7: PVC strip curtains available
8; Energy Efficient high air volume fan to minimize operating cost,
|Filter step||3 Step|
|HEPA filter||99.995% @ 0.3um Gel sealant mini--pleats HEPA Air Filter|
|Secondary filter||F8 pocket air filter|
|Pre-filter Efficiency||G4 Z-Line panel air filter|
|Power supply||380V/50HZ OR 220V/50HZ|
|Packing material||Standard Export Poly wood Packing(Fumigant free material)|
