Pharmacy Power Coated Clean Room Booth , Class 100 Modular Clean Rooms

Certification
China KeLing Purification Technology Company certification
China KeLing Purification Technology Company certification
Customer Reviews
Keling had successfully supplied us following products on 25 Oct.2017 against PO NO.M170807; Their supplied Air Filters have been working satisfactorily since installation.We are satisfied with their products.

—— SIMPOR PHARMA

Since we do coopertae with them, they always offer good quality and keep the delivery on time to us, we do appreicated for their kind support !

—— Nasir

This is to certify that we bought U type air shower tunnel, Air Shower and HEPA filter, Secondary air filter ,perfilter for our project from KeLing Purification Technology Co. Ltd, 3C01 Tian Feng Commerce Square, Mid Building, No. 133, Baiyun AV, Baiyun Disctrict , Guangzhou , GuangDong, China against Contract No: 2014/4119005942 in October 22, 201

—— IATEC,Argentina

Product arrived faster than expected and they sent something special in addition to what I ordered. Nice people and fast service!

—— Mohammed Saad

I'm Online Chat Now

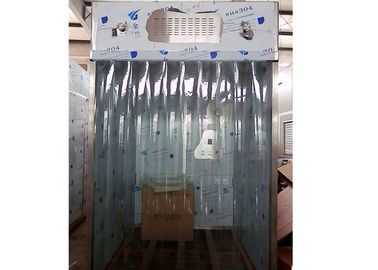

Pharmacy Power Coated Clean Room Booth , Class 100 Modular Clean Rooms

Pharmacy Power Coated Clean Room Booth , Class 100 Modular Clean Rooms
Pharmacy Power Coated Clean Room Booth , Class 100 Modular Clean Rooms

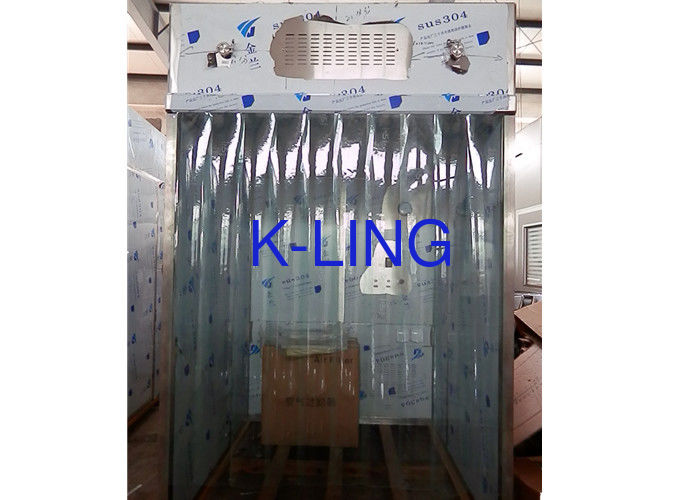

Large Image :  Pharmacy Power Coated Clean Room Booth , Class 100 Modular Clean Rooms

Product Details:
Place of Origin: CHINA
Brand Name: K-LING
Certification: CE,
Model Number: KEL-DB2500
Payment & Shipping Terms:
Minimum Order Quantity: 1SET
Price: NEGOATION
Packaging Details: PLOWOOD PACKING
Delivery Time: 8 WORKING DAYS
Payment Terms: Ex works/FOB/CIF/ CNF
Supply Ability: 200Sets/month
Detailed Product Description
Other Name: Down Flow Booth External Size: 2800X2600X2400mm
Internal Size: 2500X2500X1950mm Mateiral: Stainless Steel 201(T=1.0mm)
Air Speed: 0.45+_0.2 M/s DOP Port: 1 PCS
UV Light: 1 Pcs
High Light:

pharmaceutical sampling booth

,

downflow booth



Pharmacy Power Coated Clean Room Booth , Class 100 Modular Clean Rooms​




Quicky Detail


External Size : 2600x2800x2400mm
Internal Size: 2500x2500x1950mm
Purification rank: Class100
HEPA filter efficiency: 99.999%@0.3um
Air speed:0.3-0.6m/s
Power:380V/50HZ or 380V/60HZ


Introduction:

Vertical Dispensing  DownFlow booth provide containment by utilizing high velocity air to capture air borne dust particles. Control exposure risk to hazardous materials for a wide variety of equipment and processes. Protecting the operator during sensitive tasks, this complied with GMP practices.




Operating features:


 1:  Automatic changeable frequency system monitors the air velocity to ensure its stability in the

    working area.

2:  Differential pressure gauge is equipped to real-time monitor the filters.

3: Unique designed air duct effectively controls the noise.

4: Uniform flow design of main working area can protects the operators and prevent encironmental

     pollution and cross contamination of products.

5: Intelligent control mode and alarm system ensure the reliability of running.

6: Smooth transitions of wall and ground can eliminate the blind angle.

7: Humanized design simplifies the operation of all kinds of filters




Technical Parameter :



 Model

KEL-DB2525

External size(mm)

 2400x2800x2400mm

Internal size(mm)

2500X2500X1950mm

Cleanliness:

Class100

HEPA Filter

 99.995@0.3um

Pre-filter

   75%@5um

Air velocity

  0.2-0.5m/s

Noise

57-65dB

Material

Stainless steel 201/304 or steel with power coated

Power

380V/50hz

Standard

(FS 209E)USA .



Customer’s design is available.




Pharmacy Power Coated Clean Room Booth , Class 100 Modular Clean Rooms 0




 1: Fan filter units      2: HEPA air filter      3: Purification lamp      4: Pressure gauge    5: Secondary air filter

 6: Control board   7: PVC anti-static curtain       8: Pre-filter          9: Power cable      10: Maintenance board

 11: Diffuser board



Factory test:


All of equipment is individually factory tested for safety and performance in accordance with international Standards. Each unit is shipped with a documentation outlining the tests undertaken and the units individual results for each unit.


Factory test include:

-- functional test and visual inspection
-- electrical safety tests
-- air velocity testing
-- purification rank test (if need)


Warranty:

Our equipment is warranty for 1 year excluding consumable parts and accessories.
All equipment is shipped with a comprehensive use’s manual complete with a report documenting all test procedures.
Additional IO/OQ/GMP document is available upon request.
Contact our sales representative for specific warranty details or document request.


Consumable parts illustration:

1: Pre-filter: each one should be replacement in each 6 month, but it can refresh no more three times.

2: HEPA filter: each one should be replacement in each half and one years.


Why you choose K-LING Company ?



Professional sales:


• We value every inquiry that you sent to us, ensure quick competitive offer.
• We cooperate with customer to bid tenders. Provide all necessory docuement.
• We are a sales team, with all techinical support from engineer team



Punctual delivery time:


• Production / inspection report provide before shipment
• Shipping notice or insurance for you when your goods is shipped.




  After sales service:


• We respect your feed back after receive the goods.
• We provide one year warranty after goods arrive.
• We promise all spare parts available in lifetime use.
• We care of your complain within 48hours.



Payment Term:

 T/T in advance, 30% before place the order, 70% when you see copy BL
Or 30% T/T in advance before place the order, 70% LC at sight.
