Class 100 Intelligent Air Shower Tunnel For Semiconductor Industry

China Class 100 Intelligent Air Shower Tunnel For Semiconductor Industry supplier

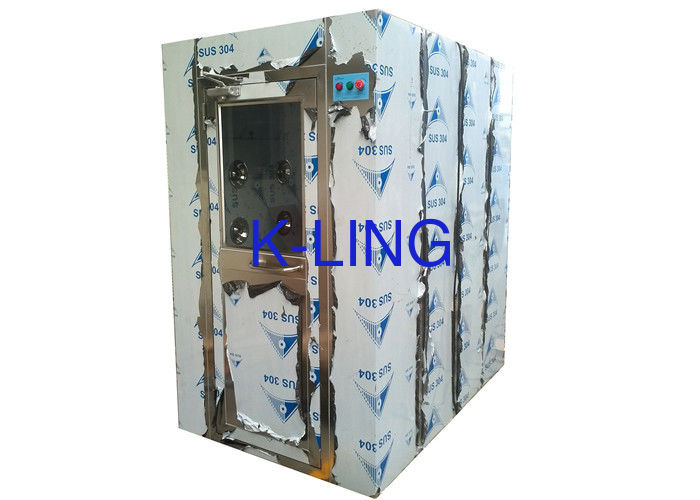

Large Image :  Class 100 Intelligent Air Shower Tunnel For Semiconductor Industry

Product Details:

Place of Origin: CHINA
Brand Name: K-LING
Certification: CE
Model Number: KEL-ASP1200T 5SERISE

Payment & Shipping Terms:

Minimum Order Quantity: 1SET
Price: NEGOATION
Packaging Details: PLOWOOD PACKING
Delivery Time: 15 WORKING DAYS AFTER DEPOSIT
Payment Terms: T/T, LC AT SIGHT
Supply Ability: 50UNITS/MONTH
Contact Now
Detailed Product Description
Other Name: Air Shower Passage External Size: 1200X5000X2200mm
Internal Size: 800x4900x2000mm Material: Cold Roll Steel
Certificated: CE Purificaiton Rank: Class 100
HEAP Filter: 630x630x69mm

Class 100 Intelligent Air Shower Tunnel For Semiconductor Industry





Quicky Detail:



Size: 1200x5000x2300mm

internal size : 790x4900x2000mm

Purification rank: Class100

HEPA filter efficiency: 99.999%@0.3um

Personal per cycle: 12-50 person

SUS nozzle: 80pcs

Blower way: three size blow

Air speed :>25m/s

Power: 380V/50HZ





Applications:



Food industry,Aerospace,Life sciences,Biotechnology,Medical devices,Plastic injection module,Electronics assembly,Hospital pharmacy





Introduction:



Air  Shower Tunnel is supporting equipment for clean room and workshop. It can remove the dust adhering of the operator/gIntelligent man-machine dialogue interface makes operation chain, such as real-time monitoring state oods and block the unclean air into the working area as an air lock.

Air Shower tunnel can be divided into two kinds for different purpose,AS for operator and AS for goods.
It has various modes of showering from single-side,double-side or top. It is also equipped with various kinds of doors in manual,in auto or shutter etc. There are five patents and Know-How in our products,such as pulse jet showering  air revoluing showering and very thin high speed fan etc.They have brought a revolution to Air Shower.
It can be widely used in electronics,precision instrument,food,pharmacy and scientific research fields







Operating Features :



1 :  Microelectronics control system with LED display for the shower time.

2:  the air shower duration time adjustable from 0-99second.

3:  Infrared ray inductor for inside personal shower automatic from three side

4:  Human being voice remind of user progress in chamber.

5:  Emergency switch help you out of trouble, Comply with CE Test

6: there is follow type : side blowing air shower tunnel, two men double sides blowing air shower  tunnel.
     single man  with three side blowing
7:  Material: color steel plate, cold rolled plate with plastic spraying, stainless steel plate
8:  High-tech smart programmable microprocessor controller
9:  Automatic control operation, two-door electronic interlocking, infrared sensors, automatic air showerin







                                  KEL-AS1200T  Air Shower Tunnel

MODEL

KEL-AS1200T-5

External size (mm)

(WXDXH)

1200x5000x2200mm

Work zone (mm)

(WXDXH)

800x4900x2000mm

Persons per cycle

  10-50 person

Air shower Duration

Factory set at 12 second (adjustable)

 Air shower direction

Three side with blowing

Material

(Option)

1: Entirety Sus304.

2: Entirety sus201.

3: External is steel with power coated, Internal is SUS304.

4: External is steel with power coated. Internal is SUS201.

Control system

1: PCL control system with LED display for the shower time.

2: The shower time from 0-99second. (Adjustable).

3: Infrared ray inductor for inside personal shower automatic.

4: Human voice prompt system.

5: with CE remark

The power of Fan

380V/50HZ/750W

(2 set)

Air flow of fan(m3/h)

  1300m3/h

Fan run (r/min)

2800r/min

Nozzle in stain less steel

  80pcs

Wind speed(m/s)

 24-29m/s

Noise level(dB)

 <62dB

LED Fluorescent Lamp

20wx6



HEPA Filter

Size(mm)

630X630X69mm

Efficiency

99.99%@0.3um

Air velocity

1000(m3/h)

Initial resistance(pa)

   <220pa



Pre-filter

Size(mm)

 775x380x17

Efficiency

 75% @ 0.5um

Resistance(pa)

  <30 Pa

Electrical

Power supply

 380v/50Hz

   Net power(kw)

     0.75X5 kw

Customer’s design is available.



Air shower Tunnel is a related equipment for clean workshop and clean room, which not only removes dust from the surface of people and goods, but also plays as a role of air lock valve to prevent unpurified air from flowing into the clean area. It can be used with all supporting clean room and clean workshop.

a: there is follow type : side blowing air shower tunnel, two men double sides blowing air shower  tunnel.
     single man  with three side blowing
b:  Material: color steel plate, cold rolled plate with plastic spraying, stainless steel plate
c:  High-tech smart programmable microprocessor controller
d:  Automatic control operation, two-door electronic interlocking, infrared sensors, automatic air showering
e:   Customizable




Factory test:



All of equipment is individually factory tested for safety and performance

in accordance with international Standards. Each unit is shipped with a documentation outlining the tests undertaken and the units individual results for each unit.

Factory test include:

-- functional test and visual inspection

-- electrical safety tests

-- air velocity testing

-- purification rank test (if need)





Warranty:



Our equipment is warranty for 1 year excluding consumable parts and accessories.

All equipment is shipped with a comprehensive use’s manual complete with a report documenting all test procedures.

Additional IO/OQ/GMP document is available upon request.

Contact our sales representative for specific warranty details or document request.





Consumable parts illustration:



1: Pre-filter: each one should be replacement in each 6 month, but it can refresh no more three times.



2: HEPA filter: each one should be replacement in each half and one years.
