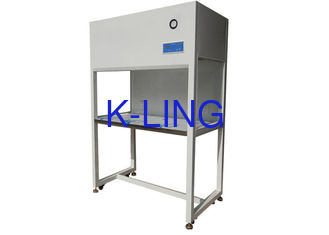

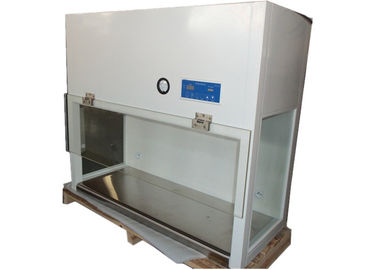

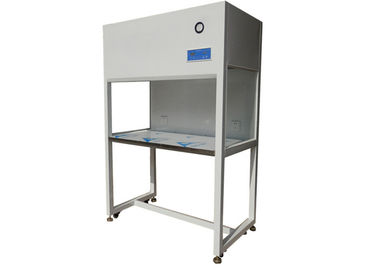

Vertical Laminar Flow Cabinets / Laminar Flow Bench With Filter Pollution Monitoring

Vertical Laminar Flow Cabinets / Laminar Flow Bench With Filter Pollution Monitoring

Quicky Detail:

External size:  1000x700x1800mm

Internal Size:  900x600x650mm

Purification rank: Class100

HEPA filter efficiency:99.99%- 99.999%@0.3um

Front of the clean bench with a glass

Air speed :0.3-0.6m/s

Introduction:

   Vertical laminar flow cabinet are high-performance exhaust filter table at all times maintain the cleanliness of the control region, the entire cycle of airflow design, around the table with the lower spring-loaded door, can be flexible positioning. Efficient isolation air curtain to prevent cross-infection. Cleanliness level ISO5 up (CLASS100 level), colonies with low, long table to ensure the cleanliness, speed adjustable to meet your different needs of the
wind speed, high-displacement, low noise, high-intensity, low vibration, low power consumption, so that you as
the lowest production costs, the highest demand for the cleaner.

Applications:

clean rooms, electronics assembly, semiconductors, pharmaceutical .aerospace and medical devices industries, mycology and food microbiology, plant and mammalian Cell culture, applications benefiting from the isolated work surface frames design which virtually eliminates vibration.

Operating features:

A:  Stainless steel interior (side panels and work surface) ensure optimal cleanliness and chemical resistance

     for sensitive work in pharmaceuticals, biotechnology, and electronics

B: Multi-speed filter/blower modules provide a continuous wash of HEPA- or ULPA-filtered air.

C : Internal baffling plates and anodized aluminum diffuser panel ensure uniform air speed across
      the work area

D:  Face velocity is adjustable from less than 90 FPM (0.45 m/s) to higher than 130 FPM (0.66 m/s)

E:  Built-in recessed illuminator provides diffused lighting without interfering with laminar flow

F:  Electropolishing available to remove embedded subsurface particles in stainless steel surfaces

G:  LED control board with CE remark, low operating noise levels

J:  Stainless steel or antimicrobial coating on all painted surfaces minimizes contamination. Long –life HEPA

     air filter for supply air flow.

H:  American Dwyer pressure remind of you replace the HEPA filter in regular.

Illustration:

1:Pre-Filter    2: Fans      3: HEPA filter   4: Control board   5: lamp

6:Socket     7:Glass     8: SUS table board   9:wheel       10:Leg

Note: This work station is designed for particle-sensitive applications but does not protect operators
against hazardous fumes, vapors or aerosols.

Technical Parameter:

  Customer’s design is available.

Types of Laminar Flow Cabinets:

Laminar Flow Cabinets can be produced as both horizontal and vertical cabinets. There are many different types of cabinets with a variety of airflow patterns for different purposes.

Vertical Laminar Flow Cabinets
Horizontal Laminar Flow Cabinets
Laminar Flow Cabinets and Hoods
Laminar Flow Benches and Booths

All ensure a work space devoid of contaminants and may be tailored to the lab requirements.

Payment Term:

T/T in advance, 30% before place the order, 70% when you see copy BL

Or 30% T/T in advance before place the order, 70% LC at sight.

Factory test:

All of equipment is individually factory tested for safety and performance in accordance with international Standards. Each unit is shipped with a documentation outlining the tests undertaken and the units individual results for each unit.

Factory test include:

-- functional test and visual inspection

-- electrical safety tests

-- air velocity testing

-- purification rank test (if need)

Warranty:

Our equipment is warranty for 1 year excluding consumable parts and accessories.

All equipment is shipped with a comprehensive use’s manual complete with a report documenting all test procedures.

Additional IO/OQ/GMP document is available upon request.

Contact our sales representative for specific warranty details or document request.

Consumable parts illustration:

1: Pre-filter: each one should be replacement in each 6 month, but it can refresh no more three times.

2: HEPA filter: each one should be replacement in each half and one years.

Why you choose K-LING Company ?

Punctual delivery time:

• Production / inspection report provide before shipment

• Shipping notice or insurance for you when your goods is shipped.

After sales service:

• We respect your feed back after receive the goods.

• We provide one year warranty after goods arrive.

• We promise all spare parts available in lifetime use.

• We care of your complain within 48hours.
