Stainless Steel 304 Laminar Flow Cabinets Laboratory Clean Room Equipment

China Stainless Steel 304 Laminar Flow Cabinets Laboratory Clean Room Equipment supplier

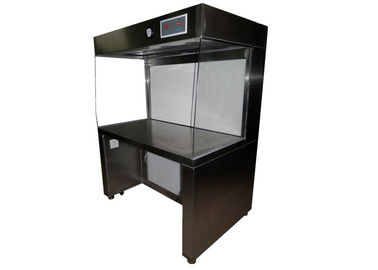

Large Image :  Stainless Steel 304 Laminar Flow Cabinets Laboratory Clean Room Equipment

Product Details:

Place of Origin: China
Brand Name: K-LING
Certification: CE,
Model Number: KEL-HCB-13

Payment & Shipping Terms:

Minimum Order Quantity: 1SET
Price: NEGOATION
Packaging Details: PLOWOOD PACKING
Delivery Time: 8 WORKING DAYS
Payment Terms: Ex works/FOB/CIF/ CNF
Supply Ability: 500Sets/month
Contact Now
Detailed Product Description

Stainless Steel 304 Laminar Flow Cabinets Cleanroom Products For Laboratory





Quicky Detail



External size:  1500x850x1580mm

Internal Size:  1450x600x650mm

Purification rank: Class100

HEPA filter efficiency:99.999%@0.3um

Air speed :0.3-0.6m/s





Operating features:



 A: Select the filters to meet your requirement: HEPA filters are rated 99.99% efficient at removing
     particles 0.3 microns or larger, and ULPA filters are rated 99.999% efficient @ 0.12 micron particles.



 B:  The low-profile design of these filter/fan units takes up minimal floor space while leaving plenty of
       working space above the work surface.



C:  All models include a powder-coated steel stand with adjustable leveling feet that raises the work

      surface to 787 mm above the floor.



D: American Dwyer pressure remind of you replace the HEPA filter in regular.


E:  The Horizontal Laminar Flow cabinet station also includes a recessed fluorescent lighting assembly that
       provides shadow-free illumination of the entire work area without disturbing the air flow.

 F:  All keling  laminar flow cabinet clean benches provide ISO Class 4 air cleanliness within the  work zone as per      ISO 14644.1, significantly cleaner than the usual Class 5 classification on clean benches offered by the
       competition.

G:  The intelligent blower system maintains airflow as the filter becomes loaded, ensuring optimum efficiency
       and product protection.

H:  An additional disposable pre-filter traps large particles in the inflow air prior to  reaching the main filter,
     protecting against damage and prolonging filter life.





Technical Parameter



MODEL

                            KEL -HCB-2

External size (mm)

(WXDXH)

                       1300x850x1580mm

Work zone (mm)

(WXDXH)

                         1280 x650x600mm

Purification rank

                      FS209E 100Rank

Rating airflow(m3/h)

                         1800m3/h

Filtration efficiency

          More than 99.99%@0.3um  H13-H14

Average wind speed

                      0.3-0.6m/s

Intensity of illumination

                          >300lx

pressure gauge

          America Dwyer pressure watch 1 pcs

UV Light

                              1 pcs

Fluorescent lamp

                                        30Wx1

Material

(Option)

1:Entirety Sus201/304.

2:  External is steel with powder coated, Internal is SUS304

4:  External is steel with powder coated. Internal is SUS301

Power

                          450w

 Noise

                        <65dB

Power supply

               110v/ 60HZ  220V-240V AC 50HZ

  Customer’s design is available.





Note: This laminar flow cabinet is designed for particle-sensitive applications but does not protect operators
against hazardous fumes, vapors or aerosols.

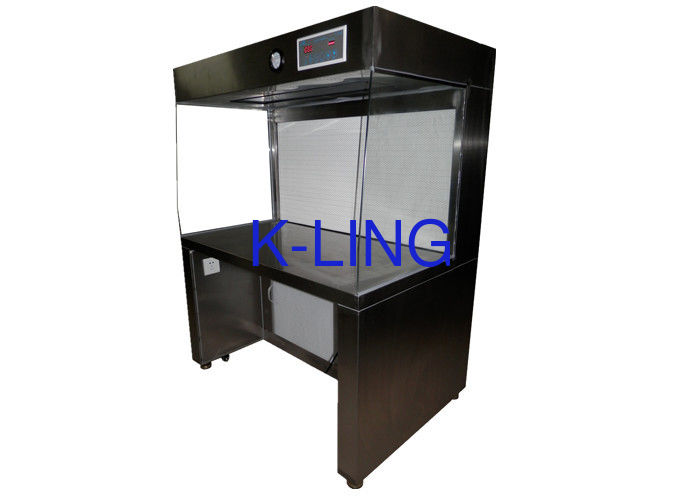

Stainless Steel 304 Laminar Flow Cabinets Laboratory Clean Room Equipment



Company Information :


Keling Purification Technology Co., Ltd engaged in air purification field for many years, product have clean room equipment and air filter,such as : air shower tunnel, air shower room, cleanroom air shower, pass box ,dispensing booth, laminar air flow units, dynamic pass thrus, clean Pass box, pass thrus, portable clean shed, Laminar flow bench, Hardwall cleanroom, softwall cleanroom, HEPA units,clean shed, clean booth, fan filter unit, Mini-pleats ULPA/HEPA filter, V-cell filter, pocket filter, panel filter, z-line filter,cleanroom aluminum fitting, sandwich panel, sticky mat and so on.




Factory test:



All of equipment is individually factory tested for safety and performance in accordance with international Standards. Each unit is shipped with a documentation outlining the tests undertaken and the units individual results for each unit.





Factory test include:



-- functional test and visual inspection

-- electrical safety tests

-- air velocity testing

-- purification rank test (if need)





Warranty:



Our equipment is warranty for 1 year excluding consumable parts and accessories.

All equipment is shipped with a comprehensive use’s manual complete with a report documenting all test procedures.

Additional IO/OQ/GMP document is available upon request.

Contact our sales representative for specific warranty details or document request.





Consumable parts illustration:



1: Pre-filter: each one should be replacement in each 6 month, but it can refresh no more three times.



2: HEPA filter: each one should be replacement in each half and one years.





Why you choose K-LING Company ?



Professional sales:

• We value every inquiry that you sent to us, ensure quick competitive offer.

• We cooperate with customer to bid tenders. Provide all necessory docuement.

• We are a sales team, with all techinical support from engineer team





Punctual delivery time:



• Production / inspection report provide before shipment

• Shipping notice or insurance for you when your goods is shipped.

After sales service:

• We respect your feed back after receive the goods.

• We provide one year warranty after goods arrive.

• We promise all spare parts available in lifetime use.

• We care of your complain within 48hours.





Payment Term:



 T/T in advance, 30% before place the order, 70% when you see copy BL

Or 30% T/T in advance before place the order, 70% LC at sight.
