Photoelectric Plant ISO 5 Benchtop Laminar Flow Hood Cleaning , Level Clean Bench 220V

China Photoelectric Plant ISO 5 Benchtop Laminar Flow Hood Cleaning , Level Clean Bench 220V supplier

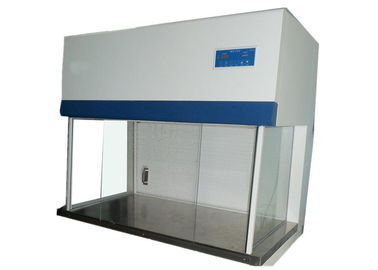

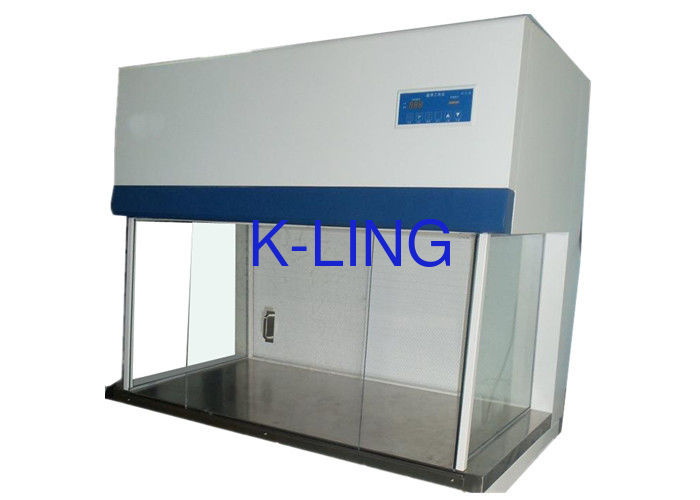

Large Image :  Photoelectric Plant ISO 5 Benchtop Laminar Flow Hood Cleaning , Level Clean Bench 220V

Product Details:

Place of Origin: China
Brand Name: K-LING
Certification: CE,
Model Number: KEL-HCB-2

Payment & Shipping Terms:

Minimum Order Quantity: 1SET
Price: NEGOATION
Packaging Details: PLOWOOD PACKING
Delivery Time: 8 WORKING DAYS
Payment Terms: Ex works/FOB/CIF/ CNF
Supply Ability: 500Sets/month
Contact Now
Detailed Product Description

Photoelectric Plant ISO 5 Benchtop Laminar Flow Hood Cleaning , Level Clean Bench 220V





Quicky Detail



External size:  1340x850x1280mm

Internal Size:  1180x600x650mm

 Purification rank: Class100

Air speed adjustable

Clean and Durable Construction

sus working area

UV light option





Introduction:



All materials used in this lamianr flow cabinets hood/  work station are selected for durability and contamination control. Interior surfaces, including the side panels and work surface, are 304 stainless steel; on an optional basis, these components can be electropolished to provide an ultra-clean finish free of subsurface contaminants. The
exterior features a chip-resistant, powder-coated finish. The display panel, including the ON/OFF switch,
Minihelic? backpressure gauge, and blower speed control, is mounted above the work area. For operational
convenience, a duplex 220VAC/50Hz power outlet is included on a standard basis.





Applications:



keling's Horizontal Laminar Flow  cabinets hood provides an economical work environment that exceeds the most
stringent contamination requirements in the pharmaceuticals, biotech, electronics and semiconductor
industries. clean rooms, electronics assembly, aerospace and medical devices industries.





Operating features:





 1:Powerful filter/blower filter/fan modules provide a back-to-front laminar flow of filtered air

   across  the work surface. T

 2:  The adjustable multi-speed, direct-drive blower lets you adjust air speed to meet your

       requirements.

 3: Horizontal air laminar flow cabinet/laboratory clean hood adopts wind volume adjustable fan system,

     light-touch type switch and dual-speed voltage regulation device to keep wind speed in working area
      in ideal state.

4: Horizontal air laminar flow cabinet hood /laboratory clean hood adopts super thin type  air filter which reduces  static-pressure tank to the smallest size.

5: Horizontal air laminar flow cabinet hood / laboratory clean hood is the newest type bench in present market.
The front cover may be opened directly for exchanging filter.


6: American Dwyer pressure remind of you replace the ULPA Air filter in regular.



 7: It also provides an industry-best low noise level of 50dBA.



Technical Parameter



 MODEL

                        KEL-HCB-2

External size (mm)

(WXDXH)

                     1340x850x1280mm

Work zone (mm)

(WXDXH)

                      1180x600x650mm

Purification rank

                     FS209E 100Rank

Display

                    LED Digital Display

Rating airflow(m3/h)

                        1200m3/h

Filtration efficiency

       More than 99.99%@0.3um  H13-H14

 Average wind speed

                         0.3-0.6m/s

  Intensity of illumination

                         >300Lux

      Fluorescent lamp

                           20Wx1

      Material

      (Option)

1:Entirety Sus201/304.

2: External is steel with power coated, Internal is SUS304

3: External is steel with power coated. Internal is SUS201

      Base stand material

 Adopting cold-roll steel plate with corrosion-proof coating

         Power

                                  280w

        Noise

                                 <65dB

        Electrical

                    AC 110V-240V / 50-60HZ

        Net  weight

                                  230kgs

     Gross weight

                                 270kgs

      Packing  size

                       1200x800x1750 mm

Customers design is available.



Types of Laminar Flow Cabinets:



Laminar Flow Cabinets can be produced as both horizontal and vertical cabinets.

There are many different types of cabinets with a variety of airflow patterns for different purposes.



Vertical Laminar Flow Cabinets
Horizontal Laminar Flow Cabinets
Laminar Flow Cabinets and Hoods
Laminar Flow Benches and Booths



All ensure a work space devoid of contaminants and may be tailored to the lab requirements.



Factory test:



All of equipment is individually factory tested for safety and performance in accordance with international Standards. Each unit is shipped with a documentation outlining the tests undertaken and the units individual results for each unit.





Factory test include:



-- functional test and visual inspection

-- electrical safety tests

-- air velocity testing

-- purification rank test (if need)





Warranty:



Our equipment is warranty for 1 year excluding consumable parts and accessories.

All equipment is shipped with a comprehensive use’s manual complete with a report documenting all test procedures.

Additional IO/OQ/GMP document is available upon request.

Contact our sales representative for specific warranty details or document request.





Consumable parts illustration:



1: Pre-filter: each one should be replacement in each 6 month, but it can refresh no more three times.



2: HEPA filter: each one should be replacement in each half and one years.







Payment Term:



 T/T in advance, 30% before place the order, 70% when you see copy BL

Or 30% T/T in advance before place the order, 70% LC at sight.
