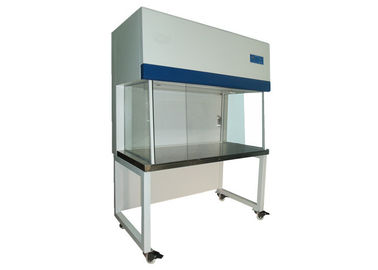

Class 100 Movable Horizontal Laminar Flow Cabinet For Biological Pharmacy Clean Room

China Class 100 Movable Horizontal Laminar Flow Cabinet For Biological Pharmacy Clean Room supplier

Large Image :  Class 100 Movable Horizontal Laminar Flow Cabinet For Biological Pharmacy Clean Room

Product Details:

Place of Origin: China
Brand Name: K-LING
Certification: CE,
Model Number: KEL-HCB-1340

Payment & Shipping Terms:

Minimum Order Quantity: 1SET
Price: NEGOATION
Packaging Details: PLOWOOD PACKING
Delivery Time: 8 WORKING DAYS
Payment Terms: Ex works/FOB/CIF/ CNF
Supply Ability: 500Sets/month
Contact Now
Detailed Product Description

Class 100 Movable Horizontal Laminar Flow Cabinet For Biological Pharmacy Clean Room


Quicky Detail

External size:  1340x800x1800mm
Internal Size:  1180x620x575mm
Purification rank: Class100
HEPA filter efficiency:99.99%- 99.999%@0.3um
HEPA filter size : 1170x610x69
Air speed :0.3-0.6m/s
Power: 220V/50HZ


Introduction:

Horizontal Laminar Flow Cabinets receive their name due to the direction of air flow which comes from above but then changes direction and is processed across the work in a horizontal direction. The constant flow of filtered air
provides material and product protection.


Applications:

Laminar Flow Cabinets can be tailor made to the specific requirements of the laboratory and are also ideal for general lab work, especially in the medical, pharmaceutical, electronic and industrial sectors.


Operating features:

1: It is manufactured for the most demanding clean room applications, offering a combination of value, high quality construction.
2: LED control board with CE remark, low operating noise levels
3: Stainless steel or antimicrobial coating on all painted surfaces minimizes contamination.
Long –life HEPA air filter for supply air flow.
4: American Dwyer pressure remind of you replace the HEPA filter in regular.
5: Laminar flow cabinet is individually factory tested for safety and performance in accordance with
international standards
6: Laminar Flow cabinet benches have been tested for cross-contamination and product protection
using microbiological test methods specified in EN12469
7: All keling products are manufactured for the most demanding laboratory applications. All
components are designed for maximum chemical resistance and enhanced durability for a long
service life. The main body of the clean bench is constructed of industrial grade electro-galvanized steel

Technical Parameter

MODEL

                                 KEL -HCB-1340

External size (mm)
(WXDXH)

                       1340x800x1800mm

Work zone (mm)
(WXDXH)

                         1180x620x575mm

Purification rank

                      FS209E 100Rank

Rating airflow(m3/h)

                         1800m3/h

Filtration efficiency

          More than 99.99%@0.3um  H13-H14

Average wind speed

                      0.3-0.6m/s

Intensity of illumination

                          >300lx

pressure gauge

          America Dwyer pressure watch 1 pcs

UV Light

                              1 pcs

Fluorescent lamp

                                        30Wx1

Material
(Option)

1:Entirety Sus201/304.
2:  External is steel with power coated, Internal is SUS304
4:  External is steel with power coated. Internal is SUS301

Power

                          450w

 Noise

                        <65dB

Power supply

                 220V-240V AC 50HZ

  Customer’s design is available.

Class 100 Movable Horizontal Laminar Flow Cabinet For Biological Pharmacy Clean Room
Factory test:

All of equipment is individually factory tested for safety and performance in accordance with international Standards. Each unit is shipped with a documentation outlining the tests undertaken and the units individual results for each unit.


Factory test include:

-- functional test and visual inspection
-- electrical safety tests
-- air velocity testing
-- purification rank test (if need)


Warranty:

Our equipment is warranty for 1 year excluding consumable parts and accessories.
All equipment is shipped with a comprehensive use’s manual complete with a report documenting all test procedures.
Additional IO/OQ/GMP document is available upon request.
Contact our sales representative for specific warranty details or document request.


Consumable parts illustration:

1: Pre-filter: each one should be replacement in each 6 month, but it can refresh no more three times.

2: HEPA filter: each one should be replacement in each half and one years.


Payment Term:

 T/T in advance, 30% before place the order, 70% when you see copy BL
Or 30% T/T in advance before place the order, 70% LC at sight.
