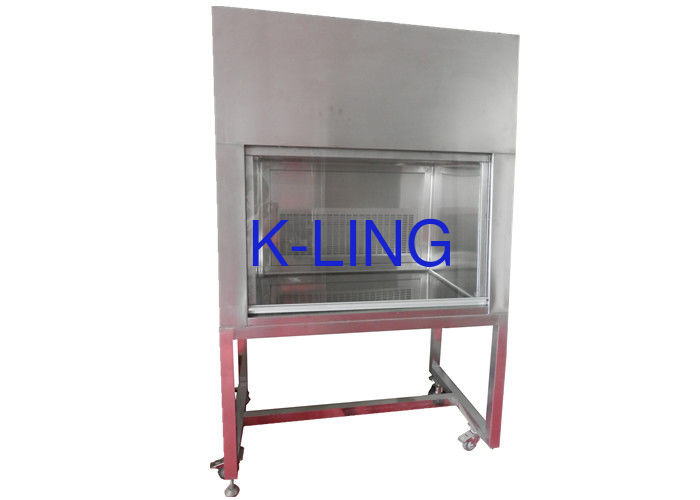

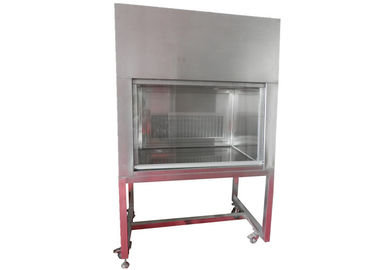

Medical Safety Vertical Laminar Flow Cabinets , Clean Bench Workstation 220 Volt
External size: 1160x760x1780mm
Internal Size: 1000x700x620mm
Purification rank: Class100
HEPA filter efficiency:firstname.lastname@example.org
HEPA filter size : 920x610x50
Air speed :0.3-0.6m/s
Power: 110V/60HZ or 220V/50HZ
Laminar Flow Cabinets, or laminar air flow cabinets as they are also known, are normally made of stainless steel with no gaps or joints thereby preventing the build-up of bacteria from collecting anywhere in the working zone.
Laminar Flow Cabinets are also known as clean benches because the air for the working environment is thoroughly cleaned by the precision filtration process.
Types of Laminar Flow Cabinets:
Laminar Flow Cabinets can be produced as both horizontal and vertical cabinets. There are many different types of cabinets with a variety of airflow patterns for different purposes.
Vertical Laminar Flow Cabinets
Horizontal Laminar Flow Cabinets
Laminar Flow Cabinets and Hoods
Laminar Flow Benches and Booths
All ensure a work space devoid of contaminants and may be tailored to the lab requirements
External size (mm)
Work zone (mm)
More than email@example.com H13-H14
Average wind speed
Intensity of illumination
America Dwyer pressure watch 1 pcs
Customer’s design is available.
1: It is manufactured for the most demanding clean room applications, offering a combination of value, high quality construction.
2: LED control board with CE remark, low operating noise levels
3: Stainless steel or antimicrobial coating on all painted surfaces minimizes contamination.
Long –life HEPA air filter for supply air flow.
4: American Dwyer pressure remind of you replace the HEPA filter in regular.
5: Comply with Australia EN12469 and the European Union AS1386.5 standard, clean grade reach
All of equipment is individually factory tested for safety and performance in accordance with international Standards. Each unit is shipped with a documentation outlining the tests undertaken and the units individual results for each unit.
Factory test include:
-- functional test and visual inspection
-- electrical safety tests
-- air velocity testing
-- purification rank test (if need)
Our equipment is warranty for 1 year excluding consumable parts and accessories.
All equipment is shipped with a comprehensive use’s manual complete with a report documenting all test procedures.
Additional IO/OQ/GMP document is available upon request.
Contact our sales representative for specific warranty details or document request.
Consumable parts illustration:
1: Pre-filter: each one should be replacement in each 6 month, but it can refresh no more three times.
2: HEPA filter: each one should be replacement in each half and one years.
T/T in advance, 30% before place the order, 70% when you see copy BL
Or 30% T/T in advance before place the order, 70% LC at sight.
