Horizontal Lab Class100 Cleanroom Laminar Flow Cabinet / Laminar Airflow Bench

China Horizontal Lab Class100 Cleanroom Laminar Flow Cabinet / Laminar Airflow Bench supplier

Large Image :  Horizontal Lab Class100 Cleanroom Laminar Flow Cabinet / Laminar Airflow Bench

Product Details:

Place of Origin: China
Brand Name: K-LING
Certification: CE,
Model Number: KEL-HS-840

Payment & Shipping Terms:

Minimum Order Quantity: 1SET
Price: NEGOATION
Packaging Details: PLOWOOD PACKING
Delivery Time: 8 WORKING DAYS
Payment Terms: Ex works/FOB/CIF/ CNF
Supply Ability: 500Sets/month
Contact Now
Detailed Product Description

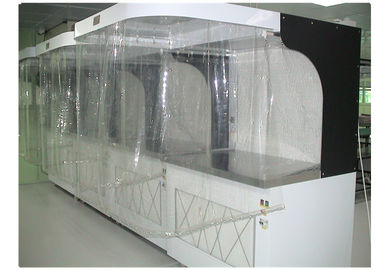

Horizontal Lab Class100 Cleanroom Laminar Flow Cabinet / Laminar Airflow Bench





Quicky Detail:



External size:  840x825x1430mm

Internal Size:  720x650x570mm

Purification rank: Class100

Material : outsids is steel plated with whilte color powder coated,

                working table is stainless steel304

HEPA filter: 760x610x50mm

Air speed :0.3-0.6m/s

Power: 110V/ 60HZ





Introduction:



Laminar flow cabinets can maintain a working area devoid of contaminants. Many medical and research laboratories require sterile working environments in order to carry out specialised work. Laminar Flow Cabinets
can provide the solution.





Applications:



 it is suitable for a variety of applications and especially where an individual clean air environment is required for smaller items,such as the particle sensitive electronic devices in the laboratory, Laminar Flow Cabinets can be tailor made to the specific requirements of the laboratory and are also ideal for general lab work, especially in the medical, pharmaceutical, electronic and industrial sectors.





Operating features:



1: laminar flow cabinets are manufactured for the most demanding clean room applications, offering a combination of value, high quality construction.

2: LED control board with CE remark, low operating noise levels

3: 100% exhaust usd for Micro-electronics plants

4: Stainless steel or antimicrobial coating on all painted surfaces minimizes contamination.

Long –life HEPA air filter for supply air flow.

5: American Dwyer pressure remind of you replace the HEPA filter in regular.



Technical Parameter:



MODEL

                            KEL -HS-840

External size (mm)

(WXDXH)

                       840x825x1430mm

Work zone (mm)

(WXDXH)

                         720x650x570mm

Purification rank

                      FS209E 100Rank

Rating airflow(m3/h)

                         1200m3/h

Filtration efficiency

          More than 99.99%@0.3um  H13-H14

Average wind speed

                      0.3-0.6m/s

Intensity of illumination

                          >300lx

pressure gauge

          America Dwyer pressure watch 1 pcs

UV Light

                              1 pcs

Fluorescent lamp

                                        30Wx1

Material

(Option)

1:Entirety Sus201/304.

2:  External is steel with power coated, Internal is SUS304

4:  External is steel with power coated. Internal is SUS301

Power

                          450w

 Noise

                        <65dB

Power supply

               110v/ 60HZ  220V-240V AC 50HZ

  Customer’s design is available.





Types of Laminar Flow Cabinets:



Laminar Flow Cabinets can be produced as both horizontal and vertical cabinets.

There are many different types of cabinets with a variety of airflow patterns for different purposes.

Vertical Laminar Flow Cabinets
Horizontal Laminar Flow Cabinets
Laminar Flow Cabinets and Hoods
Laminar Flow Benches and Booths



All ensure a work space devoid of contaminants and may be tailored to the lab requirements





Factory test:



All of equipment is individually factory tested for safety and performance in accordance with international Standards. Each unit is shipped with a documentation outlining the tests undertaken and the units individual results for each unit.





Factory test include:



-- functional test and visual inspection

-- electrical safety tests

-- air velocity testing

-- purification rank test (if need)





Warranty:



Our equipment is warranty for 1 year excluding consumable parts and accessories.

All equipment is shipped with a comprehensive use’s manual complete with a report documenting all test procedures.

Additional IO/OQ/GMP document is available upon request.

Contact our sales representative for specific warranty details or document request.





Consumable parts illustration:



1: Pre-filter: each one should be replacement in each 6 month, but it can refresh no more three times.



2: HEPA filter: each one should be replacement in each half and one years.





Why you choose K-LING Company ?



Professional sales:



• We value every inquiry that you sent to us, ensure quick competitive offer.

• We cooperate with customer to bid tenders. Provide all necessory docuement.

• We are a sales team, with all techinical support from engineer team





Punctual delivery time:



• Production / inspection report provide before shipment

• Shipping notice or insurance for you when your goods is shipped.

After sales service:

• We respect your feed back after receive the goods.

• We provide one year warranty after goods arrive.

• We promise all spare parts available in lifetime use.

• We care of your complain within 48hours.





Payment Term:



 T/T in advance, 30% before place the order, 70% when you see copy BL

Or 30% T/T in advance before place the order, 70% LC at sight.
