Animal Research Lab SS201 Cleanroom Pass Box With Antibacterial Sterilizer Lamp

China Animal Research Lab SS201 Cleanroom Pass Box With Antibacterial Sterilizer Lamp supplier

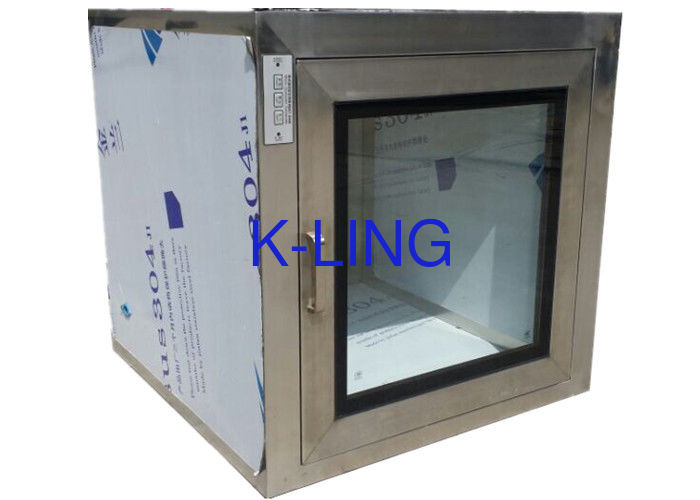

Large Image :  Animal Research Lab SS201 Cleanroom Pass Box With Antibacterial Sterilizer Lamp

Product Details:

Place of Origin: China
Brand Name: K-LING
Certification: CE,
Model Number: KEL-PB750

Payment & Shipping Terms:

Minimum Order Quantity: 1SET
Price: NEGOATION
Packaging Details: PLOWOOD PACKING
Delivery Time: 8 WORKING DAYS
Payment Terms: Ex works/FOB/CIF/ CNF
Supply Ability: 500Set/month
Contact Now
Detailed Product Description

Animal Research Lab SS201 Cleanroom Pass Box With Antibacterial Sterilizer Lamp




Quick Detai :

External Size: 950x750x840mm
Internal size :750x750x750mm
Mechanical/Automatic interlocking for the doors

Swing type doors with view panels
Door open indicator
Optional UV lamp




Introduction:



cleanroom pass box as the auxiliary equipment for clean room, the pass box can reduce the contamination of the clean room effectively.The outer housing of the cleanroom pass box is formed by welding the bended stainless steel.Made of stainless steel plate, the plate for placing articles is flat and smooth.Due to the interlocking device which can be mechanical type or electronic type, when one door of the product opens, the other door is closed. The ultraviolet lamp is available for sterilization. Meanwhile, the specification of the passing window can be customized according to the actual needs.





Applications:

  Cleanroom pass box has a wide application range in the fields of micro fabrication technology, biological laboratory, pharmacy, hospital, food production, LCD, electronmicro-electronics, laboratory, national defense, precise instrument and gauges, bio-pharmaceuticals, opto-electronics field and so on.




Operating features :

1:  Cleanroom pass box is manufactured for the most demanding controlled environment applications.
2:  All components are designed for maximum chemical resistance and enhanced durability for a longservice life.
3:  Cleanroom pass box is constructed of stainless steel inside, making the work zone easy to clean and endurable.
4:  Mechanical and electric interlock are reliable, maintenance-free, maintains clean room integrity by        preventing both door from being opened and the same time
5:  Body of the case is made of high-grade steel by folding and welding and its surface is treated with anti-corrosino and lacquered.
6: With the interlock function,electrical interlock or mechanical interlock is optional.
7: Cleanroom pass box  have UV light and interphone, all sus design is  optional.
8: Window type,desk type and floor type are optional

9: Unpowered or powered roller convey function is optional


Technical Parameter:


      MODEL

  Cleanroom pass box  KEL-PB700

External size (mm)
(WXDXH)

950x750x840mm

Internal size (mm)
(WXDXH)

700x700x700mm

Material

1: Entirety Sus201/304.
2: External is steel with power coated, Internal is SUS304.
3: External is steel with power coated. Internal is SUS301.

Material thickness

1.0/1.2/1.5mm

Glass window size

480x480x8mm

Interlocker

Mechanical or electronic for your choose


Product :

 We have the KEL-PB and KEL-ASPB series of cleanroom pass box . The minimum dimension of the KEL-PB series of products is 500×500×500mm and the maximum dimension is 800×800×800mm. This series of
products can deliver the articles with different sizes. Meanwhile, made of the material of SUS304,
the door and the outer housing of KELING product have high corrosion resistance capability. Working
with the air filter, the ultraviolet lamp can realize sterilization and dust removal for the
articles entering into the clean room to guarantee the clean environment of clean room.
As a specialized cleanroom pass box manufacturer and supplier in China, KELING Company  also provides double person air shower room, open type clean cabinet, easy cleaning cleanroom pass box, and more.

Factory test:

All of equipment is individually factory tested for safety and performance in accordance with international Standards. Each unit is shipped with a documentation outlining the tests undertaken and the units individual results for each unit.
Factory test include:
--functional test and visual inspection
--electrical safety tests
--air velocity testing
--purification rank test (if need)


Warranty:

Our equipment is warranty for 1 year excluding consumable parts and accessories.
All equipment is shipped with a comprehensive use’s manual complete with a report documenting all test procedures.
Additional IO/OQ/GMP document is available upon request.
Contact our sales representative for specific warranty details or document request.


Consumable parts illustration:

1: Pre-filter: each one should be replacement in each 6 month, but it can refresh no more three times.

2: HEPA filter: each one should be replacement in each half and one years.


Payment Term:

 T/T in advance, 30% before place the order, 70% when you see copy BL
Or 30% T/T in advance before place the order, 70% LC at sight.
