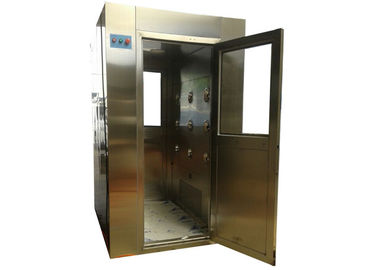

Stainless Steel Tunnel Air Shower With Automatic Door , Clean Room Equipment

Certification
China KeLing Purification Technology Company certification
China KeLing Purification Technology Company certification
Customer Reviews
Keling had successfully supplied us following products on 25 Oct.2017 against PO NO.M170807; Their supplied Air Filters have been working satisfactorily since installation.We are satisfied with their products.

—— SIMPOR PHARMA

Since we do coopertae with them, they always offer good quality and keep the delivery on time to us, we do appreicated for their kind support !

—— Nasir

This is to certify that we bought U type air shower tunnel, Air Shower and HEPA filter, Secondary air filter ,perfilter for our project from KeLing Purification Technology Co. Ltd, 3C01 Tian Feng Commerce Square, Mid Building, No. 133, Baiyun AV, Baiyun Disctrict , Guangzhou , GuangDong, China against Contract No: 2014/4119005942 in October 22, 201

—— IATEC,Argentina

Product arrived faster than expected and they sent something special in addition to what I ordered. Nice people and fast service!

—— Mohammed Saad

I'm Online Chat Now

Stainless Steel Tunnel Air Shower With Automatic Door , Clean Room Equipment

Stainless Steel Tunnel Air Shower With Automatic Door , Clean Room Equipment
Stainless Steel Tunnel Air Shower With Automatic Door , Clean Room Equipment Stainless Steel Tunnel Air Shower With Automatic Door , Clean Room Equipment

Large Image :  Stainless Steel Tunnel Air Shower With Automatic Door , Clean Room Equipment

Product Details:
Place of Origin: CHINA
Brand Name: K-LING
Certification: CE
Model Number: KEL-ASP2500T SERISE
Payment & Shipping Terms:
Minimum Order Quantity: 1SET
Price: NEGOATION
Packaging Details: PLOWOOD PACKING
Delivery Time: 15 WORKING DAYS AFTER DEPOSIT
Payment Terms: T/T, LC AT SIGHT
Supply Ability: 50UNITS/MONTH
Detailed Product Description
Air Velocity: More Than 23m/s Fan: 12 Pcs
Power: 380V/50HZ 0.75KW Material: 304 Stainless Steel
Interlocker: Electri Interlocker System: Voice System Remind Of Your Promte
Product Name: Automatic Door Air Shower Tunnel
High Light:

air shower system

,

electronics clean room

Stainless Steel Tunnel Air Shower With Automatic Door , Clean Room Equipment





Quicky detail



External Size: 2500x6000x2180mm

Internal size :  2000X5880X1910mm

HEPA filter efficiency: 99.999%@0.3um

SUS nozzle:100pcs

Blower way: three diectional blowing

Air speed :>25m/s

Power: 380V/50HZ , 380V/60HZ. 415V/50HZ ,  440v/50HZ





Applications:



Electronic/ microelectronics/ precision electronic/ biological manufacturing industry/ medical
industry/ food processing/ ITO mode/ liquid crystal and conductive photoelectric suggests
that the industry/ PCB/ SMT manufacturing industry/ aerospacevoyage/ aumomobie manufacturing
industry/ dust-free painting industry and other industry,





operating features :



1 : Microelectronics control system with LED display for the shower time.

2:  the air shower duration time adjustable from 0-99second.

3:  Infrared ray inductor for inside personal shower automatic from three side

4:  Human being voice remind of user progress in chamber.

5:  Emergency switch help you out of trouble, Comply with CE Test





Parameter:



                                  KEL-AS2500T-6  Air Shower Tunnel

MODEL

KEL-AS2500T-6

External size (mm)

(WXDXH)

2500x6000x2180mm

Work zone (mm)

(WXDXH)

2000x5880x1910mm

Persons per cycle

 5 Pallet goods

Air shower Duration

Factory set at 12 second (adjustable)

 Air shower direction

Three side with blowing

Material

(Option)

1: Entirety Sus304.

2: Entirety sus201.

3: External is steel with power coated, Internal is SUS304.

4: External is steel with power coated. Internal is SUS201.

5: color steel panel . (t=50mm)

Control system

1: microelectrionic control system with LED display for the shower time.

2: The shower time from 0-99second. (Adjustable).

3: Infrared ray inductor for inside personal shower automatic.

4: Human voice prompt system.

5: with CE remark.

The power of Fan

380V/50HZ/750W

(10 set)

Air flow of fan(m3/h)

  1300m3/h

Fan run (r/min)

2800r/min

Nozzle in stain less steel

72 pcs

Wind speed(m/s)

    23-29m/s

Noise level(dB)

  <62dB

LED Fluorescent Lamp

20wx6



HEPA Filter

Size(mm)

630X630X69mm

Efficiency

99.99%@0.3um

Air velocity

1000(m3/h)

Initial resistance(pa)

   <220pa



Pre-filter

Size(mm)

     775x380x17

Efficiency

    75% @ 0.5um

Resistance(pa)

     <30 Pa

Electrical

Power supply

     380v/50Hz

   Net power(kw)

     0.75X10 kw

Customer’s design is available.

Stainless Steel Tunnel Air Shower With Automatic Door , Clean Room Equipment 0

 Introduce :



Air shower tunnel not only plays an important role in supporting purification of personnel
and things, air shower tunnel can remove personal or components' surface dust for the
operating personnel to enter the clean work environment, but also plays the role
of air brake to prevent not-yet-cleaned air from entering clean area as to ensure a
clean local environment, further to ensure the reliability of the product running
environment and the rate of finished products with good results.



Factory test:



All of equipment is individually factory tested for safety and performance

in accordance with international Standards. Each unit is shipped with a documentation outlining the tests undertaken and the units individual results for each unit.

Factory test include:

-- functional test and visual inspection

-- electrical safety tests

-- air velocity testing

-- purification rank test (if need)





Warranty:



Our equipment is warranty for 1 year excluding consumable parts and accessories.

All equipment is shipped with a comprehensive use’s manual complete with a report documenting all test procedures.

Additional IO/OQ/GMP document is available upon request.

Contact our sales representative for specific warranty details or document request.





Consumable parts illustration:



1: Pre-filter: each one should be replacement in each 6 month, but it can refresh no more three times.



2: HEPA filter: each one should be replacement in each half and one years.



Why you choose K-LING Company ?



Professional sales:

• We value every inquiry that you sent to us, ensure quick competitive offer.

• We cooperate with customer to bid tenders. Provide all necessory docuement.

• We are a sales team, with all techinical support from engineer team





Punctual delivery time:



• Production / inspection report provide before shipment

• Shipping notice or insurance for you when your goods is shipped.

After sales service:

• We respect your feed back after receive the goods.

• We provide one year warranty after goods arrive.

• We promise all spare parts available in lifetime use.

• We care of your complain within 48hours.





Payment Term:



 T/T in advance, 30% before place the order, 70% when you see copy BL

Or 30% T/T in advance before place the order, 70% LC at sight.
