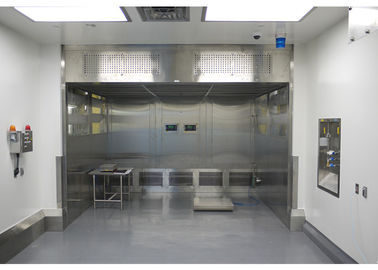

Performance Dispensing Booth With Air Speed Adjustable , GMP Standard Weighting Room
Quicky Detail :
Purification rank: Class100
Three Step Filtration System
Fluidseal Mini-pleats HEPA filter
GMP Standard with DOP port testing
Power: 380V/60HZ or 415V/50HZ
Technical Parameter :
Stainless steel 201/304 or steel with power coated
380V/50hz or 380V/60HZ
(FS 209E)USA .
Customer’s design is available.
1: Modular. Easy-to clean rigid design with minimal joints
2: HEPA/ULPA Gel-seal down flow filter are replaceable from within the booth. Gel-seal is more reliable than conventional gasket seals
3: Voltage-compensating blowers ensure stable air flow.
4: Magnehelic Gauges provide convenient and reliable means for monitoring gauges air flow and filter condition.
5: Containment performance verified according to the ISPE good practice guide, assessing the particulate containment performance of pharmaceutical equipment.
The air in the work shop will pass though primary filter, medium efficiency filter and was pressed
into static pressure box by centrifugal fan, after that, it will pass though the high efficiency
filter and blow through FFU, the clean air will flow by average speed over the working area, then
it forms the high clean grade working environment. The center weight room’s operating area will
be keep at negative pressure condition, exhaust 10% circulated air. The small chamber air in center
weighting room will pass through three grade filter system (high efficiency filter will remove
99.99% granules ≥0.3um) to make own circulated, its design meet GMP request.
All of equipment is individually factory tested for safety and performance in accordance with international Standards. Each unit is shipped with a documentation outlining the tests undertaken and the units individual results for each unit.
Factory test include:
-- functional test and visual inspection
-- electrical safety tests
-- air velocity testing
-- purification rank test (if need)
Our equipment is warranty for 1 year excluding consumable parts and accessories.
All equipment is shipped with a comprehensive use’s manual complete with a report documenting all test procedures.
Additional IO/OQ/GMP document is available upon request.
Contact our sales representative for specific warranty details or document request.
Consumable parts illustration:
1: Pre-filter: each one should be replacement in each 6 month, but it can refresh no more three times.
2: HEPA filter: each one should be replacement in each half and one years.
T/T in advance, 30% before place the order, 70% when you see copy BL
Or 30% T/T in advance before place the order, 70% LC at sight.
Why you choose K-LING Company ?
• We value every inquiry that you sent to us, ensure quick competitive offer.
• We cooperate with customer to bid tenders. Provide all necessory docuement.
• We are a sales team, with all techinical support from engineer team
Punctual delivery time:
• Production / inspection report provide before shipment
• Shipping notice or insurance for you when your goods is shipped.
After sales service:
• We respect your feed back after receive the goods.
• We provide one year warranty after goods arrive.
• We promise all spare parts available in lifetime use.
• We care of your complain within 48hours.
