SS 304 Down Flow Dispensing Booth Raw Material Weighting Room

SS 304 Down Flow Dispensing Booth Raw Material Weighting Room
SS 304 Down Flow Dispensing Booth Raw Material Weighting Room

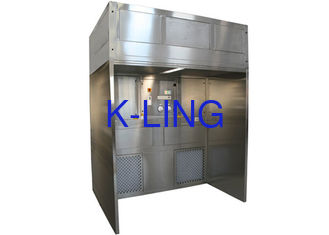

Large Image :  SS 304 Down Flow Dispensing Booth Raw Material Weighting Room

Product Details:
Place of Origin: CHINA
Brand Name: K-LING
Certification: CE,
Model Number: KEL-DB2000
Payment & Shipping Terms:
Minimum Order Quantity: 1SET
Price: NEGOATION
Packaging Details: PLOWOOD PACKING
Delivery Time: 8 WORKING DAYS
Payment Terms: Ex works/FOB/CIF/ CNF
Supply Ability: 200Sets/month
Detailed Product Description
High Light:

pharmaceutical sampling booth

,

pharmaceutical weighing booth

SS 304 Down Flow Dispensing Booth Raw Material Weighting Room




Quicky Detail



Stainless steel 304 material entirely

Nagative pressure

DOP Port

Purification rank: Class100
Three Step Filtration System

(H13+F7+G4)
Air speed:0.3-0.6m/s (Adjustable)
Power: 380V/50HZ





Technical Parameter :



 Model

KEL-DB2323

External size(mm)

 2100x2300x2400MM

Internal size(mm)

2000X2000X1950MM

Cleanliness:

Class100

HEPA Filter

 99.995@0.3um

Pre-filter

   75%@5um

Air velocity

  0.3-0.6m/s

Noise

57-65dB

Material

Stainless steel 201/304 or steel with power coated

Power

380V/50hz

Standard

(FS 209E)USA .

Customer’s design is available.

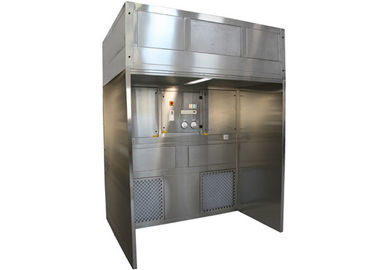

SS 304 Down Flow Dispensing Booth Raw Material Weighting Room 0





Applications:



subdivision of powder of liquids, charging and offloading materials to reactors, fluid bed dryers, granulators, filter dryers, glass ware skids and so on.



Operating features:



 1: Materal SS 304
  2: Pre Filter: G5 Grade.
  3: Efficiency:90% down to 10 Microns.
  4: Intermediate Filter Intermediate Filter of G7 Grade.
  5: Efficiency:95% down to 3 Microns.
  6: Final Supply Filter HEPA Filter of H13 Grade.
    Efficiency:99.99% down to 0.3 Microns.
  7: Exhaust Filter EU 13 rating, with suitable size.
  8: Efficiency: 99.99% down to 0.3 Microns.
  9: Motor Blower Assembly Statically & Dynamically balanced with suitable rating and size.
 10: performance Air Cleanliness:Class ISO 5 (as per ISO 14644-1).
 11: Air Flow Rate:0.45 + 0.1m/sec.
 12: Noise Level:Less than 70 db 'A'.
 13: Vibration Level:Minimum.
 14: Instrumentation Illumination Of Light:Optimum.
 15: Magnehelic Differential Pressure Gauge
 16: 3 Pins Switch & Socket

Factory test:
All of equipment is individually factory tested for safety and performance in accordance with international Standards. Each unit is shipped with a documentation outlining the tests undertaken and the units individual results for each unit.


Factory test include:

-- functional test and visual inspection
-- electrical safety tests
-- air velocity testing
-- purification rank test (if need)

Warranty:

Our equipment is warranty for 1 year excluding consumable parts and accessories.
All equipment is shipped with a comprehensive use’s manual complete with a report documenting all test procedures.
Additional IO/OQ/GMP document is available upon request.
Contact our sales representative for specific warranty details or document request.

Consumable parts illustration:

1: Pre-filter: each one should be replacement in each 6 month, but it can refresh no more three times.

2: HEPA filter: each one should be replacement in each half and one years.
