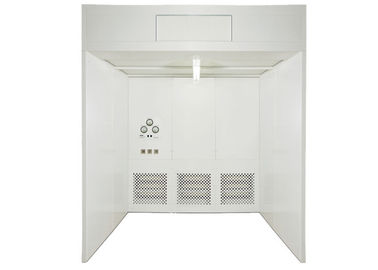

Rank 100 Powder Dispensing Booth , Weighting Booth With Three Step Filtration System

Rank 100 Powder Dispensing Booth , Weighting Booth With Three Step Filtration System
Rank 100 Powder Dispensing Booth , Weighting Booth With Three Step Filtration System

Large Image :  Rank 100 Powder Dispensing Booth , Weighting Booth With Three Step Filtration System

Product Details:
Place of Origin: CHINA
Brand Name: K-LING
Certification: CE,
Model Number: KEL-DS1812
Payment & Shipping Terms:
Minimum Order Quantity: 1SET
Price: NEGOATION
Packaging Details: PLOWOOD PACKING
Delivery Time: 8 WORKING DAYS
Payment Terms: Ex works/FOB/CIF/ CNF
Supply Ability: 200Sets/month
Detailed Product Description
High Light:

pharmaceutical weighing booth

,

downflow booth

Rank 100 Powder Dispensing Booth , Weighting Booth With Three Step Filtration System




Quicky Detail


External Side is steel with powder coated (T=1.0)
Internal Side is steel with powder coated (T=1.0)

Nagative pressure

DOP Port

Purification rank: Class100
Three Step Filtration System
Air speed:0.3-0.6m/s (Adjustable)
Power: 380V/50HZ


Introduction:


 The center weight room is one kind of professional working room which specially used in sampling,
weighting and analysis industry, it can control the working area powder to prohibit them off the
working room, and it is special equipment to control the powder floating, protect operators not
breathe the operated powder.




Operating Features:



  1: Materal SS 304
  2: Pre Filter: G5 Grade.
  3: Efficiency:90% down to 10 Microns.
  4: Intermediate Filter Intermediate Filter of G7 Grade.
  5: Efficiency:95% down to 3 Microns.
  6: Final Supply Filter HEPA Filter of H13 Grade.
      Efficiency:99.99% down to 0.3 Microns.
  7: Exhaust Filter EU 13 rating, with suitable size.
  8: Efficiency: 99.99% down to 0.3 Microns.
  9: Motor Blower Assembly Statically & Dynamically balanced with suitable rating and size.
 10: performance Air Cleanliness:Class ISO 5 (as per ISO 14644-1).
 11: Air Flow Rate:0.45 + 0.1m/sec.
 12: Noise Level:Less than 70 db 'A'.
 13: Vibration Level:Minimum.
 14: Instrumentation Illumination Of Light:Optimum.
 15: Magnehelic Differential Pressure Gauge
 16: 3 Pins Switch & Socket







Working Principles:





The air in the work shop will pass though primary filter, medium efficiency filter and was pressed
into static pressure box by centrifugal fan, after that, it will pass though the high efficiency
filter and blow through FFU, the clean air will flow by average speed over the working area, then
it forms the high clean grade working environment. The center weight room’s operating area will
be keep at negative pressure condition, exhaust 10% circulated air. The small chamber air in center
weighting room will pass through three grade filter system (high efficiency filter will remove
99.99% granules ≥0.3um) to make own circulated, its design meet GMP request.







Technical Parameter :





 Model

KEL-DB1812

External size(mm)

 1900x1500x2400

Internal size(mm)

1800X1200X1950

Cleanliness:

Class100

HEPA Filter

 99.995@0.3um

Pre-filter

   75%@5um

Air velocity

  0.2-0.5m/s

Noise

57-65dB

Material

Stainless steel 201/304 or steel with power coated

Power

380V/50hz

Standard

(FS 209E)USA .

Customer’s design is available.





Factory test:


All of equipment is individually factory tested for safety and performance in accordance with international Standards. Each unit is shipped with a documentation outlining the tests undertaken and the units individual results for each unit.


Factory test include:



-- functional test and visual inspection
-- electrical safety tests
-- air velocity testing
-- purification rank test (if need)


Warranty:



Our equipment is warranty for 1 year excluding consumable parts and accessories.
All equipment is shipped with a comprehensive use’s manual complete with a report documenting all test procedures.
Additional IO/OQ/GMP document is available upon request.
Contact our sales representative for specific warranty details or document request.


Consumable parts illustration:

1: Pre-filter: each one should be replacement in each 6 month, but it can refresh no more three times.

2: HEPA filter: each one should be replacement in each half and one years.


Why you choose K-LING Company ?



Professional sales:


• We value every inquiry that you sent to us, ensure quick competitive offer.
• We cooperate with customer to bid tenders. Provide all necessory docuement.
• We are a sales team, with all techinical support from engineer team



Punctual delivery time:


• Production / inspection report provide before shipment
• Shipping notice or insurance for you when your goods is shipped.


 After sales service:


• We respect your feed back after receive the goods.
• We provide one year warranty after goods arrive.
• We promise all spare parts available in lifetime use.
• We care of your complain within 48hours.



Payment Term:

 T/T in advance, 30% before place the order, 70% when you see copy BL
Or 30% T/T in advance before place the order, 70% LC at sight.
