Anti-Static Class 1000 Cleanroom Air Shower Tunnel With 3 Directional Blowing

China Anti-Static Class 1000 Cleanroom Air Shower Tunnel With 3 Directional Blowing supplier

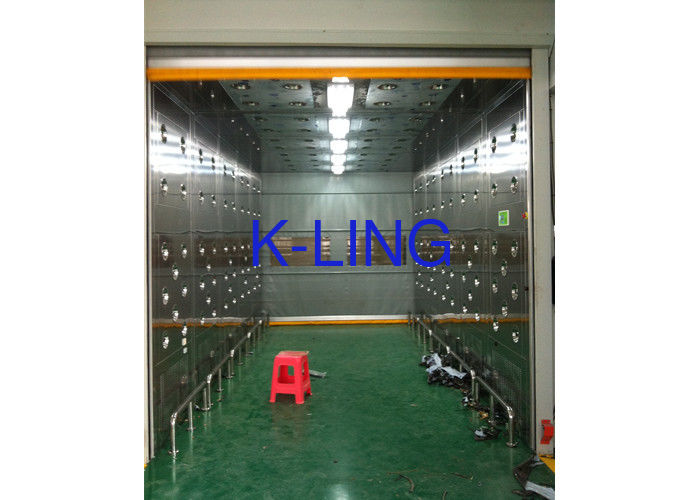

Large Image :  Anti-Static Class 1000 Cleanroom Air Shower Tunnel With 3 Directional Blowing

Product Details:

Place of Origin: CHINA
Brand Name: K-LING
Certification: CE
Model Number: KEL-ASP2000T-3T SERISE

Payment & Shipping Terms:

Minimum Order Quantity: 1SET
Price: NEGOATION
Packaging Details: PLOWOOD PACKING
Delivery Time: 15 WORKING DAYS AFTER DEPOSIT
Payment Terms: T/T, LC AT SIGHT, Western Union
Supply Ability: 50UNITS/MONTH
Contact Now
Detailed Product Description
Outside: Steel With Power Coated Inside: Stainless Steel 304
Blowing Way: Three Side Blowing Nozzle: Stainless Steel 201
Application: Commodity Dust Filtration Control System: Microelectronics Control System
HEPA Filter: 99.99%@0.3um Certificated: CE

Anti-Static Class 1000 Cleanroom Air Shower Tunnel With 3 Directional Blowing





Quicky detail



External Size: 2000x3000x2300mm

internal size : 15000x2930x2000mm

Purification rank: Class1000

HEPA filter efficiency: 99.999%@0.3um

SUS nozzle: 62pcs

Blower way: three directional blowing

Air speed :>25m/s

Power: 380V/50HZ 380v/60HZ, 440V/50HZ





Introduction:



The greatest source of particulate contamination in a clean room is the operator air shower tunnel are installed between change areas and the clean room, the air shower enhances clean room operating protocol by serving as a reminder to all operators that they are entering a controlled environment, personnel should be gowning up properly before entering the air shower, after you pass the air shower tunnel





Applications:Pharmaceutical,Medical Device,Aerospace/Government,Health Care,semiconductor, electronics, precision manufacture, animal labs , research labs. metal manufacture and lead industry.





operating features :



1) Material: inside is stainless steeel 304, outside is cold rolled steel / stainless steel 304, sandwich panel  2) HEPA filter with efficiency 99.99% up to 0.3um

3) Toughened glass for the door's window

4) Fully-automatic infrared induction blowers and showers

5)Two emergencys inside and outside, it could stop the working if need.

6) LED display

7) Adjustable range: 0 - 99s

8) Doors will close automatically when activated

9) Stainless steel nozzle on two sides, it's more effieciency to blow.

10) The air velocity is greater than 25m/s

11) Low noise level

12) Arc corner 100-rank static state, patented product
13) customized designe is available





                                     KEL-AS2000T-3L  Air Shower Tunnel

MODEL

KEL-AS1590T-3L

External size (mm)

(WXDXH)

2000x3000x2300mm

Work zone (mm)

(WXDXH)

1500x2930x2000mm

Persons per cycle

 3 Pallet goods

Air shower Duration

Factory set at 12 second (adjustable)

 Air shower direction

Three side blowing

Material

(Option)

1: Entirety Sus304.

2: Entirety sus201.

3: External is steel with power coated, Internal is SUS304.

4: External is steel with power coated. Internal is SUS201.

Control system

1: PCL control system with LED display for the shower time.

2: The shower time from 0-99second. (Adjustable).

3: Infrared ray inductor for inside personal shower automatic.

4: Human voice prompt system.

5: with CE remark.

The power of Fan

380V/50HZ/750W   (6 set)

Air flow of fan(m3/h)

 1300m3/h

Fan run (r/min)

2800r/min

Nozzle in stain less steel

62 pcs

Wind speed(m/s)

 23-29m/s

Noise level(dB)

<62dB

LED Fluorescent Lamp

20wx3



HEPA Filter

Size(mm)

630X630X69mm

Efficiency

99.99%@0.3um

Air velocity

1000(m3/h)

Initial resistance(pa)

 <220pa



Pre-filter

Size(mm)

  775x380x17

Efficiency

  75% @ 0.5um

Resistance(pa)

 <30 Pa

Electrical

Power supply

 380v/50Hz

   Net power(kw)

     0.75X6kw

Customer’s design is available.





Principle:



 Commodity Air shower tunnel air is supplied by the fan, flowing into the sir plenum chamber via low efficiency filter, and then filtered through high efficiency filter. The clean air comes out from the air

 shower nozzles (nozzle angle can be adjusted), which can effectively remove people and
belongings attached dust. The dust will flow back into the low efficiency air filters with air streams. The cycle achieves the purpose of air shower tunnel.





Factory test:



All of equipment is individually factory tested for safety and performance

in accordance with international Standards. Each unit is shipped with a documentation outlining the tests undertaken and the units individual results for each unit.

Factory test include:

-- functional test and visual inspection

-- electrical safety tests

-- air velocity testing

-- purification rank test (if need)





Warranty:



Our equipment is warranty for 1 year excluding consumable parts and accessories.

All equipment is shipped with a comprehensive use’s manual complete with a report documenting all test procedures.

Additional IO/OQ/GMP document is available upon request.

Contact our sales representative for specific warranty details or document request.





Consumable parts illustration:



1: Pre-filter: each one should be replacement in each 6 month, but it can refresh no more three times.



2: HEPA filter: each one should be replacement in each half and one years.



Why you choose K-LING Company ?



Professional sales:

• We value every inquiry that you sent to us, ensure quick competitive offer.

• We cooperate with customer to bid tenders. Provide all necessory docuement.

• We are a sales team, with all techinical support from engineer team





Punctual delivery time:



• Production / inspection report provide before shipment

• Shipping notice or insurance for you when your goods is shipped.

After sales service:

• We respect your feed back after receive the goods.

• We provide one year warranty after goods arrive.

• We promise all spare parts available in lifetime use.

• We care of your complain within 48hours.





Payment Term:



 T/T in advance, 30% before place the order, 70% when you see copy BL

Or 30% T/T in advance before place the order, 70% LC at sight.
