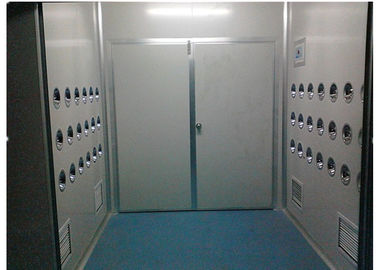

Anti-Static Class 10000 Cargo Air Shower Tunnel For Cosmetic Workshop , Sandwich Panel

Anti-Static Class 10000 Cargo Air Shower Tunnel For Cosmetic Workshop , Sandwich Panel
Anti-Static Class 10000 Cargo Air Shower Tunnel For Cosmetic Workshop , Sandwich Panel Anti-Static Class 10000 Cargo Air Shower Tunnel For Cosmetic Workshop , Sandwich Panel

Large Image :  Anti-Static Class 10000 Cargo Air Shower Tunnel For Cosmetic Workshop , Sandwich Panel

Product Details:
Place of Origin: CHINA
Brand Name: K-LING
Certification: CE
Model Number: KEL-ASP2500T-4 SERISE
Payment & Shipping Terms:
Minimum Order Quantity: 1SET
Price: NEGOATION
Packaging Details: PLOWOOD PACKING
Delivery Time: 15 WORKING DAYS AFTER DEPOSIT
Payment Terms: T/T, LC AT SIGHT
Supply Ability: 50UNITS/MONTH
Detailed Product Description
Material: Sandwich Panel Or Stainless Steel Purification Rank: Class 10000-300000
Air Velocity: More Than 25m/s Light: 18Wx 3Set
Control System: PCB Board Blowing Ways: 3 Side Blowing
Product Name: Cargo Air Shower Tunnel Other Product Name: Class 10000 Air Shower
High Light:

air shower system

,

biological clean room

Anti - Static Class 10000 Cargo Air Shower Tunnel For Cosmetic Workshop , Sandwich Panel





Quicky detail



External Size:  2500x4000x2300mm

Internal size : 2000x3930x2000mm

Purification rank: Class10000

HEPA filter efficiency: 99.999%@0.3um

SUS nozzle: 80pcs

Blower way: three size blower

Air speed :>23m/s

Power: 380V/50HZ





Introduction:



cargo Air shower tunnel not only plays an important role in supporting purification of personnel
and cargo , air shower tunnel can remove personal or components' surface dust for the operating personnel to enter the clean work environment, but also plays the role of air brake to prevent not-yet-cleaned air from entering clean area as to ensure a clean local environment, further to ensure the reliability of the product running environment and the rate of finished products with good results.





Applications:



Electronic/ microelectronics/ precision electronic/ biological manufacturing industry/ medical
industry/ food processing/ ITO mode/ liquid crystal and conductive photoelectric suggests
that the industry/ PCB/ SMT manufacturing industry/ aerospacevoyage/ aumomobie manufacturing
industry/ dust-free painting industry and other industry.





Principle:


The air inside of air shower tunnel  is firstly filtered under the action of fan and enters into static pressure tank. After filtered with high-efficiency air filter, clean air is jet out at high speed from the nozzle of air shower. The nozzle angel is adjustable. It can effectively blow out dust attached on people and goods' surface. The blown dust enters into primary-efficiency air filter again, circulating so and reaching to the aim of air shower tunnel.



Air shower tunnel material

1. Color steel plate (sandwich panel )

2. Steel plate

3. Stainless steel



Operating features :



1 :Microelectroincs control system with LED display for the shower time.

2:  the air shower duration time adjustable from 0-99second.

3:  Infrared ray inductor for inside personal shower automatic from three side

4:  Human being voice remind of user progress in chamber.

5:  Emergency switch help you out of trouble, Comply with CE Test

6: ion-static device for anti-static purpose.

7: Special ultrathin blowing tube housing and fan, match with rotatable embedded stainless

     steel nozzle, greatly increased the space utilization and blowing tube effect

8:  Built-in many sets of operating procedures, can be convenient and flexible call.
    Intelligent man-machine dialogue interface makes operation chain, such as real-time monitoring state.
9: Standard of the modular design, make field assembly faster and more convenient maintenance.



                                  KEL-AS2500T-4  Air Shower Tunnel

MODEL

KEL-AS2500T-4

External size (mm)

(WXDXH)

2500x4000x2300mm

Work zone (mm)

(WXDXH)

2000x3930x2000mm

Persons per cycle

   three pallet goods

Air shower Duration

Factory set at 12 second (adjustable)

 Air shower direction

Three side with blowing

Material

(Option)

1: Entirety Sus304.

2: Entirety sus201.

3: External is steel with power coated, Internal is SUS304.

4: External is steel with power coated. Internal is SUS201.

5: Sandwich panel (t=50mm)

Control system

1: PCL control system with LED display for the shower time.

2: The shower time from 0-99second. (Adjustable).

3: Infrared ray inductor for inside personal shower automatic.

4: Human voice prompt system.

5: with CE remark.

The power of Fan

380V/50HZ/750W

(8 set)

Air flow of fan(m3/h)

             1300m3/h

Fan run (r/min)

2800r/min

Nozzle in stain less steel

   80 pcs

Wind speed(m/s)

    23-29m/s

Noise level(dB)

   <62dB

LED Fluorescent Lamp

20wx7



HEPA Filter

Size(mm)

630X630X69mm

Efficiency

99.99%@0.3um

Air velocity

1000(m3/h)

Initial resistance(pa)

    <220pa



Pre-filter

Size(mm)

 775x380x17

Efficiency

 75% @ 0.5um

Resistance(pa)

  <30 Pa

Electrical

Power supply

   380v/50Hz

   Net power(kw)

     0.75X8 kw



Customer’s design is available.







Factory test:



All of equipment is individually factory tested for safety and performance

in accordance with international Standards. Each unit is shipped with a documentation outlining the tests undertaken and the units individual results for each unit.

Factory test include:

-- functional test and visual inspection

-- electrical safety tests

-- air velocity testing

-- purification rank test (if need)





Warranty:



Our equipment is warranty for 1 year excluding consumable parts and accessories.

All equipment is shipped with a comprehensive use’s manual complete with a report documenting all test procedures.

Additional IO/OQ/GMP document is available upon request.

Contact our sales representative for specific warranty details or document request.





Consumable parts illustration:



1: Pre-filter: each one should be replacement in each 6 month, but it can refresh no more three times.



2: HEPA filter: each one should be replacement in each half and one years.



Why you choose K-LING Company ?



Professional sales:

• We value every inquiry that you sent to us, ensure quick competitive offer.

• We cooperate with customer to bid tenders. Provide all necessory docuement.

• We are a sales team, with all techinical support from engineer team





Punctual delivery time:



• Production / inspection report provide before shipment

• Shipping notice or insurance for you when your goods is shipped.

After sales service:

• We respect your feed back after receive the goods.

• We provide one year warranty after goods arrive.

• We promise all spare parts available in lifetime use.

• We care of your complain within 48hours.





Payment Term:



 T/T in advance, 30% before place the order, 70% when you see copy BL

Or 30% T/T in advance before place the order, 70% LC at sight.
