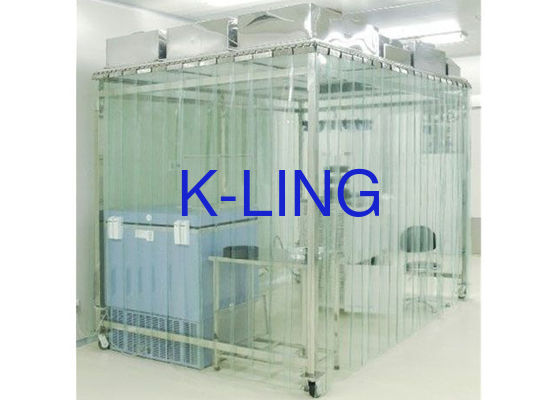

Movable Softwall Clean Room

China Movable Softwall Clean Room supplier

Large Image :  Movable Softwall Clean Room

Product Details:

Place of Origin: China
Brand Name: K-LING
Certification: CE,
Model Number: KEL-KLF3000

Payment & Shipping Terms:

Minimum Order Quantity: 1SQM
Price: NEGOATION
Packaging Details: PLOWOOD PACKING
Delivery Time: 8 WORKING DAYS
Payment Terms: Ex works/FOB/CIF/ CNF
Supply Ability: 2000sqm/month
Contact Now
Detailed Product Description



Stainless Steel 304 Movable Vertical Air Flow Soft Wall Clean Room



Quickly detail


 External size : 3000x3000x2596mm
 Internal Size: 2900x2900x2205mm
 Purification rank: Class100
 HEPA filter efficiency: 99.999%@0.3um
 Laminar flow: vertical
 Air speed :0.3-0.6m/s
 Power: 220V/50HZ  110V/60HZ



Company information :

Keling Purification Technology Co., Ltd engaged in air purification field for many years, product have clean room equipment , HVAC air filter, clean room product such as clean room air shower, Air shower room for GMP /QS Standard, stainless steel air shower room, Pass box, pass thru, Laminar flow bench, Hard wall clean room, soft wall clean room, HEPA filter unit series, clean shed, clean booth, laminar flow booth Dispensing booth, sampling booth, down flow booth, fan filter unit(EBM Fan), static pass boxes, medical clean pass boxes, pharmaceutical static pass boxes,Mini-pleats ULPA/HEPA air filter, V-cell filter, pocket air filter, panel air filter, bag air filter,  z-line filter, and so on .




Applications:

Food industry, aerospace, life sciences, biotechnology, medical devices, plastic injection module, electronics assembly or hospital pharmacy


Operating features

1: The ceiling enables flexible placement of fan filter unit, the empty bays cover by powder coated steel panels.
2: the construction utilizing full welded, reinforced, steel tubular sections. The frame is finished with an abrasion-resistance oven-baked powder coat, it is free-standing not require any suspending ceiling supports
3: the PVC anti-static curtain door allowing for easy passage of material and personnel in and out of the clean area. The curtain terminated at a specific distance above the floor to allow for exhaust of clean air out of the clean room.
4: Control box can rapid start up the fan filter unit and lighting.
5: Fan filter unit is the energy efficient external rotor motor design reduces operating costs and has extremely low noise and vibration levels, improving the working conditions in the clean room.
6: the high quality mini-pleats HEPA filter utilizing an improved mini-pleated separation technique to maximize surface area improves efficiency and extends the filter life.


Movable Softwall Clean Room


Illustration:

1:  The frame is steel cube with milk powder coated.
2:  M support leg
3:  The wall made from clarity synthetic glass.
4:  FFU control box.
5:  FFU with HEPA filter and pre-filter
6:  Purification lamp
7:  PVC strip curtain
8:  Purification rank class100-1000 (FS209E Stander)




Technical Parameter:

MODEL

KEL-LFB3000

Ex size (mm)
(W*D*H)

3000X3000X2596

In size (mm)

2900x2900x2205

Purification rank

Class10-300,000(FS209E USA)

HEPA filter

Efficiency : 99.99% @ 0.3um - 99.999% @ 0.12um (MPPS)

Pre-filter

Efficiency : 85% @ 5um

Control system

 PC control system / promised speed by control box

Pressure Gauge

 American Dywer pressure

Noise

<50-55 dB  (test point distance is 1m)

 Air velocity
(m3/h)

    0.2-0.5m/s Adjustable   (test point distance is 30cm)

Frame material

 stainless steel/steel with power coated/Cast aluminum profile

Wall frame

Tempered glass / PVC anti-static curtain (option)

Fan

EBM Fan /Taiwan fan/ Domestic fan (option)

Power suppler

    AC110/220v  50HZ/60HZ



Customer’s design is available.

Movable Softwall Clean Room


Why you choose K-LING Company ?





Professional sales:



• We value every inquiry that you sent to us, ensure quick competitive offer.

• We cooperate with customer to bid tenders. Provide all necessory docuement.

• We are a sales team, with all techinical support from engineer team



Punctual delivery time:



• Production / inspection report provide before shipment

• Shipping notice or insurance for you when your goods is shipped.





After sales service:



• We respect your feed back after receive the goods.

• We provide one year warranty after goods arrive.

• We promise all spare parts available in lifetime use.

• We care of your complain within 48hours.



Payment Term:



 T/T in advance, 30% before place the order, 70% when you see copy BL

Or 30% T/T in advance before place the order, 70% LC at sight.
