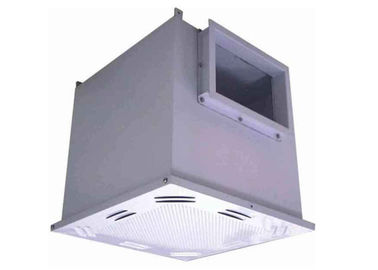

Anti-Static Air Flow HEPA Filter Unit , Replacement HEPA Filter Module

Anti-Static Air Flow HEPA Filter Unit , Replacement HEPA Filter Module

Quicky detail

Install Size:390 x390x500mm

Purification rank: Class100-10000

HEPA filter efficiency:99.99%- 99.999%@0.3um

HEPA filter size : 320x320x220mm

Air speed :0.3-0.6m/s

Material : steel with power coated,

Introduction:

HEPA unit series is a terminal purifying device for the class 100-300000's clean room, The good air flow structure can make the whole clean area achieved the requested purification rank. HEPA Unit Series adopts the most advanced technology which makes the airflow distribution more reasonable. The cabinet has simple and reliable structure. We choose hard armor plate to produce that also passed multi-layer acid cleaning process. The color is white as ivory.

Applications:

conventional clean room construction and HVAC air filter system.

Operating features:

1: The cabinet material is steel with power coated and the anti-static process.

2: The structure is impact and has a good capability for airproofing. Its entrance has two kinds: quadrate and rotundity.

3: the clean room may be limited by the building's height or need the compact design,

 You can choose the integrative HEPA/ULPA Unit

Parameter :

Customized design is available.

Factory test:

All of equipment is individually factory tested for safety and performance in accordance with international Standards. Each unit is shipped with a documentation outlining the tests undertaken and the units individual results for each unit.

Factory test include:

--functional test and visual inspection

--electrical safety tests

--air velocity testing

--purification rank test (if need)

Warranty:

Our equipment is warranty for 1 year excluding consumable parts and accessories.

All equipment is shipped with a comprehensive use’s manual complete with a report documenting all test procedures.

Additional IO/OQ/GMP document is available upon request.

Contact our sales representative for specific warranty details or document request.

Consumable parts illustration:

1: Pre-filter: each one should be replacement in each 6 month, but it can refresh no more three times.

2: HEPA filter: each one should be replacement in each half and one years.
