H14 HEPA Air Filter Down Flow Sampling / Downflow Booth With DOP Port

China H14 HEPA Air Filter Down Flow Sampling / Downflow Booth With DOP Port supplier

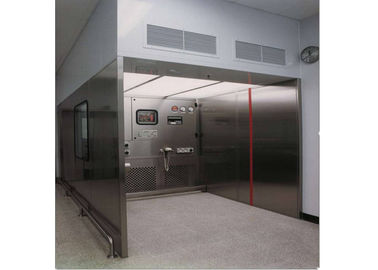

Large Image :  H14 HEPA Air Filter Down Flow Sampling / Downflow Booth With DOP Port

Product Details:

Place of Origin: CHINA
Brand Name: K-LING
Certification: CE,
Model Number: KEL-DB2323

Payment & Shipping Terms:

Minimum Order Quantity: 1SET
Price: NEGOATION
Packaging Details: PLOWOOD PACKING
Delivery Time: 8 WORKING DAYS
Payment Terms: Ex works/FOB/CIF/ CNF
Supply Ability: 200Sets/month
Contact Now
Detailed Product Description



H14 HEPA Air Filter Down Flow Sampling / Dispensing Booth With DOP Port




Quicky Detail


External Size : 2400x2500x2400mm
Internal Size: 2300x2300x1950mm
Purification rank: Class100
HEPA filter efficiency: 99.999%@0.3um
Air speed:0.3-0.6m/s
Power: 380V/50HZ  or 380V/60HZ



Technical Parameter :

 Model

KEL-DB2323

External size(mm)

 2400x2600x2400MM

Internal size(mm)

2300X2300X1950MM

Cleanliness:

Class100

HEPA Filter

 99.995@0.3um

Pre-filter

   75%@5um

Air velocity

  0.2-0.5m/s

Noise

57-65dB

Material

Stainless steel 201/304 or steel with power coated

Power

380V/50hz

Standard

(FS 209E)USA .

Customer’s design is available.



Applications:



subdivision of powder of liquids, charging and offloading materials to reactors, fluid bed dryers, granulators, filter dryers, glass ware skids and so on.


Operating features:

 1: Materal SS 304
  2: Pre Filter: G5 Grade.
  3: Efficiency:90% down to 10 Microns.
  4: Intermediate Filter Intermediate Filter of G7 Grade.
  5: Efficiency:95% down to 3 Microns.
  6: Final Supply Filter HEPA Filter of H13 Grade.
    Efficiency:99.99% down to 0.3 Microns.
  7: Exhaust Filter EU 13 rating, with suitable size.
  8: Efficiency: 99.99% down to 0.3 Microns.
  9: Motor Blower Assembly Statically & Dynamically balanced with suitable rating and size.
 10: performance Air Cleanliness:Class ISO 5 (as per ISO 14644-1).
 11: Air Flow Rate:0.45 + 0.1m/sec.
 12: Noise Level:Less than 70 db 'A'.
 13: Vibration Level:Minimum.
 14: Instrumentation Illumination Of Light:Optimum.
 15: Magnehelic Differential Pressure Gauge
 16: 3 Pins Switch & Socket

Factory test:


All of equipment is individually factory tested for safety and performance in accordance with international Standards. Each unit is shipped with a documentation outlining the tests undertaken and the units individual results for each unit.


Factory test include:

-- functional test and visual inspection
-- electrical safety tests
-- air velocity testing
-- purification rank test (if need)


Warranty:

Our equipment is warranty for 1 year excluding consumable parts and accessories.
All equipment is shipped with a comprehensive use’s manual complete with a report documenting all test procedures.
Additional IO/OQ/GMP document is available upon request.
Contact our sales representative for specific warranty details or document request.


Consumable parts illustration:

1: Pre-filter: each one should be replacement in each 6 month, but it can refresh no more three times.

2: HEPA filter: each one should be replacement in each half and one years.


Why you choose K-LING Company ?



Professional sales:


• We value every inquiry that you sent to us, ensure quick competitive offer.
• We cooperate with customer to bid tenders. Provide all necessory docuement.
• We are a sales team, with all techinical support from engineer team



Punctual delivery time:


• Production / inspection report provide before shipment
• Shipping notice or insurance for you when your goods is shipped.
   After sales service:
• We respect your feed back after receive the goods.
• We provide one year warranty after goods arrive.
• We promise all spare parts available in lifetime use.
• We care of your complain within 48hours.



Payment Term:

 T/T in advance, 30% before place the order, 70% when you see copy BL
Or 30% T/T in advance before place the order, 70% LC at sight.
