Automatic Air Flow Down Dispensing Booth Class 100 Pharmaceutical Clean Room

Automatic Air Flow Down Dispensing Booth Class 100 Pharmaceutical Clean Room
Automatic Air Flow Down Dispensing Booth Class 100 Pharmaceutical Clean Room

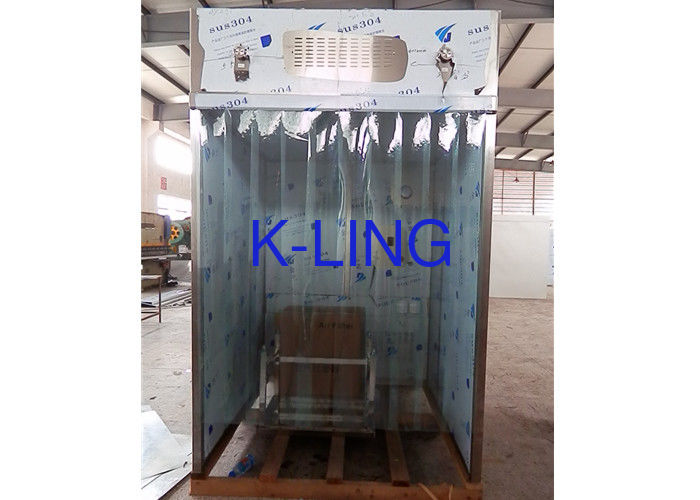

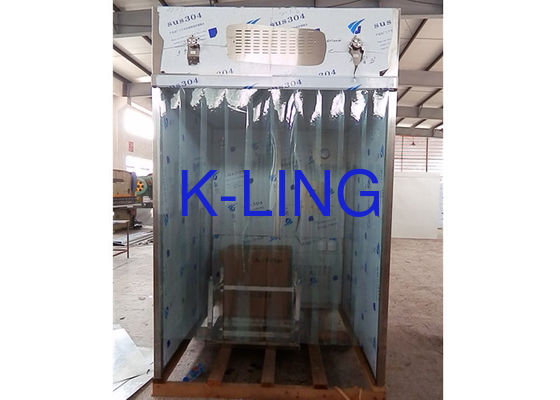

Large Image :  Automatic Air Flow Down Dispensing Booth Class 100 Pharmaceutical Clean Room

Product Details:
Place of Origin: CHINA
Brand Name: K-LING
Certification: CE,
Model Number: KEL-DS1518
Payment & Shipping Terms:
Minimum Order Quantity: 1SET
Price: NEGOATION
Packaging Details: PLOWOOD PACKING
Delivery Time: 8 WORKING DAYS
Payment Terms: Ex works/FOB/CIF/ CNF
Supply Ability: 200Sets/month
Detailed Product Description
Other Name: Down Flow Booth & Weighting Room Air Speed: 0.45+_0.2m/s
Control System: Manual Or PLC Control System Material: Outside Is Steel With Power Coated, Inside Is Sus304
Pressure: Negative Pressure Filtration Step: 3 Filtration Step
High Light:

pharmaceutical sampling booth

,

downflow booth

Automatic Air Flow Down Dispensing Booth Class 100 Pharmaceutical Clean Room



Quicky Detail


External Size : 1600x2100x2400mm
Internal Size: 1500x1800x1950mm
Purification rank: Class100
HEPA filter efficiency: 99.999%@0.3um
Air speed:0.3-0.6m/s
Power: 380V/50HZ orr 380V60HZ




Introduction:


 Dispensing booth is a kind of partial purification equipment, for filling, refilling, weighing and sampling of raw material and Compounds. It is provided with a HEPA filter, which prevents the airborne dusts by down draught technique. The unit eliminates powder contamination to protect the operator and the surrounding environment.




Operating Features:



 1: Automatic changeable frequency system monitors the air velocity to ensure its stability

    in the working area.

 2: Differential pressure gauge is equipped to real-time monitor the filters.

 3: Unique designed air duct effectively controls the noise.

 4: Uniform flow design of main working area can protects the operators and prevent
     encironmental pollution and cross contamination of products.

5: Intelligent control mode and alarm system ensure the reliability of running.

6: Smooth transitions of wall and ground can eliminate the blind angle.

7: Humanized design simplifies the operation of all kinds of filters




Technical Parameter :



 Model

KEL-DB1518

External size(mm)

 1600x2100x2400mm

Internal size(mm)

1500X1800X1950mm

Cleanliness:

Class100

HEPA Filter

 99.995@0.3um

Pre-filter

   75%@5um

Air velocity

  0.2-0.5m/s

Noise

57-65dB

Material

Stainless steel 201/304 or steel with power coated

Power

380V/50hz

Standard

(FS 209E)USA .



Customer’s design is available.



Factory test:

All of equipment is individually factory tested for safety and performance in accordance with international Standards. Each unit is shipped with a documentation outlining the tests undertaken and the units individual results for each unit.


Factory test include:

-- functional test and visual inspection
-- electrical safety tests
-- air velocity testing
-- purification rank test (if need)


Warranty:

Our equipment is warranty for 1 year excluding consumable parts and accessories.
All equipment is shipped with a comprehensive use’s manual complete with a report documenting all test procedures.
Additional IO/OQ/GMP document is available upon request.
Contact our sales representative for specific warranty details or document request.


Consumable parts illustration:

1: Pre-filter: each one should be replacement in each 6 month, but it can refresh no more three times.

2: HEPA filter: each one should be replacement in each half and one years.




Why you choose K-LING Company ?


1 . Superior Quality


Quality is our biggest concern. We are always striving
for quality improvement from the first beginning.

2. Competitive Price

Competitive price is one of our advantages compared to
others. We are always working hard to lower down the cost
while still improve or keep the quality.

3. Customer first service

Focus on customization, we provide the free design by our
designers. Reply with 24 hours if any questions and pack
in time for delivery.

4. All-in-one convenience

We are dedicated to give you all-in-one service. You just
tell us your demand, then we will take care of your demand,
design drawings, build the clean room and provide you best after sale.


5. Product diversification

We are not only undertake clean room construction, clean
booth construction, etc., but also an agent to export
accessories from other factory. You could always choice the
 suitable products in our company.



Payment Term:

 T/T in advance, 30% before place the order, 70% when you see copy BL
Or 30% T/T in advance before place the order, 70% LC at sight.
