HEPA Ceiling Clean Room Fan Filter Units With Remote Control / Low Vibration

China HEPA Ceiling Clean Room Fan Filter Units With Remote Control / Low Vibration supplier

Large Image :  HEPA Ceiling Clean Room Fan Filter Units With Remote Control / Low Vibration

Product Details:

Place of Origin: CHINA
Brand Name: K-LING
Certification: CE,
Model Number: KEL-FFU615

Payment & Shipping Terms:

Minimum Order Quantity: 1PCS
Price: NEGOATION
Packaging Details: PLOWOOD PACKING
Delivery Time: 8 WORKING DAYS
Payment Terms: Ex works/FOB/CIF/ CNF
Supply Ability: 1000Sets/month
Contact Now
Detailed Product Description

HEPA Ceiling Clean Room Fan Filter Units With Remote Control / Low Vibration



Quicky Detail


Internal Size: 615x615x615mm
Purification rank: Class100-10000
HEPA filter efficiency:99.99%- 99.999%@0.3um
HEPA filter size : 610 x610x69mm
Air speed :0.3-0.6m/s
Power: 220V/50HZ

Per-filter:450x450x21mm



Introduction:


     FFU, short for Fan Filter Unit, which draws in contaminated air from the top of the module, and exhausts filtered clean air vertically in a unidirectional(laminar) air stream at its base, is a self-contained fan and filter module for cleanroom applications. Fan Filter Unit  provides clean air and particle controlling. FFU is
installed on ceiling of clean room (25% to100% cover rate), general dimension is 2' * 4' or 4' * 4'.



Applications:


As demands of cleanliness with process of semiconductor or LCD manufacturer, you are able to choose the fittest filter of particle diameter, dust collection efficiency, etc. If you need the filter without B(Boron), We recommend PTFE(Poly Tetra Fluoro Ethylene)filter , that is made of material of membrane.If you must avoid DOP for testing filter, please inform us to test with silica without water or atmospheric air.



Operating features:


- Low Vibration
- Low noise which is less than 53dba
- Efficiency:99.95%
- Air velocity:0.5-0.6m/s
- Remote Control

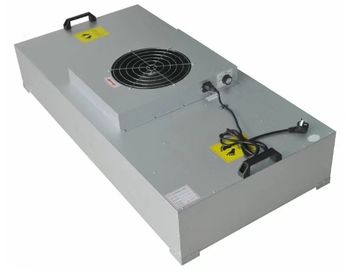

Illustration:

1: Plastic Handle  2: Fan  3: HEPA filter    4:Pre-filter  5:Control panel  6:Power cable


Technical Parameter:


 MODEL

  KEL-FFU615

External size (mm)
(WXDXH)

615x615x350mm

 Material

Steel plate with painting/galvanized steel/aluminum/stainless steel

 Air flow(m3/h)

 500m3/h

Air velocity (m/s)

   0.3/0.35/0.4/0.45/0.5m/s

Pressure(pa)

    97(10mmAq)

Control system

1: Power on/off   2: Control air speed up/down

HEPA FILTER

Size(mm)

615X610X69

Efficiency(%)

  99.995% @ 0.3um

Pressure (pa)

<220pa @ 0.45m/s

 Power supply

  220V/110V ,50/60HZ

Power (w)

110w

     Noise (Db)

57db



Customer’s design is available.


Factory test:

All of equipment is individually factory tested for safety and performance in accordance with international Standards. Each unit is shipped with a documentation outlining the tests undertaken and the units individual results for each unit.


Factory test include:

-- functional test and visual inspection
-- electrical safety tests
-- air velocity testing
-- purification rank test (if need)


Warranty:

Our equipment is warranty for 1 year excluding consumable parts and accessories.
All equipment is shipped with a comprehensive use’s manual complete with a report documenting all test procedures.
Additional IO/OQ/GMP document is available upon request.
Contact our sales representative for specific warranty details or document request.


Consumable parts illustration:

1: Pre-filter: each one should be replacement in each 6 month, but it can refresh no more three times.

2: HEPA filter: each one should be replacement in each half and one years.

Why you choose K-LING Company ?
Professional sales:
• We value every inquiry that you sent to us, ensure quick competitive offer.
• We cooperate with customer to bid tenders. Provide all necessory docuement.
• We are a sales team, with all techinical support from engineer team

Punctual delivery time:
• Production / inspection report provide before shipment
• Shipping notice or insurance for you when your goods is shipped.
After sales service:
• We respect your feed back after receive the goods.
• We provide one year warranty after goods arrive.
• We promise all spare parts available in lifetime use.
• We care of your complain within 48hours.


Payment Term:

 T/T in advance, 30% before place the order, 70% when you see copy BL
Or 30% T/T in advance before place the order, 70% LC at sight.
