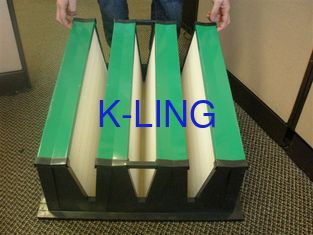

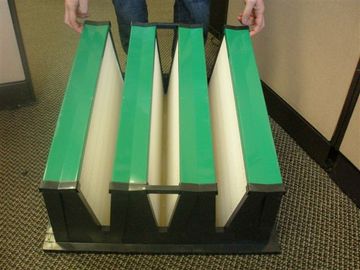

Washable MERV 16 Plastic Frame V Bank Air Filter For Air Conditioner HVAC System

China Washable MERV 16 Plastic Frame V Bank Air Filter For Air Conditioner HVAC System supplier

Large Image :  Washable MERV 16 Plastic Frame V Bank Air Filter For Air Conditioner HVAC System

Product Details:

Place of Origin: China
Brand Name: K-LING
Certification: EN799
Model Number: KEL-VC

Payment & Shipping Terms:

Minimum Order Quantity: 1SET
Price: NEGOATION
Packaging Details: PLOWOOD PACKING
Delivery Time: 8 WORKING DAYS
Payment Terms: Ex works/FOB/CIF/ CNF
Supply Ability: 2000Sets/month
Contact Now
Detailed Product Description
Frame Material: Plastic Frame Media: Lydall Glass Fibre
Efficiency: F7-F9 Cell: 4 Cell
Pleats Distance: 7PPI

Washable MERV 16 Plastic Frame V Bank Air Filter For Air Conditioner HVAC System

Quickly detail:

Media: Lydall glass fiber
Frame: Plastic
Filter efficiency:. MERV16
Filter size: 592x592x292MM
Pack: 4 or 3 packs
Resistance:<120pa

Characteristics:

1:  The 4 V bank rigid  air filter use for filter more than 0.5um particles and dust in HVAC air conditional system ,that particular design for HVAC project at low resistance with big air volume.
 2:  The filter media adopt the pp media or ultra-thin glass fiber with high dust holding capacity , the hot-melt glue spacing each pleats in regular so that achieve high dust volume , all of the media area can be used in completely .
3:  Fine dust-filter remove air contamination such as find dust,smoke.vapor.soot,pollen and bacteria , ideal for all standard filter applications especially with increased demands regardsing service life, safety,versatility, and low inital pressure drop.
4:  Replace conventional bag and rigid filtters, this filter is especially suited for use in variable air volume system,large filter surface area offers long serivce life and low pressure drop.
5: The polypropylene plastic frame can be Incineration when use out .
6: the filter with flange can replace by pocket air filter.
    The sealant around the media so that the air filter without any air leaking
7: the 4 V bank cell air filterefficiency range: F6,F7, F8,F9(EN779).


Dimension and parameter:

Size

Unit

592x592x292mm

Pack

 V

 4V

Media area

Sqm

 14.5

  Average Efficiency

  MERV

 16

  Normal Air flow rate

  m³/h

 3400

  Max. Air flow

  m³/h

 4250

  Initial pressure drop

  Pa

 120

  Recommended final pressure drop

  Pa

 300

  Dust retention capacity

  g

 600

Customized size is available .

Material and operation conditions:


Media

  Glass fiber and PP media

Sealant

PU Sealant

Frame

Plastic  frame

Media spacer

PU hot glue

Gasket

EVA, or Neoprene gasket

Efficiency

65-95%
MERV13.MERV14.MERV15.MERV16

Max temperature

70°c

Max humidity

100%
