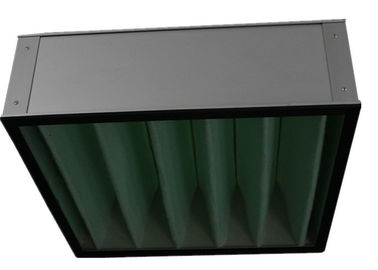

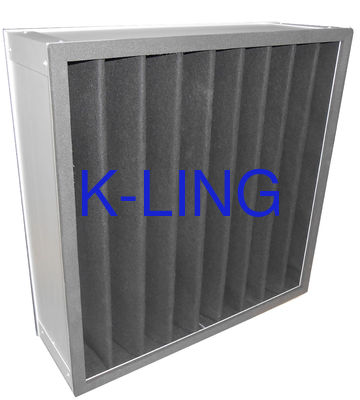

Industrial Glass Fiber V Bank Filter MERV16 For Ventilation AHU System
Quickly detail
Media: Lydall glass fiber
Frame: Plastic
Filter efficiency: MERV13,MERV14,MERV15,MERV16
Filter size: 592x592x292mm
Pack: 4 packs
Resistance:120pa
Performance:
Big media area, long time use life, big air volume, low resistance, light weight and easy install .
Applications area:
V- Cell air filter widely use for medium filtration in industry and commercial field.That is medium filter in clean room HVAC system.
Material
It adopts organic fiber filter materials with high strength and stable quality.
It can resist water vapor,
oil mist and erosion. It can be recyclable and do secondary use.
Frame
The frame is injected with SBS plastic with high strength, good elasticity and air impact resistance.
It is very suitable for ventilation environment of frequent changes in wind speed and pressure.
Advantage
There are some glues filling between the frame and the filter material with air proof, firm bonding
and good filtration efficiency.
Dimension and parameter:
|
Size
|
Unit
|
592x592x292mm
|
|
Pack
|
V
|
4V
|
|
Media area
|
Sqm
|
14.5
|
|
Average Efficiency
|
MERV
|
16
|
|
Normal Air flow rate
|
m³/h
|
3400
|
|
Max. Air flow
|
m³/h
|
4250
|
|
Initial pressure drop
|
Pa
|
75
|
|
Recommended final pressure drop
|
Pa
|
300
|
|
Dust retention capacity
|
g
|
600
|
Customized size is available .
Material and Operation Conditions:
|
Media
|
Glass fiber and PP media
|
|
Sealant
|
PU Sealant
|
|
Frame
|
Plastic /Galvanized/Aluminum/SUS frame
|
|
Media spacer
|
PU hot glue
|
|
Gasket
|
EVA, or Neoprene gasket
|
|
Efficiency
|
65-95% F6-F9
|
|
Max temperature
|
70°c
|
|
Max humidity
|
100%
|
Why you choose K-LING Company ?
Professional sales:
• We value every inquiry that you sent to us, ensure quick competitive offer.
• We cooperate with customer to bid tenders. Provide all necessory docuement.
• We are a sales team, with all techinical support from engineer team
Punctual delivery time:
• Production / inspection report provide before shipment
• Shipping notice or insurance for you when your goods is shipped.
After sales service:
• We respect your feed back after receive the goods.
• We provide one year warranty after goods arrive.
• We promise all spare parts available in lifetime use.
• We care of your complain within 48hours.
Payment Term:
T/T in advance, 30% before place the order, 70% when you see copy BL
Or 30% T/T in advance before place the order, 70% LC at sight.
