KeLing Purification Technology Company Limited
Advanced. High-Qulity. Reasonable.
Payment & Shipping Terms:
|Name:||FFU Fan Filter Unit||Other Name:||Fan Filter Unit|
|Mateial:||Stainless Steel 304||Purification:||Class100-1000|
|Air Speed:||0.45m/s||Noise:||Less Than 57dB|
|Usage:||Ss304 Cleanroom Ffu||Medium Material:||Fiberglass|

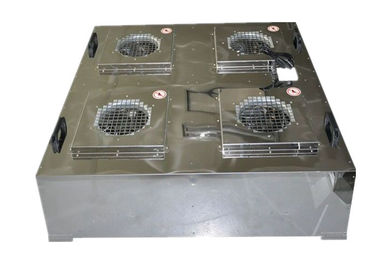

304 Stainless Steel Filter Fan Unit FFU With ULPA Air Filter Class 100 - 10000
Internal Size: 1175x575x350mm
Purification rank: Class100-10000
HEPA filter efficiency: email@example.com
HEPA filter size : 1220x610x69
Air speed :0.3-0.6m/s
It is designed to provide filtered laminar air flow over a specific area, the unit integrates a high efficiency fan together with a HEPA/ULPA Filter. the FFU in contaminated air from the top of the module and exhausts filtered clean air vertically in a unidirectional air stream at its base.
conventional clean room construction, soft wall or hard wall clean room,
1: Light weight, corrosion-resistance construction is completely smooth and clean room –compatible.
2: Proprietary construction technology creates better air flow uniformity across the entire filter face for superior laminar flow band protection.
3: Standard blower speed controller allows for easy adjusting of the FFU speed controller. equipped with overheating protection inside.
4:it is operates at low noise and power consumption levels
1: Plastic Handle 2: Fan 3: HEPA filter 4:Pre-filter 5:Control panel 6:Power cable
External size (mm)
Steel plate with painting/galvanized steel/aluminum/stainless steel
Air velocity (m/s)
1: Power on/off 2: Control air speed up/down
99.995% @ 0.3um
<220pa @ 0.45m/s
Customer’s design is available.
All of equipment is individually factory tested for safety and performance in accordance with international Standards. Each unit is shipped with a documentation outlining the tests undertaken and the units individual results for each unit.
Factory test include:
-- functional test and visual inspection
-- electrical safety tests
-- air velocity testing
-- purification rank test (if need)
Our equipment is warranty for 1 year excluding consumable parts and accessories.
All equipment is shipped with a comprehensive use’s manual complete with a report documenting all test procedures.
Additional IO/OQ/GMP document is available upon request.
Contact our sales representative for specific warranty details or document request.
Consumable parts illustration:
1: Pre-filter: each one should be replacement in each 6 month, but it can refresh no more three times.
2: HEPA filter: each one should be replacement in each half and one years.
Why you choose K-LING Company ?
• We value every inquiry that you sent to us, ensure quick competitive offer.
• We cooperate with customer to bid tenders. Provide all necessory docuement.
• We are a sales team, with all techinical support from engineer team
Punctual delivery time:
• Production / inspection report provide before shipment
• Shipping notice or insurance for you when your goods is shipped.
After sales service:
• We respect your feed back after receive the goods.
• We provide one year warranty after goods arrive.
• We promise all spare parts available in lifetime use.
• We care of your complain within 48hours.
T/T in advance, 30% before place the order, 70% when you see copy BL
Or 30% T/T in advance before place the order, 70% LC at sight.
