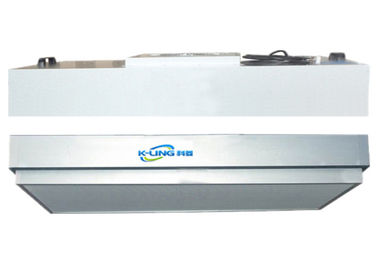

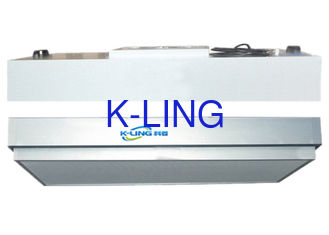

Power Coated Steel HEPA Fan Filter Unit For Clean Room And Pharmacy 220V / 50HZ

China Power Coated Steel HEPA Fan Filter Unit For Clean Room And Pharmacy 220V / 50HZ supplier

Large Image :  Power Coated Steel HEPA Fan Filter Unit For Clean Room And Pharmacy 220V / 50HZ

Product Details:

Place of Origin: CHINA
Brand Name: K-LING
Certification: CE,
Model Number: KEL-FFU1200S

Payment & Shipping Terms:

Minimum Order Quantity: 1PCS
Price: NEGOATION
Packaging Details: PLOWOOD PACKING
Delivery Time: 8 Workingdays
Payment Terms: Ex works/FOB/CIF/ CNF
Supply Ability: 1000Sets/month
Contact Now
Detailed Product Description

Power Coated Steel HEPA Fan Filter Unit For Clean Room And Pharmacy 220V / 50HZ



Quicky detail

Internal Size: 1225x1225x615mm
Purification rank: Class100-10000
HEPA filter efficiency:99.99%- 99.999%@0.3um
HEPA filter size : 1220x1220x69
Air speed :0.3-0.6m/s
Power: 220V/50HZ


Introduction:


1. Nice appearance , human centered design
Add Stainless handle, easy installation and delivery, perpendicular design.
2. High performance and low noise fans
Adopting Energy-saving Multi-blade turbine fan, lower noise, Pressure spread evenly,
outlet air velocity evenly and stable, low consumption, low running cost, service life
can reach to longer than 80 thousand hours.
3. Light, thin shape
Without filter net, thickness of shape is 23cm, 25KG weight, application in low
ceiling are also available.
4. Flexible, diversified design
Except for standard items, custom made is available. Such as choosing kinds of filter
 net and materials of shell.
5. Concerning, convenient design
Pedals are designed in the body, which makes it convenient to install and repair.
6. Premium Current-averaging design of the inside
Ensures deviation of the blowing side lower than ±10%



Applications:

conventional clean room construction, soft wall or hard wall clean room,


Operating features:

1: Light weight, corrosion-resistance construction is completely smooth and clean room –compatible.
2: Proprietary construction technology creates better air flow uniformity across the entire filter face for superior laminar flow band protection.
3: Standard blower speed controller allows for easy adjusting of the FFU speed controller. equipped with overheating protection inside.
 4:it is operates at low noise and power consumption levels


Illustration:

1: Plastic Handle  2: Fan  3: HEPA filter    4:Pre-filter  5:Control panel  6:Power cable



Technical Parameter:



 MODEL

KEL-FFU1225S

External size (mm)
(WXDXH)

1225X1225X350mm

 Material

Steel plate with painting/galvanized steel/aluminum/stainless steel

 Air flow(m3/h)

2400m3/h

Air velocity (m/s)

  0.3/0.35/0.4/0.45/0.5m/s

Pressure(pa)

    97(10mmAq)

Control system

1: Power on/off   2: Control air speed up/down

HEPA FILTER

Size(mm)

1220x1220x69mm

Efficiency(%)

         99.995% @ 0.3um

Pressure (pa)

<220pa @ 0.45m/s

 Power supply

     220V/110V ,50/60HZ

Power (w)

172Wx2pcs

     Noise (Db)

      57db


Customer’s design is available.


Factory test:

All of equipment is individually factory tested for safety and performance in accordance with international Standards. Each unit is shipped with a documentation outlining the tests undertaken and the units individual results for each unit.


Factory test include:

-- functional test and visual inspection
-- electrical safety tests
-- air velocity testing
-- purification rank test (if need)


Warranty:

Our equipment is warranty for 1 year excluding consumable parts and accessories.
All equipment is shipped with a comprehensive use’s manual complete with a report documenting all test procedures.
Additional IO/OQ/GMP document is available upon request.
Contact our sales representative for specific warranty details or document request.


Consumable parts illustration:

1: Pre-filter: each one should be replacement in each 6 month, but it can refresh no more three times.

2: HEPA filter: each one should be replacement in each half and one years.

Why you choose K-LING Company ?
Professional sales:
• We value every inquiry that you sent to us, ensure quick competitive offer.
• We cooperate with customer to bid tenders. Provide all necessory docuement.
• We are a sales team, with all techinical support from engineer team

Punctual delivery time:
• Production / inspection report provide before shipment
• Shipping notice or insurance for you when your goods is shipped.
After sales service:
• We respect your feed back after receive the goods.
• We provide one year warranty after goods arrive.
• We promise all spare parts available in lifetime use.
• We care of your complain within 48hours.


Payment Term:

 T/T in advance, 30% before place the order, 70% when you see copy BL
Or 30% T/T in advance before place the order, 70% LC at sight.
