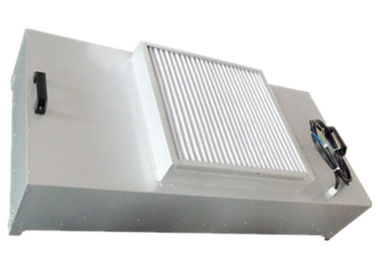

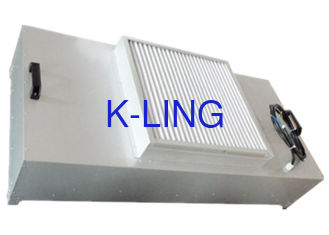

Industrial EBM Fan Air Clean Unit 220V 50HZ , High Capacity Hepa Filter Unit

Industrial EBM Fan Air Clean Unit 220V 50HZ , High Capacity Hepa Filter Unit
Industrial EBM Fan Air Clean Unit 220V 50HZ , High Capacity Hepa Filter Unit Industrial EBM Fan Air Clean Unit 220V 50HZ , High Capacity Hepa Filter Unit

Large Image :  Industrial EBM Fan Air Clean Unit 220V 50HZ , High Capacity Hepa Filter Unit

Product Details:
Place of Origin: CHINA
Brand Name: K-LING
Certification: CE,
Model Number: KEL-FFU915
Payment & Shipping Terms:
Minimum Order Quantity: 1PCS
Price: NEGOATION
Packaging Details: PLOWOOD PACKING
Delivery Time: 8 WORKING DAYS
Payment Terms: Ex works/FOB/CIF/ CNF
Supply Ability: 1000Sets/month
Detailed Product Description
Name: EBM Fan Air Clean Unit Other Name: High Capacity Filter
Porosity: 0.3u Dimension: 46.23X22.64X9.06In
Medium Material: Fiberglass Noise: <53dB
Usage: Eliminate Odor Color: White
Air Velocity: 600-1800M3/H Frame: Alluminum
High Light:

hepa fan filter unit

,

clean room air filter

Industrial EBM Fan Air Clean Unit 220V 50HZ , High Capacity Hepa Filter Unit



Quicky Detail

Internal Size: 920x615x615mm
Purification rank: Class100-10000
HEPA filter efficiency:99.99%- 99.999%@0.3um
HEPA filter size : 915 x610x69mm
Air speed :0.3-0.6m/s
Power: 220V/50HZ


Introduction:


It adopts EBM fan with low noise and high efficiency which AIRTECH JAPAN especially designed for

FFU.It has the feature of energy-saving with low carbon,no mintenance,high reliability and long life.
 Optimized capacity and distributaries guided whirl tube reduce the overall height and enhance the
uniformity of air blow-out.Large suitable interval of air velocity and volume(see the specification graph)can satisfy the requi-rements of different types of clean environment.It is also suitable for use where high air velocity isrequired for Class A Area of biology and pharmacy.It adopts low resistivity filter that can provide 75-120Pa excess pressure outside the product under rated airflow,which meets the need of high resistivity of return air in the clean room.Multi-optional and flexible layout



Applications:


As demands of cleanliness with process of semiconductor or LCD manufacturer, you are able

to choose the fittest filter of particle diameter, dust collection efficiency, etc. If you need the filter without B(Boron), We recommend PTFE(Poly Tetra Fluoro Ethylene)filter , that is made of material of membrane.If you must avoid DOP for testing filter, please inform us to test with silica without water or atmospheric air.



Operating features:

1: Light weight, corrosion-resistance construction is completely smooth and clean room –compatible.
2: Proprietary construction technology creates better air flow uniformity across the entire filter face for superior laminar flow band protection.
3: Standard blower speed controller allows for easy adjusting of the FFU speed controller. equipped with overheating protection inside.
 4:it is operates at low noise and power consumption levels


Illustration:

1: Plastic Handle  2: Fan  3: HEPA filter    4:Pre-filter  5:Control panel  6:Power cable


Technical Parameter:


 MODEL

  KEL-FFU920

External size (mm)
(WXDXH)

920x615x350mm

 Material

Steel plate with painting/galvanized steel/aluminum/stainless steel

 Air flow(m3/h)

 800m3/h

Air velocity (m/s)

   0.3/0.35/0.4/0.45/0.5m/s

Pressure(pa)

    97(10mmAq)

Control system

1: Power on/off   2: Control air speed up/down

HEPA FILTER

Size(mm)

915X610X69

Efficiency(%)

  99.995% @ 0.3um

Pressure (pa)

<220pa @ 0.45m/s

 Power supply

  220V/110V ,50/60HZ

Power (w)

115w

     Noise (Db)

57db



Customer’s design is available.
Industrial EBM Fan Air Clean Unit 220V 50HZ , High Capacity Hepa Filter Unit 0

Factory test:

All of equipment is individually factory tested for safety and performance in accordance with international Standards. Each unit is shipped with a documentation outlining the tests undertaken and the units individual results for each unit.


Factory test include:

-- functional test and visual inspection
-- electrical safety tests
-- air velocity testing
-- purification rank test (if need)


Warranty:

Our equipment is warranty for 1 year excluding consumable parts and accessories.
All equipment is shipped with a comprehensive use’s manual complete with a report documenting all test procedures.
Additional IO/OQ/GMP document is available upon request.
Contact our sales representative for specific warranty details or document request.


Consumable parts illustration:

1: Pre-filter: each one should be replacement in each 6 month, but it can refresh no more three times.

2: HEPA filter: each one should be replacement in each half and one years.

Why you choose K-LING Company ?
Professional sales:
• We value every inquiry that you sent to us, ensure quick competitive offer.
• We cooperate with customer to bid tenders. Provide all necessory docuement.
• We are a sales team, with all techinical support from engineer team

Punctual delivery time:
• Production / inspection report provide before shipment
• Shipping notice or insurance for you when your goods is shipped.
After sales service:
• We respect your feed back after receive the goods.
• We provide one year warranty after goods arrive.
• We promise all spare parts available in lifetime use.
• We care of your complain within 48hours.


Payment Term:

 T/T in advance, 30% before place the order, 70% when you see copy BL
Or 30% T/T in advance before place the order, 70% LC at sight.


Industrial EBM Fan Air Clean Unit 220V 50HZ , High Capacity Hepa Filter Unit 1
