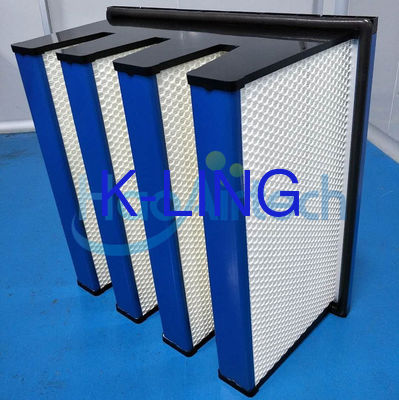

Secondary V Cell Industrial Air Filters Fiberglass Air Filter With ABS Plastic Frame

Certification
China KeLing Purification Technology Company certification
China KeLing Purification Technology Company certification
Customer Reviews
Keling had successfully supplied us following products on 25 Oct.2017 against PO NO.M170807; Their supplied Air Filters have been working satisfactorily since installation.We are satisfied with their products.

—— SIMPOR PHARMA

Since we do coopertae with them, they always offer good quality and keep the delivery on time to us, we do appreicated for their kind support !

—— Nasir

This is to certify that we bought U type air shower tunnel, Air Shower and HEPA filter, Secondary air filter ,perfilter for our project from KeLing Purification Technology Co. Ltd, 3C01 Tian Feng Commerce Square, Mid Building, No. 133, Baiyun AV, Baiyun Disctrict , Guangzhou , GuangDong, China against Contract No: 2014/4119005942 in October 22, 201

—— IATEC,Argentina

Product arrived faster than expected and they sent something special in addition to what I ordered. Nice people and fast service!

—— Mohammed Saad

I'm Online Chat Now

Secondary V Cell Industrial Air Filters Fiberglass Air Filter With ABS Plastic Frame

Secondary V Cell Industrial Air Filters Fiberglass Air Filter With ABS Plastic Frame
Secondary V Cell Industrial Air Filters Fiberglass Air Filter With ABS Plastic Frame Secondary V Cell Industrial Air Filters Fiberglass Air Filter With ABS Plastic Frame

Large Image :  Secondary V Cell Industrial Air Filters Fiberglass Air Filter With ABS Plastic Frame

Product Details:
Place of Origin: CHINA
Brand Name: K-LING
Certification: EN799
Model Number: KEL-VC7
Payment & Shipping Terms:
Minimum Order Quantity: 1PCS
Price: NEGOATION
Packaging Details: PLOWOOD PACKING
Delivery Time: 8 WORKING DAYS
Payment Terms: Ex works/FOB/CIF/ CNF
Supply Ability: 2000PCS/month
Detailed Product Description
Name: V Cell Filter Efficiency: F6/F7/F8/F9
Media: Glass Fibre Frame: ABS Frame
Pack: 4 Pack Spacer: 50mm Spacer Line
Dimension: 592x592x292mm Porosity: 0.5um
Humidity: 100% After-sales Service Provided: No After -sales Service
High Light:

industrial air filter

,

air conditioning air filter

Secondary V Cell Industrial Air Filters Fiberglass Air Filter With ABS Plastic Frame



Quickly Detail

Media:  Glass fibre media
Frame: ABS Plastic
Filter efficiency: F7
Filter size: 592x592x292mm
Packs : 3V
Resistance:<30-50pa


Introduction :

the Secondary V cell air filter has good filtration effect in removing small diameter’s dust. Its efficiency can reach 65%-95% 0.3um. This filter’s air volume can be 4200m3/h and suitable for big air volume’s need. It can reduce the installation area and time compared with other same size’s Secondary filter. Choosing big Filtration area ensures low resistance at the same time save charge.





Applications area:



 Secondary V Cell air filter widely use for medium filtration in industry and commercial field.

 That is medium filter in clean room HVAC system.



Characteristics:

1: The Secondary V Cell air filter use for filter more than 0.5um particles and dust in HVAC air conditional system ,that particular design for HVAC project at low resistance with big air volume.

 2: The filter media adopt the pp media or ultra-thin glass fiber with high dust holding capacity , the hot-melt glue spacing each pleats in regular so that achieve high dust volume , all of the media area can be used in completely .

 3: The polypropylene plastic frame can be Incineration when use out .

 4: the filter with flange can replace by pocket air filter.

 The sealant around the media so that the air filter without any air leaking

5: the secondary V cell air filter efficiency range: F6,F7, F8,F9(EN779).



Dimension and parameter:

Dimension

(W*H*D)

 (mm)

Pack

Air flow

(M3/h)

Media area

(m2)

Holding dust(g)

Primary resistance

(by0.5m/s)

Final

resistance

Efficiency

(0.3um)

287X287X292

 2

900

4.63

280

〈60

250-300

F6

〈80

300-400

F7

〈100

300-400

F8

〈120

400-450

F9

592X592X292

3

2850

15

900

〈60

250-300

F6

〈80

300-400

F7

〈100

300-400

F8

〈120

400-450

F9

592X592X292

4

3800

20

1200

〈60

250-300

F6

〈80

300-400

F7

〈100

300-400

F8

〈120

400-450

F9

592X490X292

4

3100

16.44

1000

〈60

250-300

F6

〈80

300-400

F7

〈100

300-400

F8

〈120

400-450

F9

592X287X292

4

1750

9.26

550

〈60

250-300

F6

〈80

300-400

F7

〈100

300-400

F8

〈120

400-450

F9

Customized size is available .


Material and operation conditions:


Media

 Glass fiber Media

Plastic frame

592X592X292mm

Aluminum Frame

592X592X292mm

Frame

Plastic /Galvanized/Aluminum/SUS frame

Packs

3pack

Efficiency

45-95% F5-F8

Max temperature

120°c

Max humidity

100%
