Class 100 Portable Softwall Clean Room Booth For Semiconductor Industry

China Class 100 Portable Softwall Clean Room Booth For Semiconductor Industry supplier

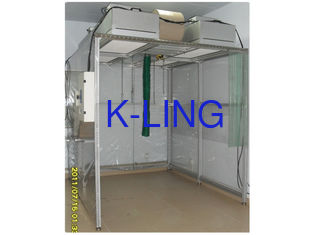

Large Image :  Class 100 Portable Softwall Clean Room Booth For Semiconductor Industry

Product Details:

Place of Origin: China
Brand Name: K-LING
Certification: CE,
Model Number: KEL-LFB5000

Payment & Shipping Terms:

Minimum Order Quantity: 1SQM
Price: NEGOATION
Packaging Details: PLOWOOD PACKING
Delivery Time: 8 WORKING DAYS
Payment Terms: Ex works/FOB/CIF/ CNF
Supply Ability: 2000sqm/month
Detailed Product Description



Class 100 Portable Softwall Clean Room Booth For Semiconductor Industry




 Quickly detail


 Extenral size :5000x5000x2596mm
 Internal Size: 4900x4900x2205mm
 Purification rank: Class100-10000
 HEPA filter efficiency: 99.999%@0.3um
 Laminar flow: vertical
 Air speed :0.3-0.6m/s
 Power: 220V/50HZ


Introduction:


Softwall clean room booth is a  Simplified Clean Room that is a local air purification equipment to provide high- clean environment., is a clean room which the most quickly and easily create. laminar flow booth main consist of cabinet, fan, prefilter and HEPA filter, damping layer, lamps and other components. It can be suspended, but also can be ground support, compact structure,easy to use. Can use single or multiple connections to compose of banded clean area.


Applications:

Food industry, aerospace, life sciences, biotechnology, medical devices, plastic injection module, electronics assembly or hospital pharmacy


Operating features

1: The ceiling enables flexible placement of fan filter unit, the empty bays cover by powder coated steel panels.
2: the construction utilizing full welded, reinforced, steel tubular sections. The frame is finished with an abrasion-resistance oven-baked powder coat, it is free-standing not require any suspending ceiling supports
3: the PVC anti-static curtain door allowing for easy passage of material and personnel in and out of the clean area. The curtain terminated at a specific distance above the floor to allow for exhaust of clean air out of the clean room.
4: Control box can rapid start up the fan filter unit and lighting.
5: Fan filter unit is the energy efficient external rotor motor design reduces operating costs and has extremely low noise and vibration levels, improving the working conditions in the clean room.
6: the high quality mini-pleats HEPA filter utilizing an improved mini-pleated separation technique to maximize surface area improves efficiency and extends the filter life.

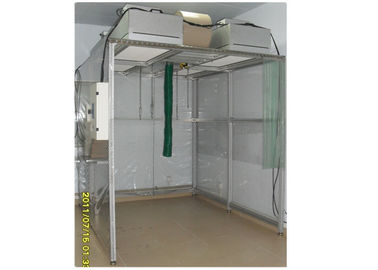

Illustration:

1:  The frame is steel cube with milk powder coated.
2:  M support leg
3:  The wall made from clarity synthetic glass.
4:  FFU control box.
5:  FFU with HEPA filter and pre-filter
6:  Purification lamp
7:  PVC strip curtain
8:  Purification rank class100-1000 (FS209E Stander)


  Technical Parameter:



MODEL

KEL-LFB5000

Ex size (mm)
(W*D*H)

5000X5000X2596mm

In size (mm)

4900x4900x2205mm

Purification rank

Class10-300,000(FS209E USA)

HEPA filter

Efficiency : 99.99% @ 0.3um - 99.999% @ 0.12um (MPPS)

Pre-filter

Efficiency : 85% @ 5um

Control system

 PC control system / promised speed by control box

Pressure Gauge

 American Dywer pressure

Noise

<50-55 dB  (test point distance is 1m)

 Air velocity
(m3/h)

    0.2-0.5m/s Adjustable   (test point distance is 30cm)

Frame material

 stainless steel/steel with power coated/Cast aluminum profile

Wall frame

Tempered glass / PVC anti-static curtain (option)

Fan

EBM Fan /Taiwan fan/ Domestic fan (option)

Power suppler

    AC110/220v  50HZ/60HZ


Customer’s design is available.



Applications:

Food industry, aerospace, life sciences, biotechnology, medical devices, plastic injection module, electronics assembly or hospital pharmacy


Why you choose K-LING Company ?



1. Superior Quality

Quality is our biggest concern. We are always striving for quality improvement from the first beginning.

2. Competitive Price

Competitive price is one of our advantages compared to
others. We are always working hard to lower down the cost
while still improve or keep the quality.

3. Customer first service

Focus on customization, we provide the free design by our designers. Reply with 24 hours if any questions and pack in time for delivery.

4. All-in-one convenience

We are dedicated to give you all-in-one service. You just tell us your demand, then we will take care of your demand, design drawings, build the clean room and provide you best after sale.


5. Product diversification

We are not only undertake clean room construction, clean  booth construction, etc., but also an agent to export accessories from other factory. You could always choice the suitable products in our company.


Payment Term:



 T/T in advance, 30% before place the order, 70% when you see copy BL

Or 30% T/T in advance before place the order, 70% LC at sight.
